LTN5Yp HD

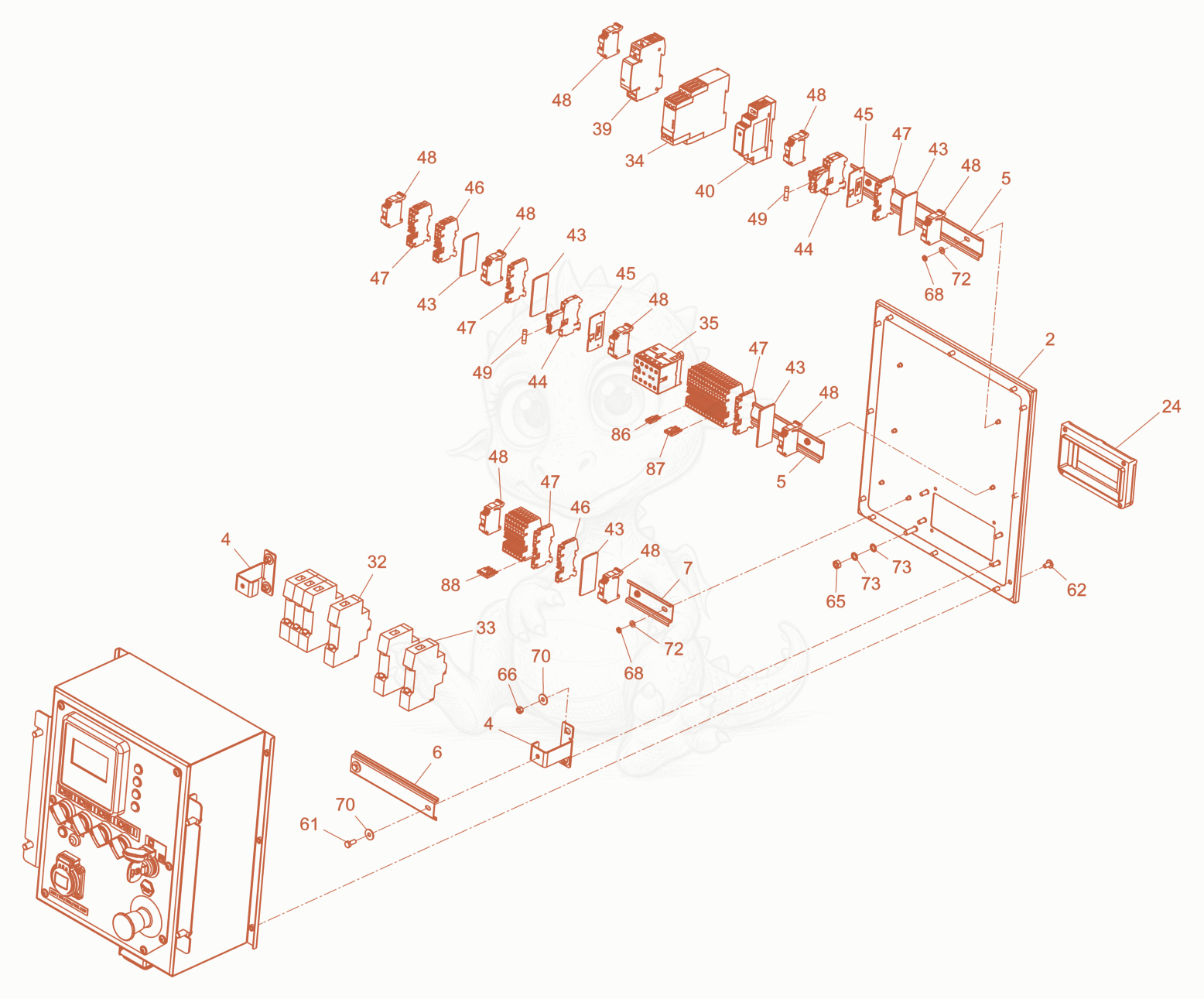

LTN5YPHD control panel LTN5Y HD Diagram

Exploded parts diagram of the control panel LTN5Y HD of a Wacker Neuson LTN5YPHD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100007536Not stocked
    Rear panel×1
  • 55100007455Not stocked
    Holder×2
  • 65100007236Not stocked
    carrier rail×2
  • 75100007237Not stocked
    carrier rail×2
  • 85100007238Not stocked
    carrier rail×1
  • 245100007244Not stocked
    Inspection window×1
  • 325100007250Not stocked
    circut reaker×4
  • 335100007251Not stocked
    circuit breaker×2
  • 345100007252Not stocked
    Insulation guard×1
  • 355100007253Not stocked
    contactor×1
  • 395100007256Not stocked
    Installation contactor×1
  • 405100007257Not stocked
    converter×1
  • 435100007259Not stocked
    Intermediate plate×5
  • 445100007260Not stocked
    fuse clip×3
  • 455100007261Not stocked
    Intermediate plate×2
  • 465100007262Not stocked
    Protective conductor clamp×3
  • 475100007263Not stocked
    through terminal×27
  • 485100007264Not stocked
    End plate×9
  • 495100007431Not stocked
    Fuse×3
  • 615100007057Not stocked
    hexagonal head cap screw×2
  • 625100007265Not stocked
    Oval head screw×12
  • 655100006560
    $0.62
    Nut - 5100006560×3
  • 665100006878
    $0.75
    Hexagon nut VM5 - 5100006878×8
  • 685100007267Not stocked
    Hexagon nut×6
  • 705100007078Not stocked
    washer×6
  • 725100007062Not stocked
    washer×14
  • 735100007268Not stocked
    Fan type lock washer×6
  • 865100007270Not stocked
    Bridge 2 pin×1
  • 875100007271Not stocked
    Bridge 3 pin×1
  • 885100007272Not stocked
    Bridge 4 pin×1
