LTN5Yp HD

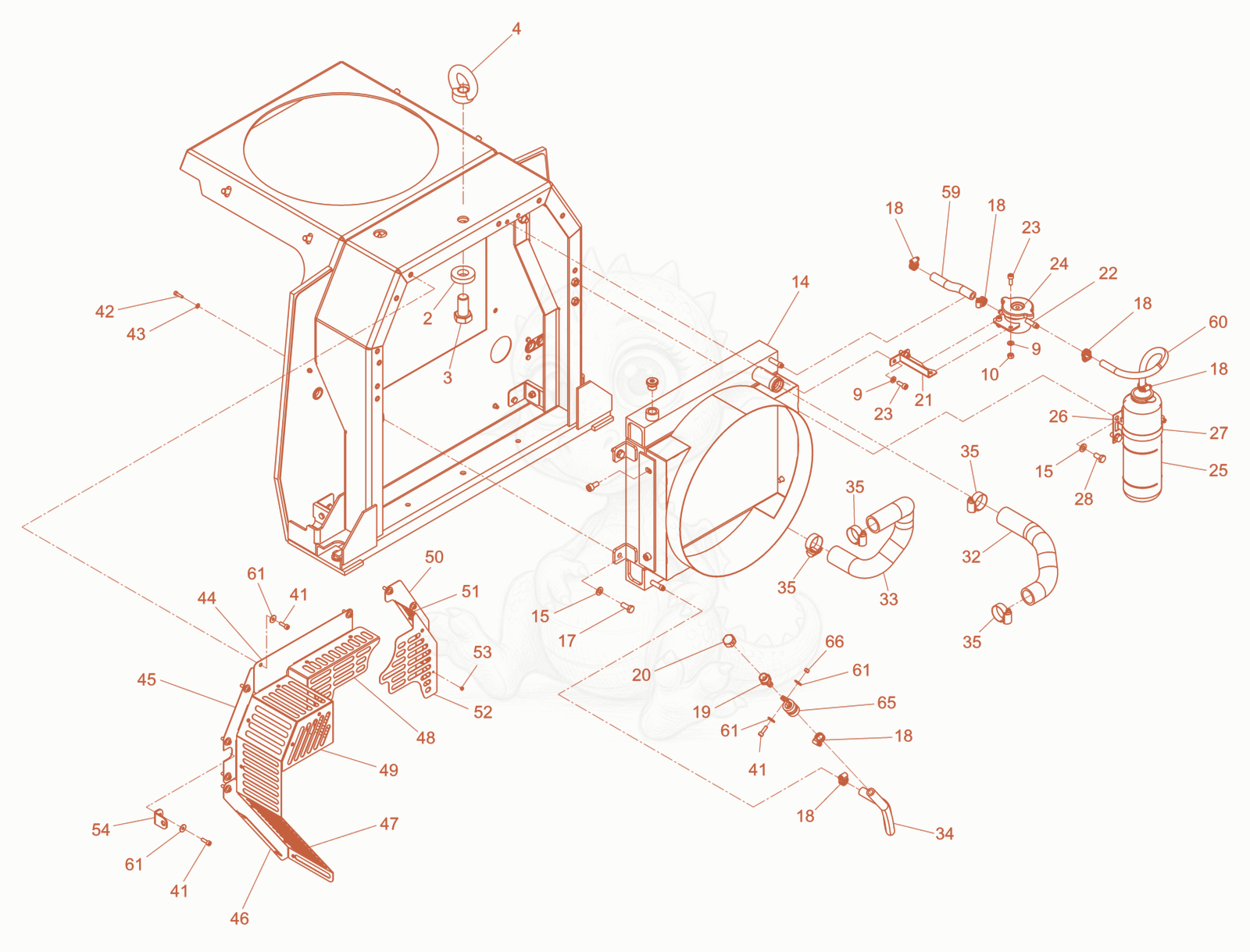

LTN5YPHD Crane lifting eye Diagram
- 25100007034Not stockeddisc×1
- 35100007035Not stockedhexagonal head cap screw×1
- 45100007036Not stockedjack ring×1
- Washer - 5100006546×4
- Nut - 5100006542×2
- 145100007040Not stockedradiator×1
- Washer - 5100006553×6
- Hexhead screw - 5100006559×4
- Worm drive hose clip 10-16mm - 5100006527×6
- 195100007041Not stockedscrew connection×1
- 205100007042Not stockedplug (threaded)×1
- 215100007508Not stockedHolder×1
- 225100007044Not stockedfiller neck×1
- Cyl. Head screw - 5100006626×4
- 245100007045Not stockedtank cover×1
- 255100007046Not stockedexpansion tank×1
- 265100007047Not stockedholder×1
- 275100007048Not stockedclamp×1
- Hexhead screw - 5100006558×2
- 325100007052Not stockedpipe×1
- 335100007053Not stockedpipe×1
- 345100007054Not stockedfuel hose×1
- 355100007055Not stockedhose clamp×4
- Cyl. Head screw - 5100006695×10
- 425100007357Not stockedCheese head screw×2
- 435100007062Not stockedwasher×2
- 445100007509Not stockedHolder×1
- 455100007510Not stockedHolder×1
- 465100007511Not stockedHolder×1
- 475100007512Not stockedCovering left×1
- 485100007513Not stockedCovering center×1
- 495100007514Not stockedCovering left×1
- 505100007515Not stockedHolder×1
- 515100007516Not stockedCovering right×1
- 525100007517Not stockedCovering right×1
- 535100007072Not stockedblind rivet×15
- 545100007518Not stockedAngle×1
- 595100007076Not stockedfuel hose×1
- 605100007077Not stockedhose×1
- 615100007078Not stockedwasher×12
- Clamps - 5100006694×1
- Hexagon nut VM5 - 5100006878×1
