LTN5Yp HD

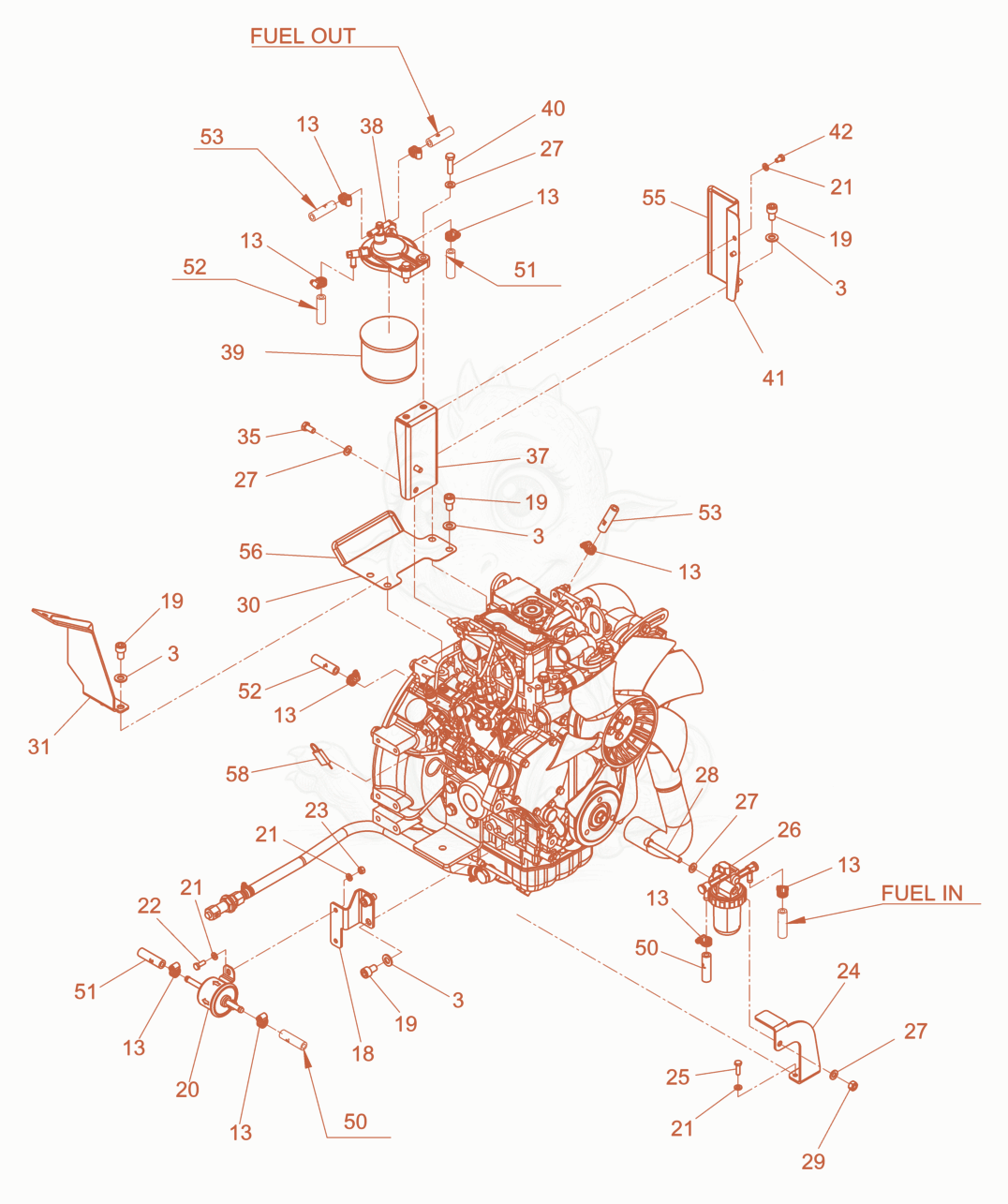

LTN5YPHD engine cpl. Diagram

Exploded parts diagram of the engine cpl. of a Wacker Neuson LTN5YPHD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100006551
    $1.64
    Washer - 5100006551×21
  • 135100006527
    $9.39
    Worm drive hose clip 10-16mm - 5100006527×12
  • 185100007521Not stocked
    Holder×1
  • 195100006624
    $7.47
    Cyl. Head screw - 5100006624×6
  • 205100007095Not stocked
    fuel pump×1
  • 215100006546
    $0.35
    Washer - 5100006546×12
  • 225100006539
    $2.12
    Hexhead screw - 5100006539×4
  • 235100006542
    $1.60
    Nut - 5100006542×4
  • 245100007546Not stocked
    Holder×1
  • 255100006529
    $2.12
    Hexhead screw - 5100006529×2
  • 265100007097Not stocked
    fuel filter×1
  • 275100006553
    $0.88
    Washer - 5100006553×12
  • 285100006881
    $4.25
    Cheese head screw M8x70 - 5100006881×1
  • 295100006543
    $3.00
    Nut - 5100006543×1
  • 305100007547Not stocked
    Holder×1
  • 355100006558
    $3.76
    Hexhead screw - 5100006558×2
  • 375100007523Not stocked
    Holder×1
  • 385100007105Not stocked
    holder×1
  • 395100007106Not stocked
    fuel filter×1
  • 405100006541
    $6.37
    Hexhead screw - 5100006541×2
  • 415100007548Not stocked
    Holder×1
  • 425100006528
    $2.12
    Hexhead screw - 5100006528×2
  • 505100007336Not stocked
    Fuel hose×1
  • 515100007337Not stocked
    Fuel hose×1
  • 525100007338Not stocked
    Fuel hose×1
  • 535100007339Not stocked
    Fuel hose×1
  • 555100007341Not stocked
    Profiled joint×1
  • 565100007342Not stocked
    Profiled joint×1
  • 585100007421Not stocked
    wire seal×1
