LTN5Yp HD

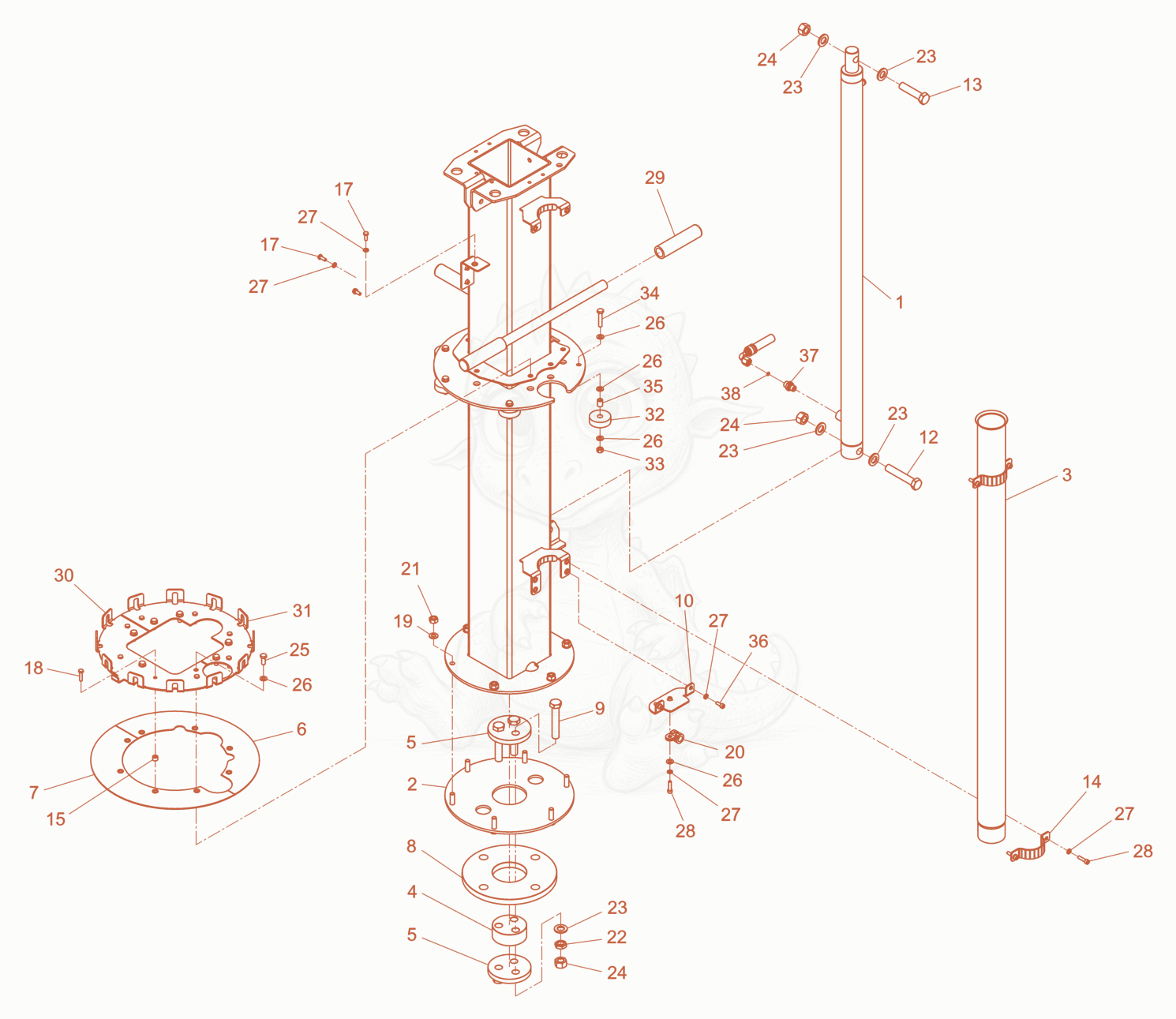

LTN5YPHD light pole mounting Diagram

Exploded parts diagram of the light pole mounting of a Wacker Neuson LTN5YPHD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100007184Not stocked
    hydraulic cylinder×1
  • 25100007174Not stocked
    plate×1
  • 35100007525Not stocked
    Guide tube×1
  • 45100007175Not stocked
    bolt×1
  • 55100007176Not stocked
    plate×2
  • 65100007526Not stocked
    Cover plate×1
  • 75100007527Not stocked
    Cover plate×1
  • 85100007173Not stocked
    Plate×1
  • 95100007179Not stocked
    hexagonal head cap screw×3
  • 105100007180Not stocked
    holder×1
  • 125100007187Not stocked
    hexagonal head cap screw×1
  • 135100007188Not stocked
    hexagonal head cap screw×1
  • 145100007528Not stocked
    Clamp×2
  • 155100007169Not stocked
    sleeve×8
  • 175100006539
    $2.12
    Hexhead screw - 5100006539×3
  • 185100007163Not stocked
    hexagonal head cap screw×8
  • 195100006551
    $1.64
    Washer - 5100006551×6
  • 205100006694
    $18.37
    Clamps - 5100006694×1
  • 215100006544
    $6.11
    Nut - 5100006544×6
  • 225100007178Not stocked
    hexagon nut×3
  • 235100006552
    $4.82
    Washer - 5100006552×7
  • 245100007177Not stocked
    locknut×5
  • 255100006559
    $4.25
    Hexhead screw - 5100006559×7
  • 265100006553
    $0.88
    Washer - 5100006553×26
  • 275100006546
    $0.35
    Washer - 5100006546×10
  • 285100007134Not stocked
    cheese head screw×5
  • 295100007167Not stocked
    handle×3
  • 305100007529Not stocked
    Plate×1
  • 315100007530Not stocked
    Plate×1
  • 325100007166Not stocked
    disc×6
  • 335100006543
    $3.00
    Nut - 5100006543×6
  • 345100007162Not stocked
    hexagonal head cap screw×6
  • 355100007168Not stocked
    sleeve×6
  • 365100006626
    $2.12
    Cyl. Head screw - 5100006626×2
  • 375100007122Not stocked
    screw connection×1
  • 385100007190Not stocked
    screen×1
