LTN5YPHD frame with axle suspension Diagram

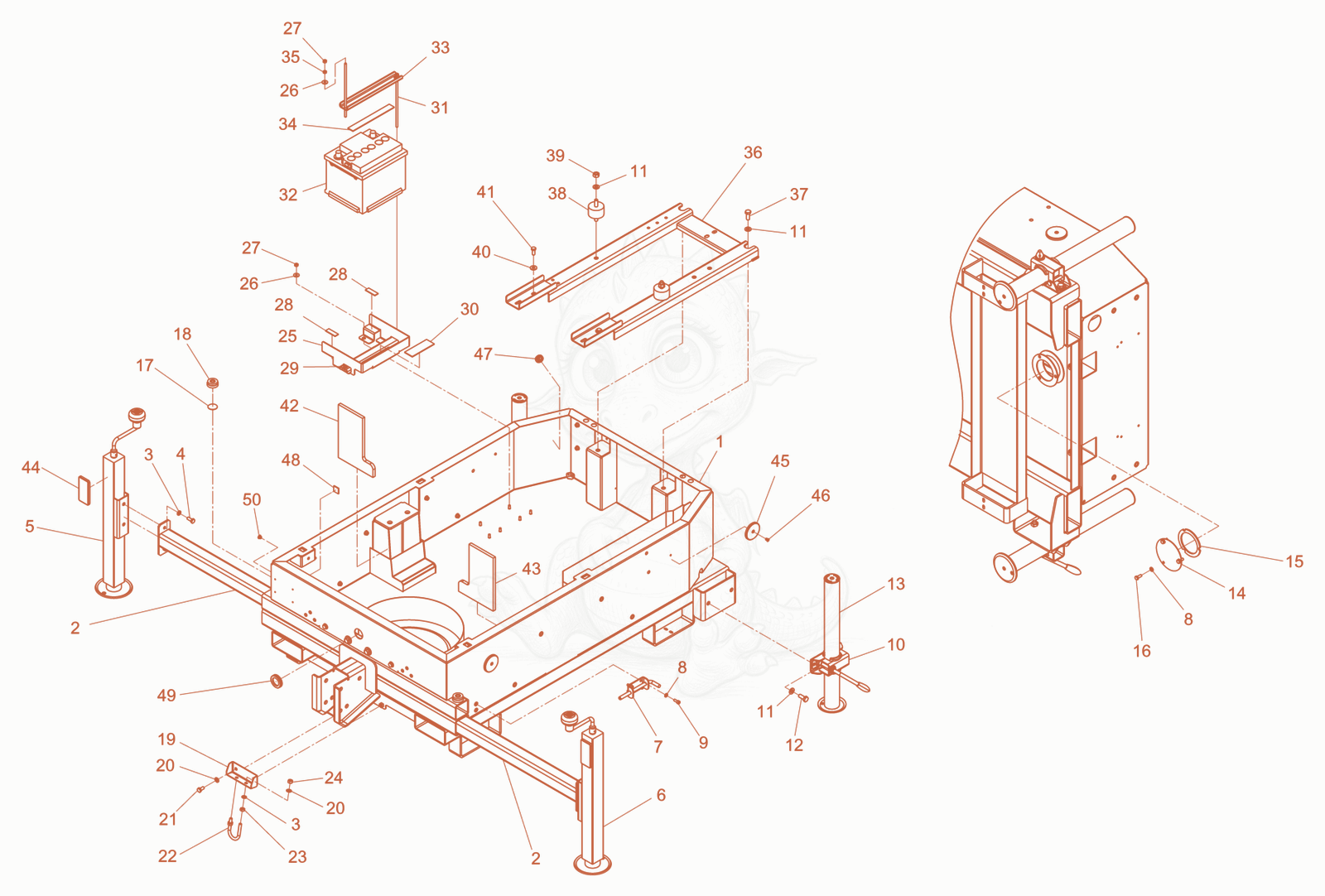

Exploded parts diagram of the frame with axle suspension of a Wacker Neuson LTN5YPHD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100007494Not stocked
    Frame cpl.×1
  • 25100007299Not stocked
    Brace×2
  • 35100007319Not stocked
    Lock washer×6
  • 45100007484Not stocked
    Hexagonal head cap screw×4
  • 55100007300Not stocked
    lifting jack×1
  • 65100007301Not stocked
    lifting jack×1
  • 75100007171Not stocked
    spring bolt×2
  • 85100006546
    $0.35
    Washer - 5100006546×11
  • 95100006626
    $2.12
    Cyl. Head screw - 5100006626×8
  • 105100007010Not stocked
    shackle×2
  • 115100006551
    $1.64
    Washer - 5100006551×8
  • 125100007485Not stocked
    Hexagonal head cap screw×4
  • 135100007302Not stocked
    support leg×2
  • 145100007495Not stocked
    Cover×1
  • 155100007239Not stocked
    Profiled joint×0.25
  • 165100006539
    $2.12
    Hexhead screw - 5100006539×3
  • 175100007304Not stocked
    Adhesive tape×2
  • 185100007305Not stocked
    spirit level×2
  • 195100007496Not stocked
    Holder×1
  • 205100006553
    $0.88
    Washer - 5100006553×4
  • 215100006558
    $3.76
    Hexhead screw - 5100006558×2
  • 225100007326Not stocked
    U-bolt×1
  • 235100006562
    $1.99
    Nut - 5100006562×2
  • 245100006543
    $3.00
    Nut - 5100006543×2
  • 255100007497Not stocked
    Battery support×1
  • 265100006920
    $0.75
    Washer 6,4 - 5100006920×8
  • 275100006542
    $1.60
    Nut - 5100006542×8
  • 285100007445Not stocked
    Pad×2
  • 295100007498Not stocked
    Battery support×1
  • 305100007446Not stocked
    Pad×1
  • 315100007448Not stocked
    Threaded bolt×2
  • 325100007309Not stocked
    Battery×1
  • 335100007499Not stocked
    Holder×1
  • 345100007449Not stocked
    Pad×1
  • 355100006560
    $0.62
    Nut - 5100006560×2
  • 365100007500Not stocked
    Engine mounting×1
  • 375100006556
    $8.49
    Hexhead screw - 5100006556×2
  • 385100007310Not stocked
    Shockmount×2
  • 395100006544
    $6.11
    Nut - 5100006544×2
  • 405100006547
    $1.60
    Washer - 5100006547×2
  • 415100006559
    $4.25
    Hexhead screw - 5100006559×2
  • 425100007320Not stocked
    Gasket right×1
  • 435100007321Not stocked
    Gasket left×1
  • 445100007324Not stocked
    reflector×2
  • 455100007318Not stocked
    reflector×4
  • 465100007317Not stocked
    Blind rivet×4
  • 475100007081Not stocked
    plug×1
  • 485100007501Not stocked
    Clamp×2
  • 495100007312Not stocked
    Plug×1
  • 505100007325Not stocked
    Plug×1
