Pureheat Hydronic Heater, Oil Burner

PUREHEAT Hydronic Heater (Cont.) Diagram

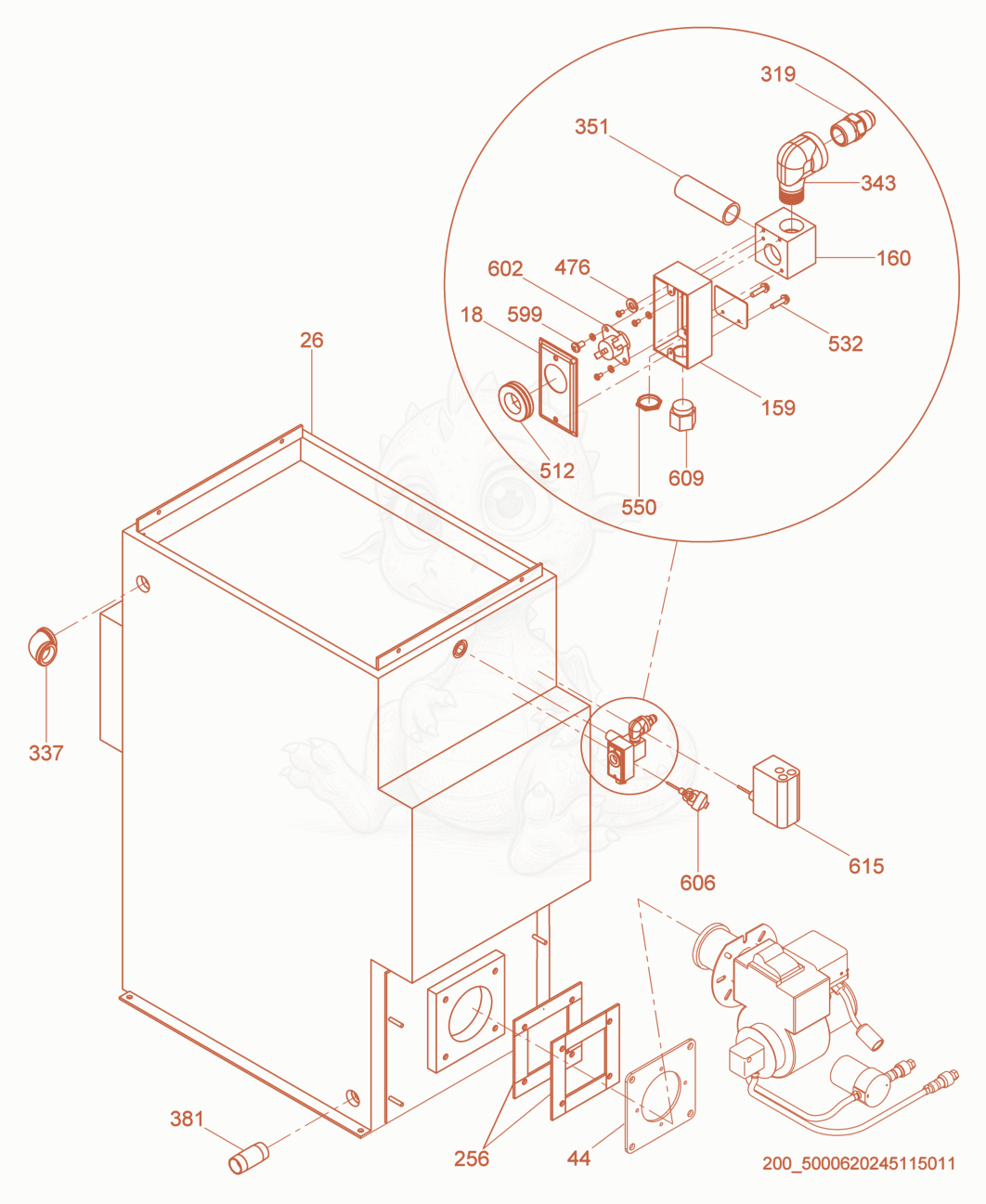

Exploded parts diagram of the Hydronic Heater (Cont.) of a Wacker Neuson PUREHEAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 185000166930Not stocked
    Cover plate×1
  • 265000168720Not stocked
    Hydronic heater×1
  • 445000167202Not stocked
    Adapter plate×1
  • 445000167202Not stocked
    Adapter plate×1
  • 1585000166927Not stocked
    Cover plate×1
  • 1595000166931Not stocked
    Enclosure×1
  • 1605000166926Not stocked
    Snap disc block×1
  • 2565200006640Not stocked
    Gasket×1
  • 3195000168372Not stocked
    Adapter×1
  • 3375000168459Not stocked
    Elbow×1
  • 3435000168029Not stocked
    Elbow×1
  • 3515000168700Not stocked
    Nipple fitting×1
  • 3815000168715Not stocked
    Nipple fitting×1
  • 4765000167838Not stocked
    Washer×4
  • 5125000168477Not stocked
    Grommet×1
  • 5325000167883Not stocked
    Screw×2
  • 5505000166459Not stocked
    Lock nut×1
  • 5995000167835Not stocked
    Screw×4
  • 6025000166613Not stocked
    Limit control×1
  • 6065000166712Not stocked
    Thermocouple×1
  • 6095000166458Not stocked
    Cord grip×1
  • 6155000171353Not stocked
    Low Level Cut-off Kit×1
