Pureheat Hydronic Heater, Oil Burner

PUREHEAT Hydronic Heater (Cont.) Diagram

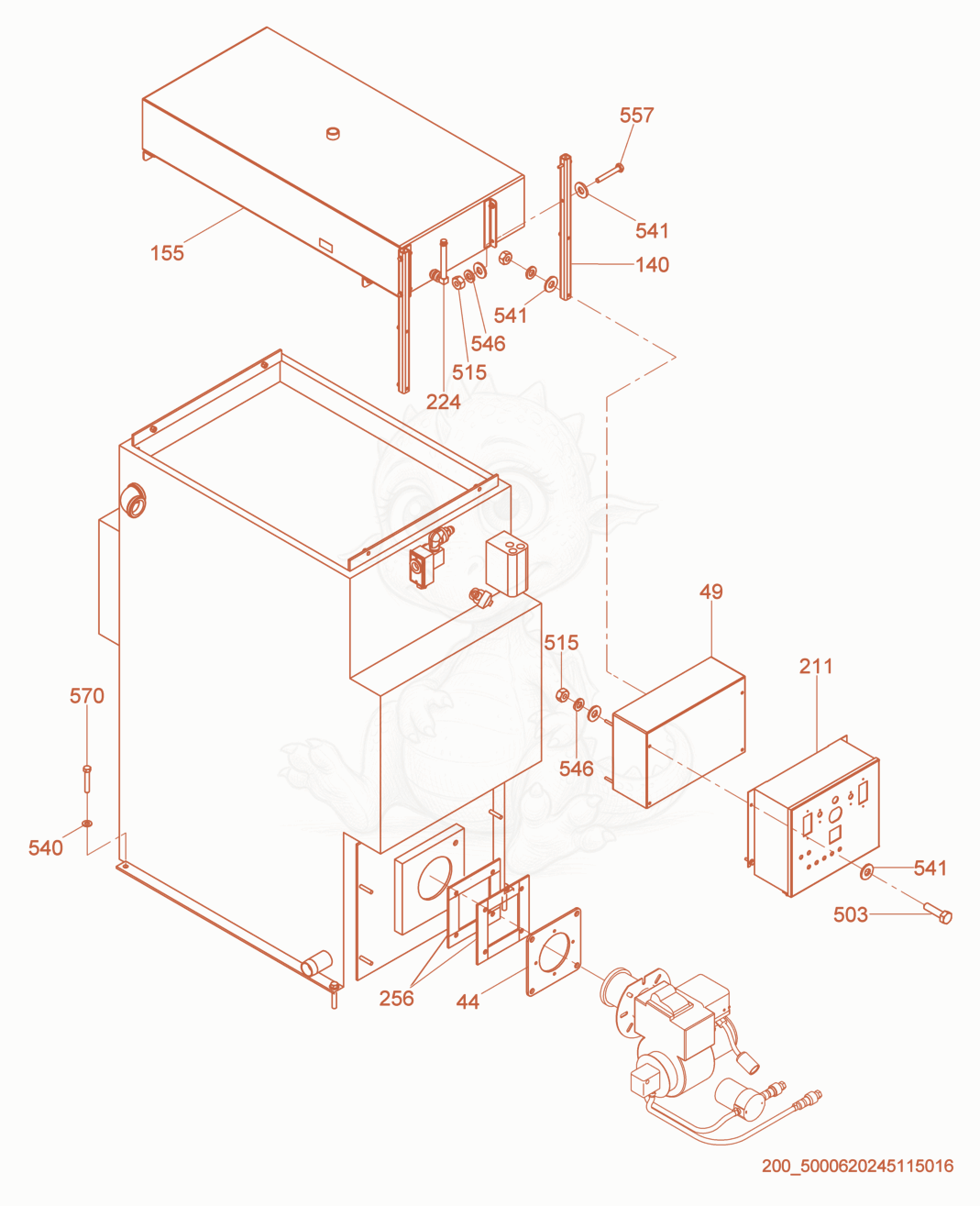

Exploded parts diagram of the Hydronic Heater (Cont.) of a Wacker Neuson PUREHEAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 445000167202Not stocked
    Adapter plate×1
  • 495000170116Not stocked
    Spacer×1
  • 1405000167450Not stocked
    Tube×2
  • 1555000169775Not stocked
    Expansion tank×1
  • 2115000166046Not stocked
    Control panel cpl.×1
  • 2245000168805Not stocked
    Sight gauge×1
  • 2565200006640Not stocked
    Gasket×1
  • 5035000167721Not stocked
    Bolt×4
  • 5155000167690Not stocked
    Nut×12
  • 5405000167728Not stocked
    Flat washer×4
  • 5415000167729Not stocked
    Flat washer×20
  • 5465000167733Not stocked
    Lock washer×12
  • 5575000167703Not stocked
    Bolt×4
  • 5705000167779Not stocked
    Bolt×4
