Pureheat Hydronic Heater, Oil Burner

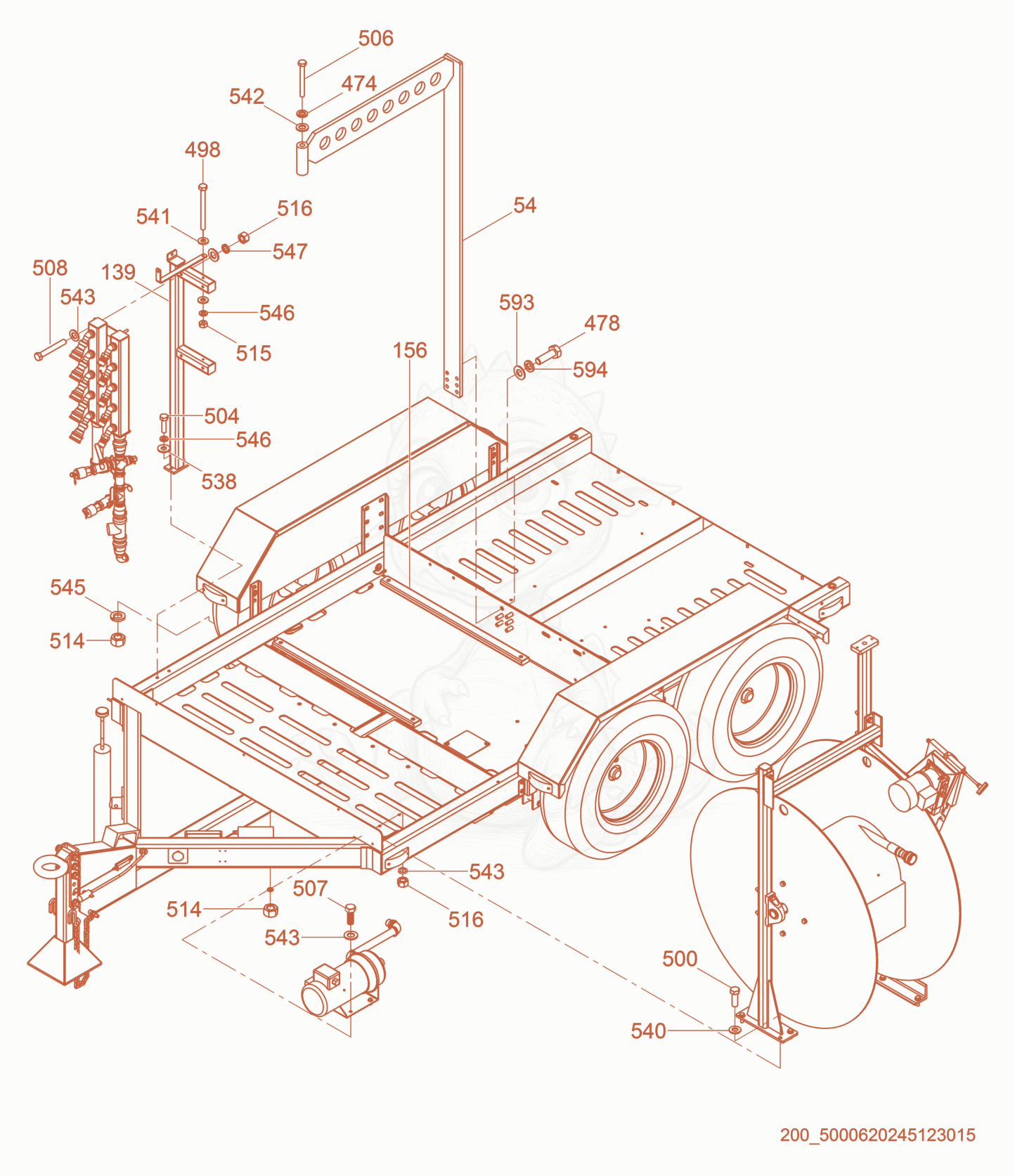

PUREHEAT Mount-Components Diagram

Exploded parts diagram of the Mount-Components of a Wacker Neuson PUREHEAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 545000182667Not stocked
    Lifting bracket×1
  • 1395000167445Not stocked
    Mount×1
  • 1565000169776Not stocked
    Spacer×2
  • 4745000167756Not stocked
    Washer-lock×1
  • 4785000167763Not stocked
    Bolt×6
  • 4985000167877Not stocked
    Bolt×1
  • 5005000167699Not stocked
    Bolt×8
  • 5045000167702Not stocked
    Bolt×2
  • 5065000167862Not stocked
    Bolt×1
  • 5075000167705Not stocked
    Bolt×4
  • 5085000167706Not stocked
    Bolt×4
  • 5145000167689Not stocked
    Nut×8
  • 5155000167690Not stocked
    Nut×1
  • 5165000167691Not stocked
    Nut×8
  • 5385000167806Not stocked
    Fender washer×2
  • 5405000167728Not stocked
    Flat washer×16
  • 5415000167729Not stocked
    Flat washer×2
  • 5425000167755Not stocked
    Washer-flat×1
  • 5435000167730Not stocked
    Flat washer×16
  • 5455000167734Not stocked
    Lock washer×4
  • 5465000167733Not stocked
    Lock washer×3
  • 5475000167735Not stocked
    Lock washer×4
  • 5935000167760Not stocked
    Washer-flat×6
  • 5945000167762Not stocked
    Washer-lock×6
