PUREHEAT Wiring Diagram - Main Wiring Harness Diagram

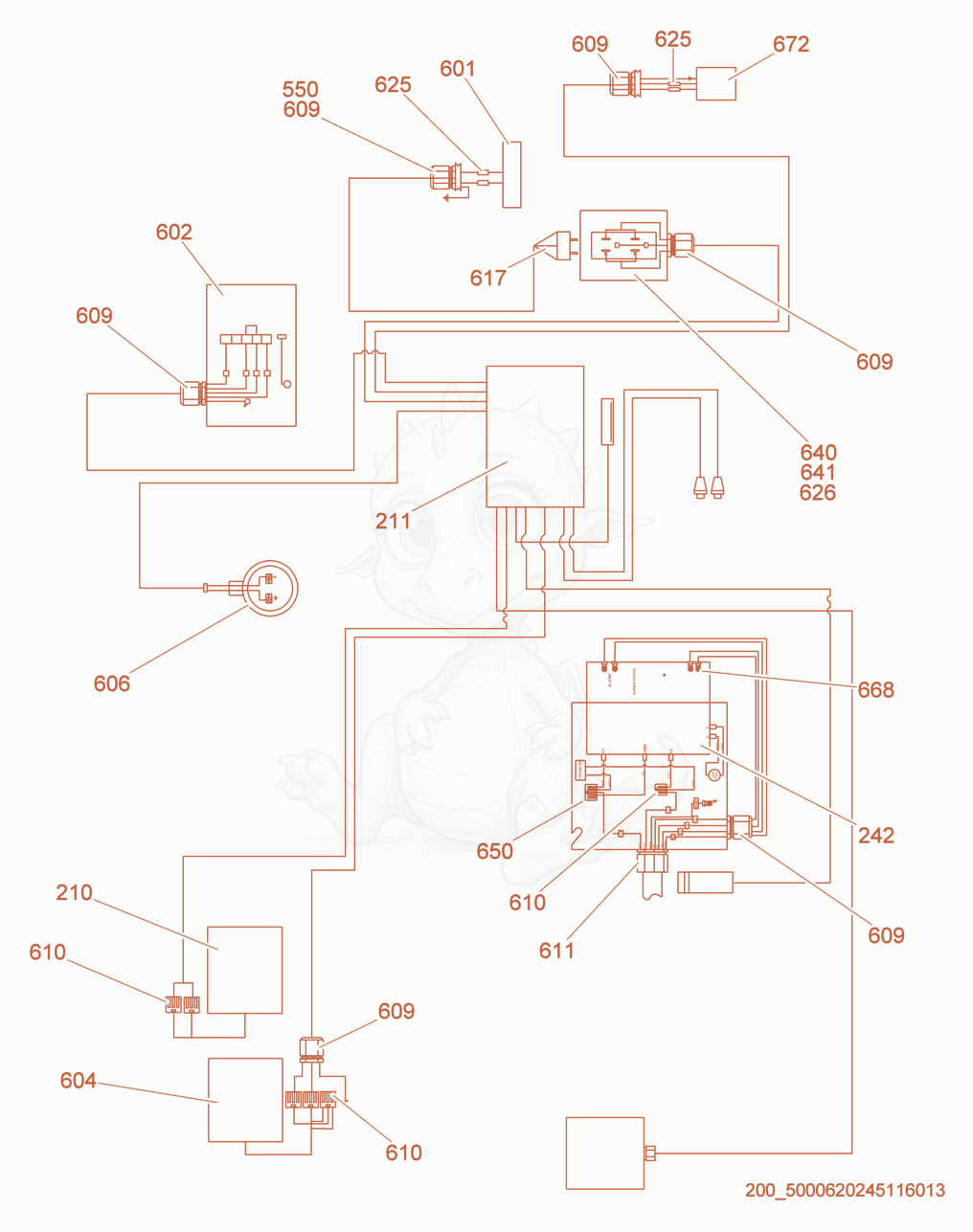

Exploded parts diagram of the Wiring Diagram - Main Wiring Harness of a Wacker Neuson PUREHEAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2105000168104Not stocked
    Clutch×1
  • 2115000166046Not stocked
    Control panel cpl.×1
  • 2425200000922Not stocked
    Burner×1
  • 5505000166459Not stocked
    Lock nut×1
  • 6015000166635Not stocked
    Light×1
  • 6045000166554Not stocked
    Gear×1
  • 6065000166712Not stocked
    Thermocouple×1
  • 6095000166458Not stocked
    Cord grip×6
  • 6105000166833Not stocked
    Terminal×10
  • 6115000166473Not stocked
    Cord grip×1
  • 6255000166423Not stocked
    Splice×13
  • 6265000166425Not stocked
    Receptacle (socket)×1
  • 6275000166517Not stocked
    Cab dome light×1
  • 6405000166546Not stocked
    Outlet box×1
  • 6415000166547Not stocked
    Cover plate×1
  • 6505000166813Not stocked
    Terminal×1
  • 6685000166590Not stocked
    Terminal×4
