RC110P

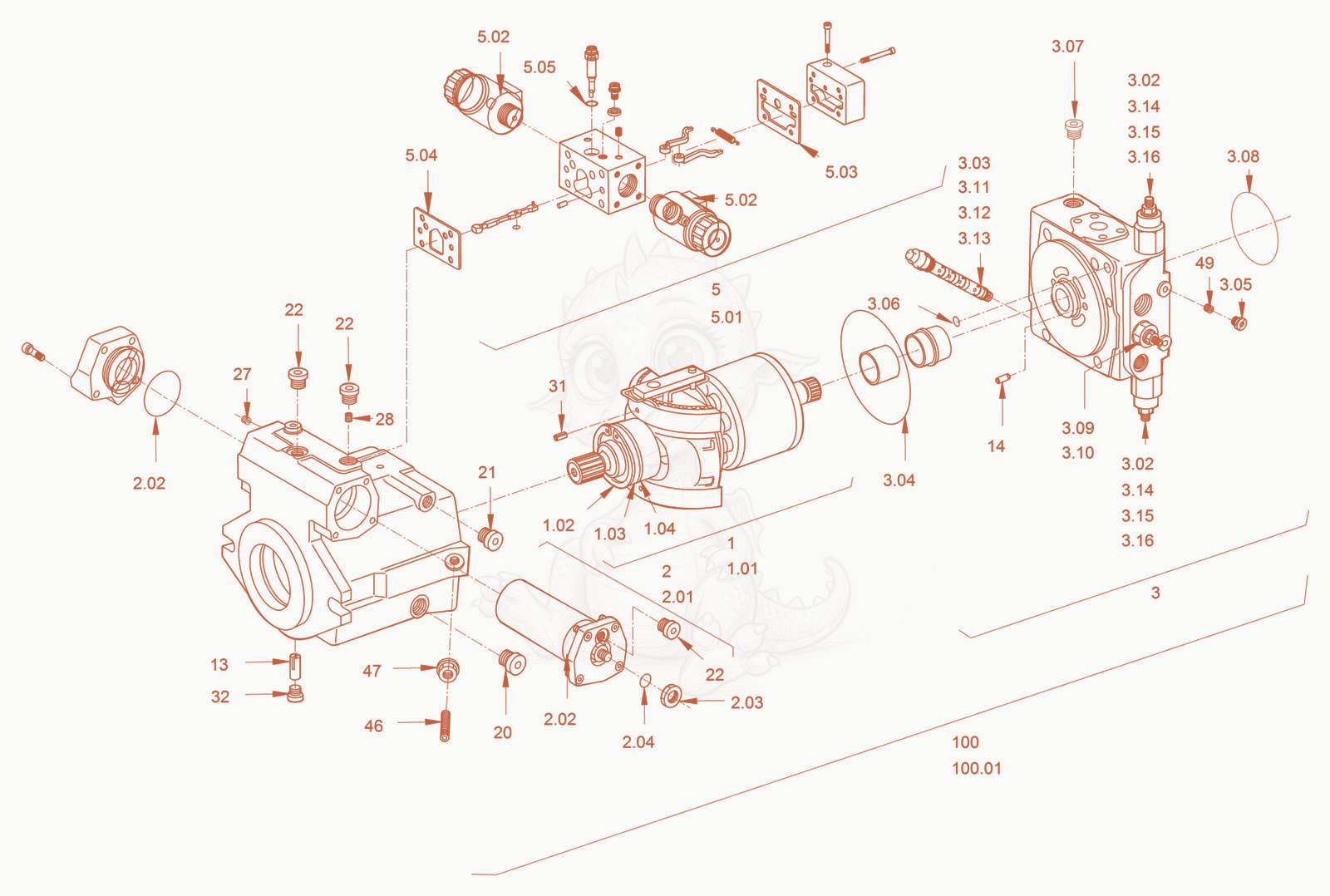

RC110P variable displac. pump (drive) Diagram
- shaft seal - 5100023043×1
- circlip - 5100023052×1
- set of seals - 5100023146×1
- circlip - 5100023205×1
- driving gear - 5100023248×1
- set of seals - 5100023152Unknown×1
- hexagonal nut - 5100023191Unknown×1
- o-ring seal - 5100023228Unknown×1
- 25100035093Not stockedset of seals×2
- 25100035094Not stockedhydraulic regulation×1
- joint plate - 5100035096×1
- locking screw - 5100035095×1
- o-ring seal - 5100023228×1
- o-ring seal - 5100023227×1
- supporting ring - 5100023189×1
- pressure-relief valve - 5100023044×2
- cut-off valve - 5100023039×1
- O-ring seal - 5100013601×1
- O-ring seal - 5100013546×1
- O-ring seal - 5100013545×1
- Screw plug - 5100013543×2
- Feeding pressure valve - 5100011614×1
- O-ring seal - 5100011610×1
- Seal nut - 5100011511×1
- Seal nut - 5100011511×1
- O-ring seal - 5100011446×1
- automatic controller - 5100035098×1
- o-ring seal - 5100035097×1
- sealing - 5100023192×1
- magnet - 5100023186×2
- set of seals - 5100023131×1
- Seal - 5100012541×1
- pin - 5100023204×1
- positioning pin - 5100022944×1
- Screw plug - 5100011452×1
- Screw plug - 5100011453×1
- Screw plug - 5100013543×6
- bung - 5100022998×2
- nozzle - 5100023024×2
- pin - 5100023314×2
- Screw plug - 5100011454×1
- threaded pin - 5100035099×1
- seal nut - 5100022999×1
- Nozzle - 5100011510×1
- drive pump - 5100034847×1
- set of seals - 5100035100×1
