RC110P

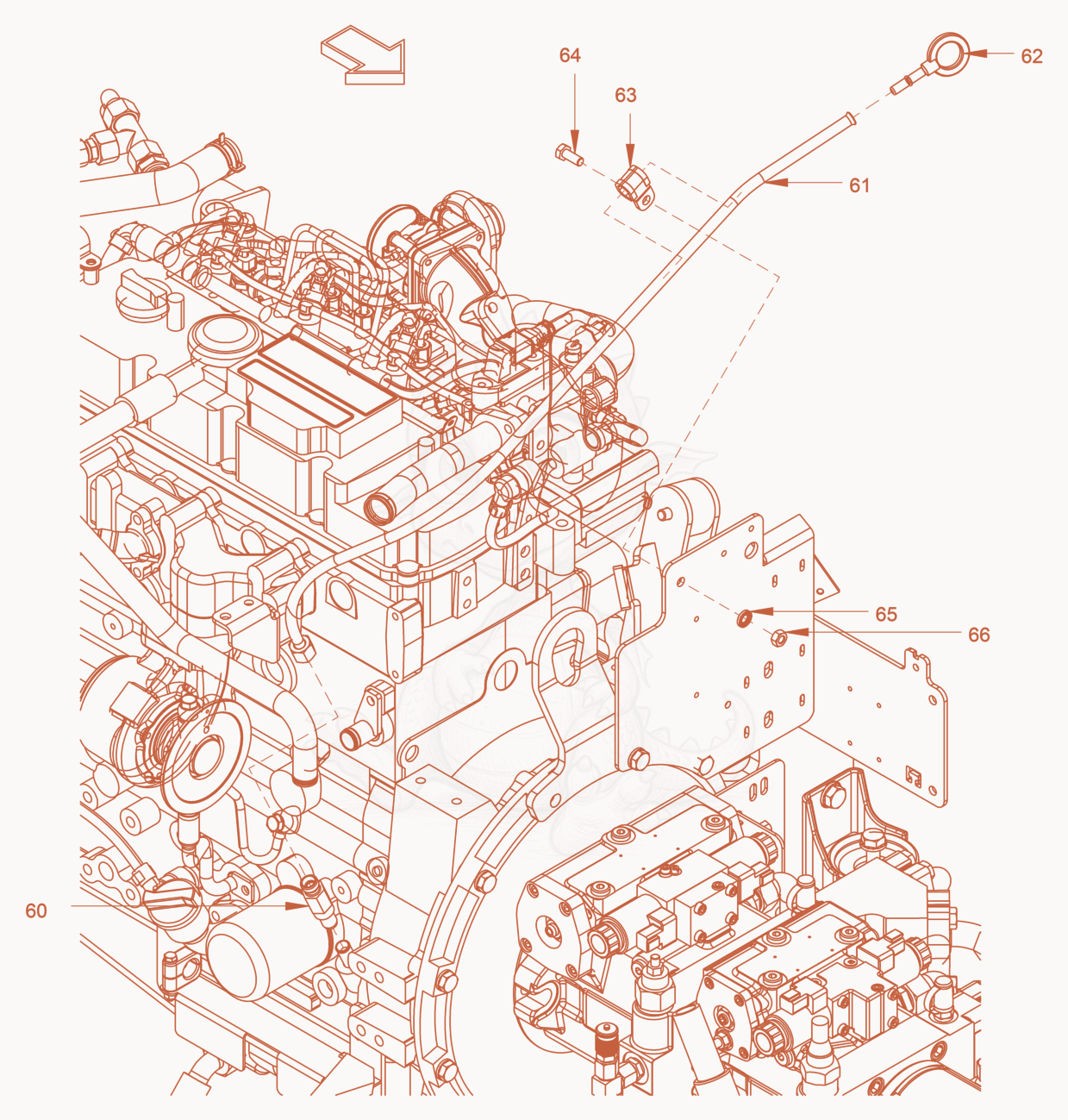

RC110P pump drive and engine assembly Diagram

Exploded parts diagram of the pump drive and engine assembly of a Wacker Neuson RC110P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 605100034880Not stocked
    nipple×1
  • 615100034881
    $327.48
    guide tube - 5100034881×1
  • 625100034882
    $141.02
    oil dipstick - 5100034882×1
  • 635100034835
    $6.33
    pipe clip - 5100034835×1
  • 645100012613
    $1.57
    Hexagon screw - 5100012613×1
  • 655100012966
    $1.57
    Locking washer - 5100012966×2
  • 665100012546
    $1.57
    Hexagon nut - 5100012546×1
