RC110P

RC110P electrical system Diagram

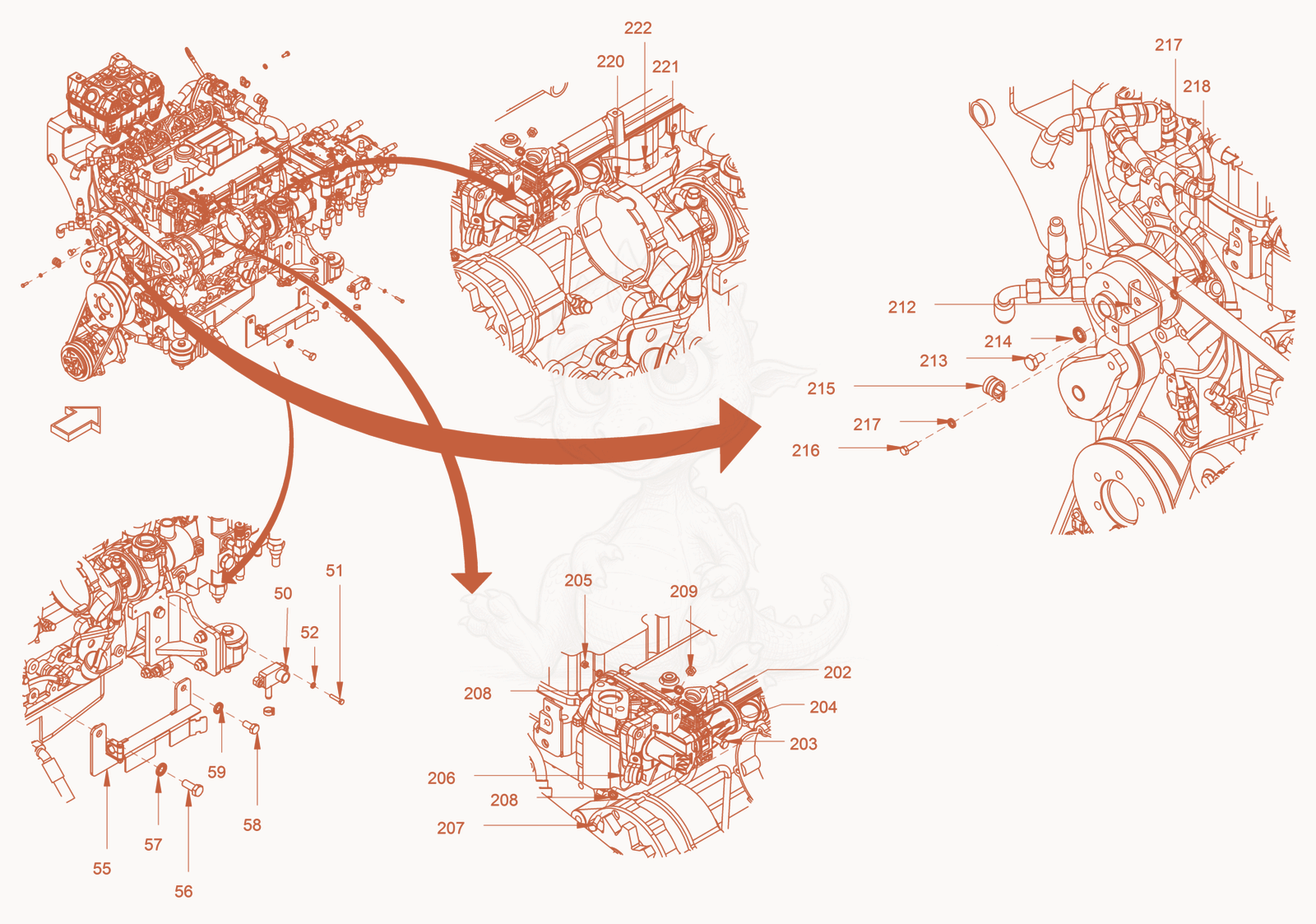

Exploded parts diagram of the electrical system of a Wacker Neuson RC110P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 505100035290
    $1,562.22
    transmitter - 5100035290×1
  • 515100023046
    $2.84
    hexagon screw - 5100023046×2
  • 525100012965
    $3.01
    Locking washer - 5100012965×4
  • 555100035291Not stocked
    holder×1
  • 565100035292Not stocked
    hexagon screw×1
  • 575100012972
    $2.09
    Locking washer - 5100012972×1
  • 585100011611
    $1.66
    Hexagon screw - 5100011611×1
  • 595100012968
    $1.57
    Locking washer - 5100012968×1
  • 2025100035293Not stocked
    metal plate×1
  • 2035100012600
    $1.57
    Hexagon screw - 5100012600×1
  • 2045100012965
    $3.01
    Locking washer - 5100012965×2
  • 2055100012545
    $1.57
    Hexagon nut - 5100012545×1
  • 2065100011546
    $17.45
    Pipe clip - 5100011546×1
  • 2075100012608
    $1.57
    Hexagon screw - 5100012608×1
  • 2085100012965
    $3.01
    Locking washer - 5100012965×2
  • 2095100012545
    $1.57
    Hexagon nut - 5100012545×1
  • 2125100035294Not stocked
    metal plate×1
  • 2135100012520
    $1.57
    Hexagon screw - 5100012520×1
  • 2145100012967
    $1.57
    Locking washer - 5100012967×1
  • 2155100011546
    $17.45
    Pipe clip - 5100011546×1
  • 2165100012608
    $1.57
    Hexagon screw - 5100012608×1
  • 2175100012965
    $3.01
    Locking washer - 5100012965×2
  • 2185100012545
    $1.57
    Hexagon nut - 5100012545×1
  • 2205100035295Not stocked
    protective cap×1
  • 2215100012598
    $1.57
    Hexagon screw - 5100012598×4
  • 2225100012936
    $2.27
    Washer - 5100012936×4
