RC110P

RC110P electrical system Diagram

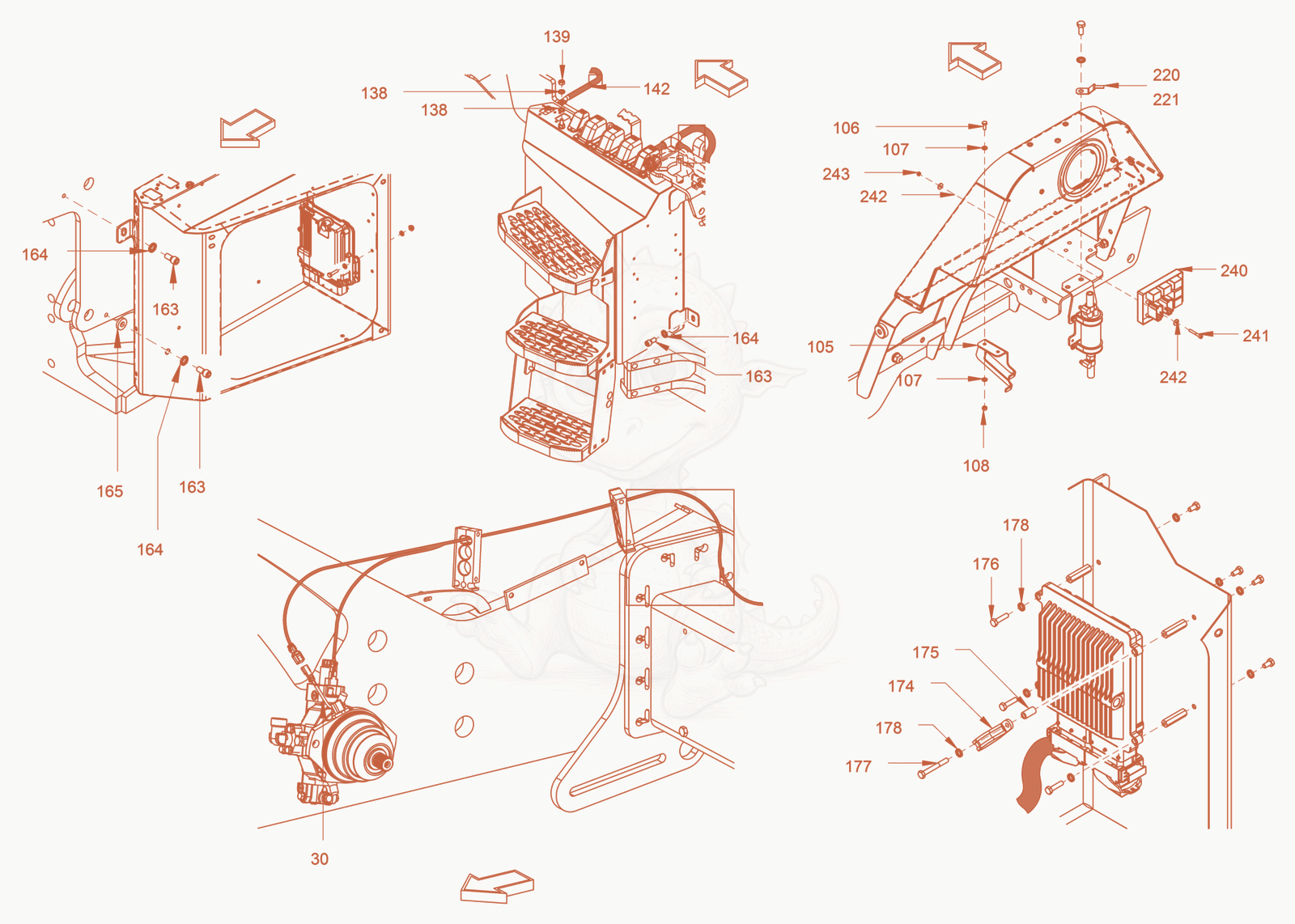

Exploded parts diagram of the electrical system of a Wacker Neuson RC110P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305100035235
    $971.69
    speed sensor - 5100035235×1
  • 1055100035236Not stocked
    metal plate×1
  • 1065100012600
    $1.57
    Hexagon screw - 5100012600×2
  • 1075100012965
    $3.01
    Locking washer - 5100012965×4
  • 1085100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 1385100011918
    $1.57
    Serrated lock washer - 5100011918×2
  • 1395100023124
    $3.28
    hexagonal nut - 5100023124×1
  • 1425100035237
    $167.51
    cable harness - 5100035237×1
  • 1635100035238
    $2.88
    cheese-head screw - 5100035238×4
  • 1645100012968
    $1.57
    Locking washer - 5100012968×4
  • 1655100013456
    $1.66
    Washer - 5100013456×1
  • 1745100012909
    $13.38
    Hose clip - 5100012909×1
  • 1755100035239
    $7.61
    distance piece - 5100035239×1
  • 1765100012610
    $1.57
    Hexagon screw - 5100012610×3
  • 1775100034772
    $0.83
    hexagon screw - 5100034772×1
  • 1785100012965
    $3.01
    Locking washer - 5100012965×4
  • 2205100035240Not stocked
    cable harness×1
  • 2215100034901Not stocked
    clip×1
  • 2405100035241
    $1,072.79
    relay - 5100035241×1
  • 2415100033254
    $1.49
    cheese-head screw - 5100033254×2
  • 2425100013453
    $1.49
    Washer - 5100013453×2
  • 2435100011599
    $3.01
    Hexagon nut - 5100011599×2
