RC110P

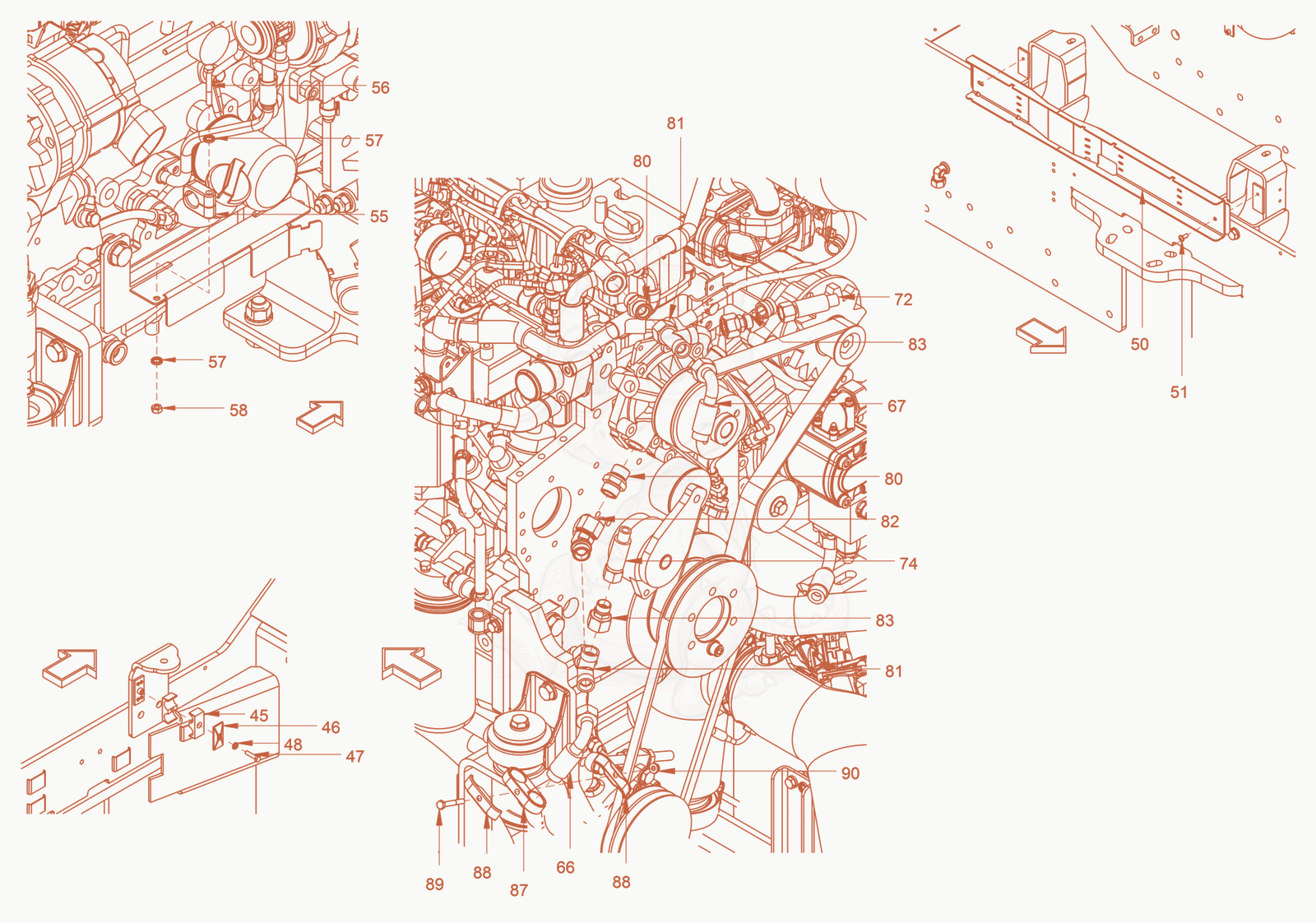

RC110P exhaust aftertreatment Diagram

Exploded parts diagram of the exhaust aftertreatment of a Wacker Neuson RC110P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 455100022980
    $2.62
    half-clip - 5100022980×4
  • 465100022942
    $1.48
    top cover - 5100022942×2
  • 475100034968
    $1.49
    hexagon screw - 5100034968×2
  • 485100012966
    $1.57
    Locking washer - 5100012966×2
  • 505100034969Not stocked
    strip×1
  • 515100011869
    $1.49
    Fillister head screw - 5100011869×2
  • 555100034970Not stocked
    pipe clip×1
  • 565100013467
    $1.57
    Hexagon screw - 5100013467×1
  • 575100012965
    $3.01
    Locking washer - 5100012965×2
  • 585100012545
    $1.57
    Hexagon nut - 5100012545×1
  • 665100034971
    $179.25
    hose - 5100034971×1
  • 675100034972
    $199.94
    hose - 5100034972×1
  • 725100034973
    $76.65
    hose - 5100034973×1
  • 745100034974
    $85.66
    hose - 5100034974×1
  • 805100013471
    $14.36
    Straight screwed socket - 5100013471×2
  • 815100022916
    $94.24
    elbow adjustable - 5100022916×2
  • 825100034975Not stocked
    elbow adjustable×1
  • 835100034976
    $27.50
    reducing insert - 5100034976×2
  • 875100034977Not stocked
    pipe clip×2
  • 885100034978Not stocked
    top cover×4
  • 895100013467
    $1.57
    Hexagon screw - 5100013467×2
  • 905100023132
    $1.57
    hexagonal nut - 5100023132×2
