RC110P

RC110P driver's cabin Diagram

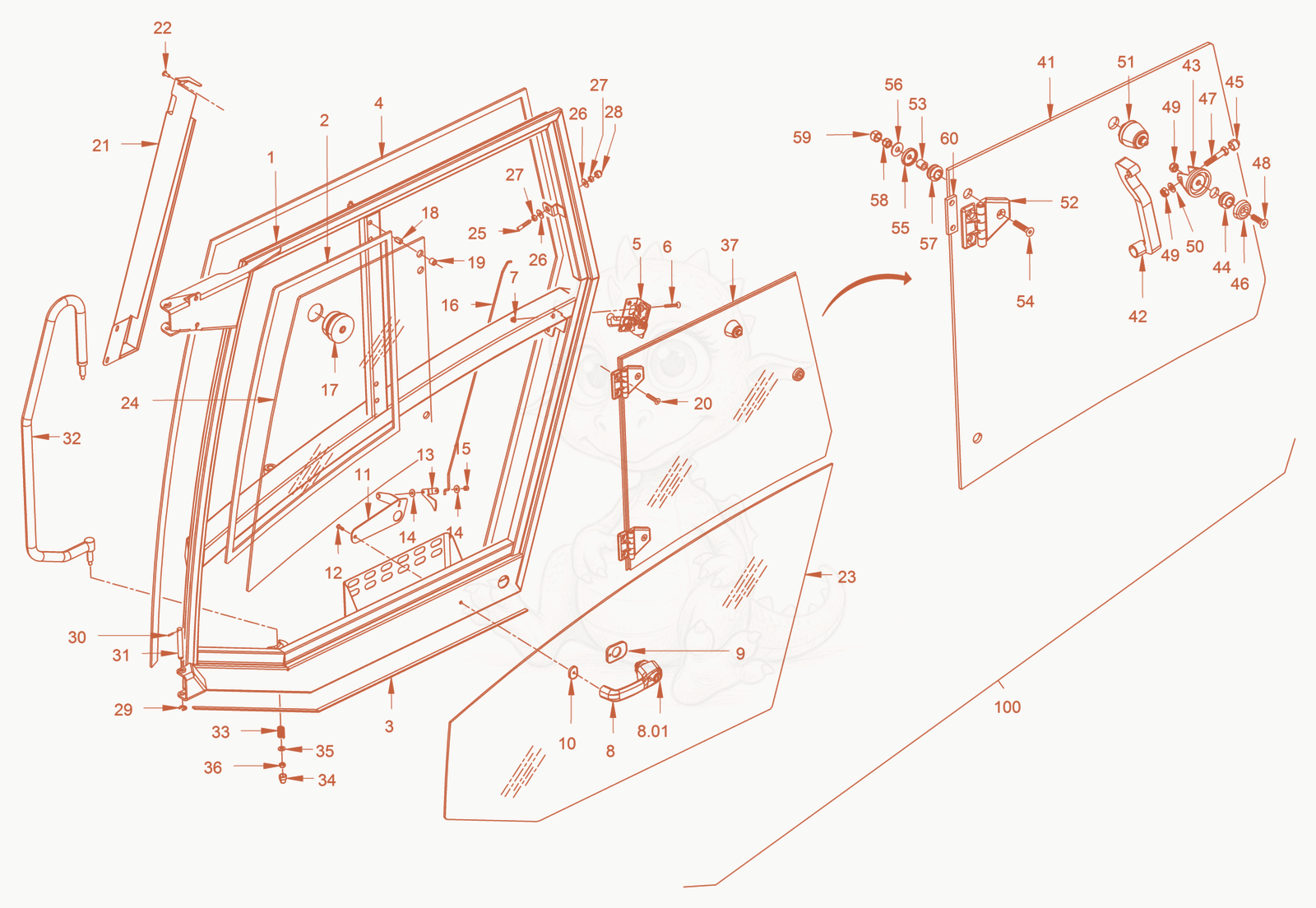

Exploded parts diagram of the driver's cabin of a Wacker Neuson RC110P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100046871Not stocked
    door frame×1
  • 25100046663
    $124.74
    sealing - 5100046663×1
  • 35100046664Not stocked
    sealing×1
  • 45100046665Not stocked
    sealing×1
  • 55100046821
    $329.05
    cabinet bolt - 5100046821×1
  • 65100046822
    $4.37
    screw - 5100046822×2
  • 75100046823Not stocked
    nut×2
  • 85100013557
    $20.31
    Key - 5100013557×1
  • 85100046612
    $438.54
    handle - 5100046612×1
  • 95100046615Not stocked
    sealing×1
  • 105100046616Not stocked
    sealing×1
  • 115100046819Not stocked
    metal plate×1
  • 125100046820Not stocked
    screw×1
  • 135100046824
    $93.63
    deviation - 5100046824×1
  • 145100046667Not stocked
    washer×2
  • 155100046694Not stocked
    nut×1
  • 165100046825Not stocked
    linkage×1
  • 175100011602
    $336.44
    Mounting - 5100011602×1
  • 185100046643
    $2.40
    rivet - 5100046643×4
  • 195100046602
    $1.57
    distance piece - 5100046602×4
  • 205100046822
    $4.37
    screw - 5100046822×4
  • 215100046826Not stocked
    covering part×1
  • 225100046820Not stocked
    screw×3
  • 235100046590
    $1,520.59
    glass pane - 5100046590×1
  • 245100046591
    $1,425.94
    glass pane - 5100046591×1
  • 255100046614Not stocked
    threaded pin×1
  • 265100013421
    $1.57
    Washer - 5100013421×2
  • 275100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 285100046581
    $1.49
    protective cap - 5100046581×1
  • 295100046632Not stocked
    washer×1
  • 305100046582Not stocked
    pin×1
  • 315100046630Not stocked
    bolt×1
  • 325100046817Not stocked
    handle×1
  • 335100046741Not stocked
    compression spring×2
  • 345100046581
    $1.49
    protective cap - 5100046581×2
  • 355100046760Not stocked
    washer×2
  • 365100046818Not stocked
    safety nut×2
  • 375100046695
    $1,794.07
    glass pane - 5100046695×1
  • 415100046607
    $773.40
    glass pane - 5100046607×1
  • 425100046604
    $79.23
    handle - 5100046604×1
  • 435100046606
    $47.40
    fixation - 5100046606×1
  • 445100046539
    $3.21
    cable support sleeve - 5100046539×1
  • 455100046581
    $1.49
    protective cap - 5100046581×1
  • 465100046603
    $5.16
    supporting plate - 5100046603×1
  • 475100012506
    $1.53
    Hexagon screw - 5100012506×1
  • 485100034693
    $1.71
    countersunk screw - 5100034693×1
  • 495100012923Not stocked
    Hexagon nut×2
  • 505100046688
    $2.88
    washer - 5100046688×1
  • 515100011603
    $314.95
    Mounting - 5100011603×1
  • 525100046587
    $55.00
    hinge - 5100046587×2
  • 535100046696
    $13.49
    bushing - 5100046696×2
  • 545100046822
    $4.37
    screw - 5100046822×2
  • 555100046605
    $7.72
    washer - 5100046605×2
  • 565100046655Not stocked
    washer×2
  • 575100046539
    $3.21
    cable support sleeve - 5100046539×2
  • 585100046613Not stocked
    hexagonal nut×2
  • 595100046581
    $1.49
    protective cap - 5100046581×2
  • 605100046827
    $2.46
    metal plate - 5100046827×2
  • 1005100046873
    $16,697.65
    cabin door, left - 5100046873×1
