Compactor RC110 US Rops

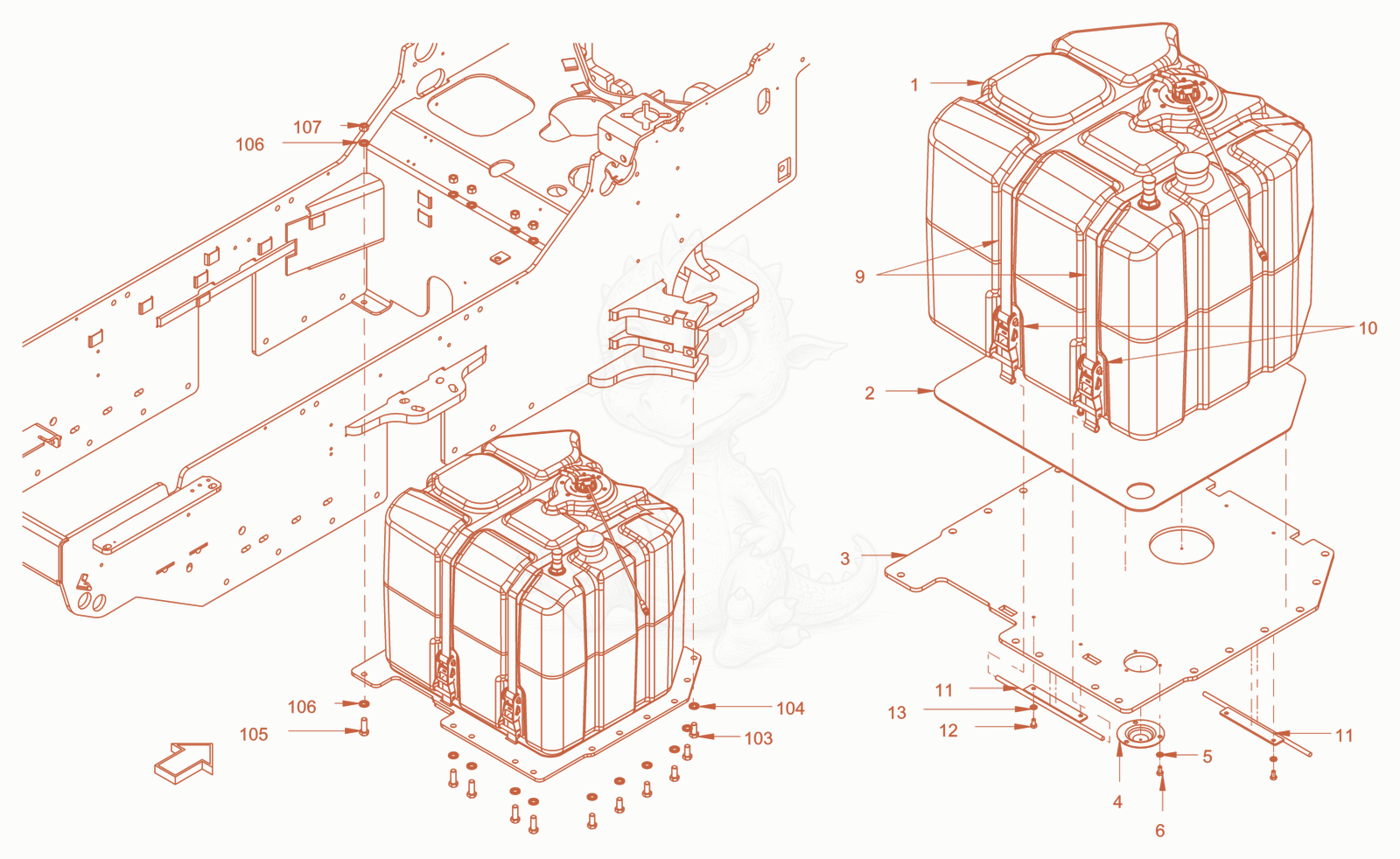

RC110USROPS fuel system Diagram

Exploded parts diagram of the fuel system of a Wacker Neuson RC110USROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100064038
    $3,549.34
    fuel tank - 5100064038×1
  • 25100064042Not stocked
    insulating mat×1
  • 35100064044Not stocked
    metal plate×1
  • 45100064046Not stocked
    lid×1
  • 55100012515
    $1.49
    Hexagon screw - 5100012515×3
  • 65100012966
    $1.57
    Locking washer - 5100012966×3
  • 95100034888Not stocked
    lashing strap×2
  • 105100034889Not stocked
    supporting plate×2
  • 115100034890Not stocked
    holder system×2
  • 125100012515
    $1.49
    Hexagon screw - 5100012515×4
  • 135100012966
    $1.57
    Locking washer - 5100012966×4
  • 1035100034690
    $3.84
    hexagon screw - 5100034690×12
  • 1045100012969
    $3.15
    Locking washer - 5100012969×12
  • 1055100023047
    $4.80
    hexagon screw - 5100023047×5
  • 1065100012969
    $3.15
    Locking washer - 5100012969×10
  • 1075100012405
    $3.37
    Hexagon nut - 5100012405×5
