Compactor RC110 US Rops

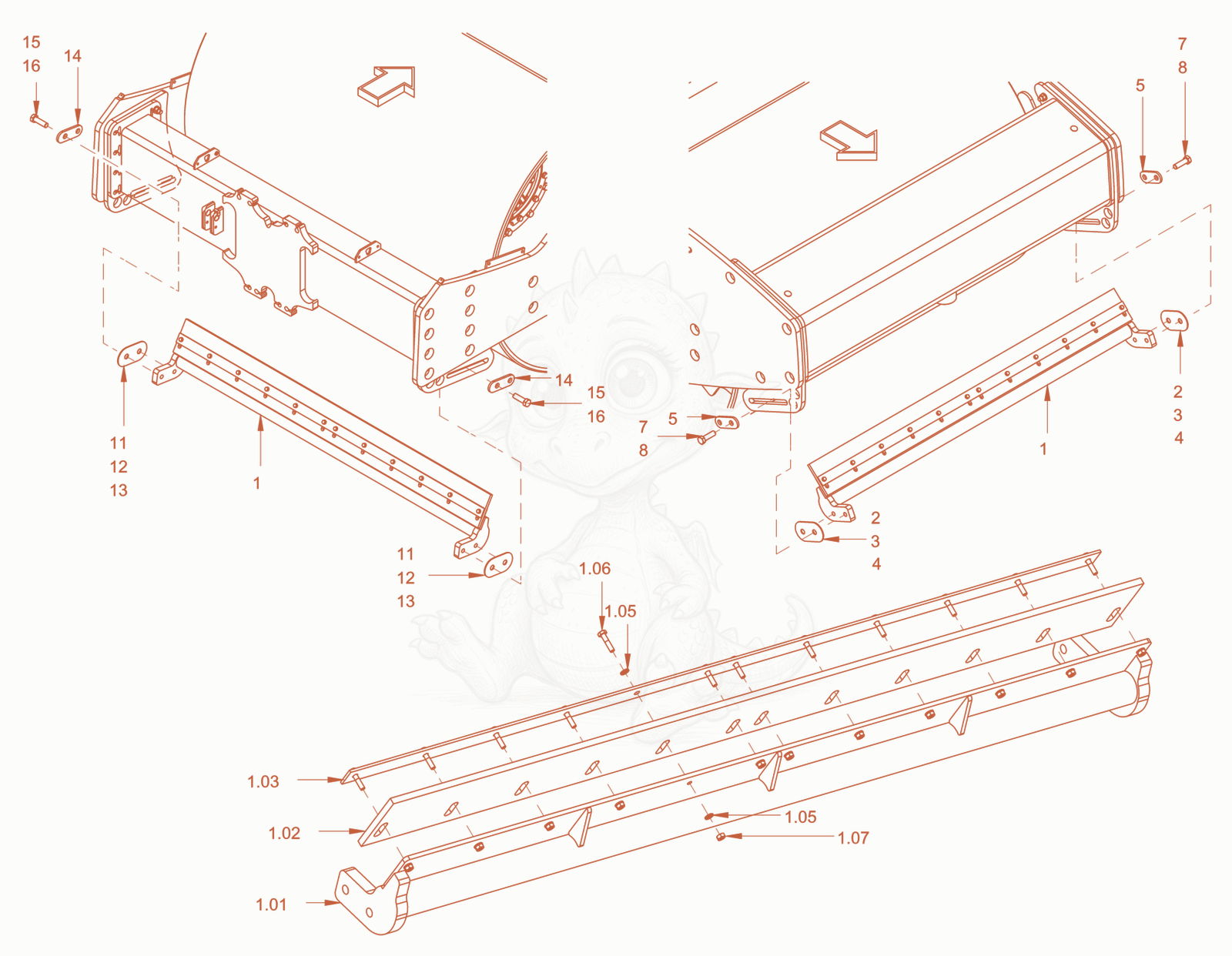

RC110USROPS scraper smooth roller drum Diagram

Exploded parts diagram of the scraper smooth roller drum of a Wacker Neuson RC110USROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012967
    $1.57
    Locking washer - 5100012967×24
  • 15100013598
    $1.57
    Safety nut - 5100013598×12
  • 15100035636Not stocked
    hexagon screw×12
  • 15100035637
    $351.84
    flat steel - 5100035637×1
  • 15100035638
    $636.19
    scraper - 5100035638×1
  • 15100035639
    $4,738.65
    mount for scraper - 5100035639×1
  • 15100035640
    $3,533.31
    scraper - 5100035640×2
  • 25100035641
    $12.31
    distance sheet - 5100035641×4
  • 35100035642
    $21.34
    distance sheet - 5100035642×4
  • 45100035643
    $21.38
    distance sheet - 5100035643×2
  • 55100035644
    $52.69
    metal plate - 5100035644×2
  • 75100063907Not stocked
    hexagon screw×4
  • 85100063901Not stocked
    locking washer×4
  • 115100035641
    $12.31
    distance sheet - 5100035641×4
  • 125100035642
    $21.34
    distance sheet - 5100035642×4
  • 135100035643
    $21.38
    distance sheet - 5100035643×2
  • 145100035644
    $52.69
    metal plate - 5100035644×2
  • 155100063907Not stocked
    hexagon screw×4
  • 165100063901Not stocked
    locking washer×4
