Compactor RC110 US Rops

RC110USROPS cooling (engine/hydraulic oil) Diagram

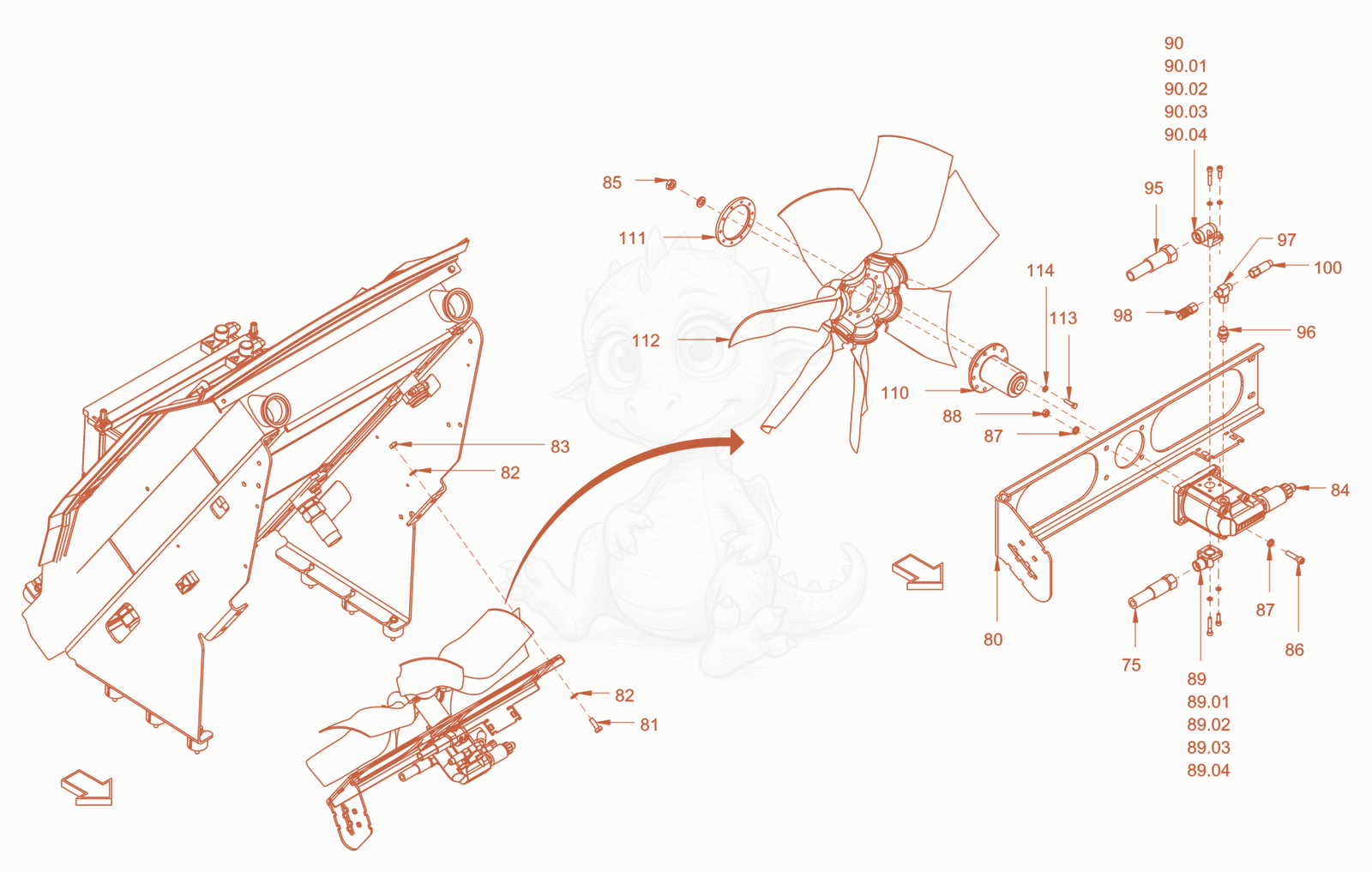

Exploded parts diagram of the cooling (engine/hydraulic oil) of a Wacker Neuson RC110USROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 755100035051
    $69.15
    hose - 5100035051×1
  • 805100035063Not stocked
    holder system×1
  • 815100012617
    $2.84
    Hexagon screw - 5100012617×4
  • 825100012967
    $1.57
    Locking washer - 5100012967×8
  • 835100012547
    $1.49
    Hexagon nut - 5100012547×4
  • 845100035064
    $3,268.14
    constant motor - 5100035064×1
  • 855100035065
    $41.86
    safety nut - 5100035065×1
  • 865100013511
    $1.57
    Cheese-head screw - 5100013511×4
  • 875100012966
    $1.57
    Locking washer - 5100012966×8
  • 885100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 895100013612
    $1.49
    O-ring seal - 5100013612×1
  • 895100013189
    $1.57
    Cheese-head screw - 5100013189×2
  • 895100012942Not stocked
    Spring ring×4
  • 895100012723
    $1.57
    Cheese-head screw - 5100012723×2
  • 895100012216
    $73.16
    Angle flange screwing - 5100012216×1
  • 905100011500
    $3.97
    O-ring seal - 5100011500×1
  • 905100012723
    $1.57
    Cheese-head screw - 5100012723×2
  • 905100012937
    $2.53
    Washer - 5100012937×4
  • 905100013189
    $1.57
    Cheese-head screw - 5100013189×2
  • 905100035066
    $45.61
    angle flange screwing - 5100035066×1
  • 955100035067
    $133.20
    hose - 5100035067×1
  • 965100013447
    $93.58
    Straight screwed socket - 5100013447×1
  • 975100013508
    $51.51
    T-piece adjustable - 5100013508×1
  • 985100035068
    $42.69
    screw coupling - 5100035068×1
  • 1005100035031Not stocked
    hose×1
  • 1105100035069
    $704.42
    hub - 5100035069×1
  • 1115100035070
    $174.50
    flange - 5100035070×1
  • 1125100035071
    $1,175.33
    fan - 5100035071×1
  • 1135100013397
    $1.57
    Hexagon screw - 5100013397×10
  • 1145100012965
    $3.01
    Locking washer - 5100012965×10
