Compactor RC110 US Rops

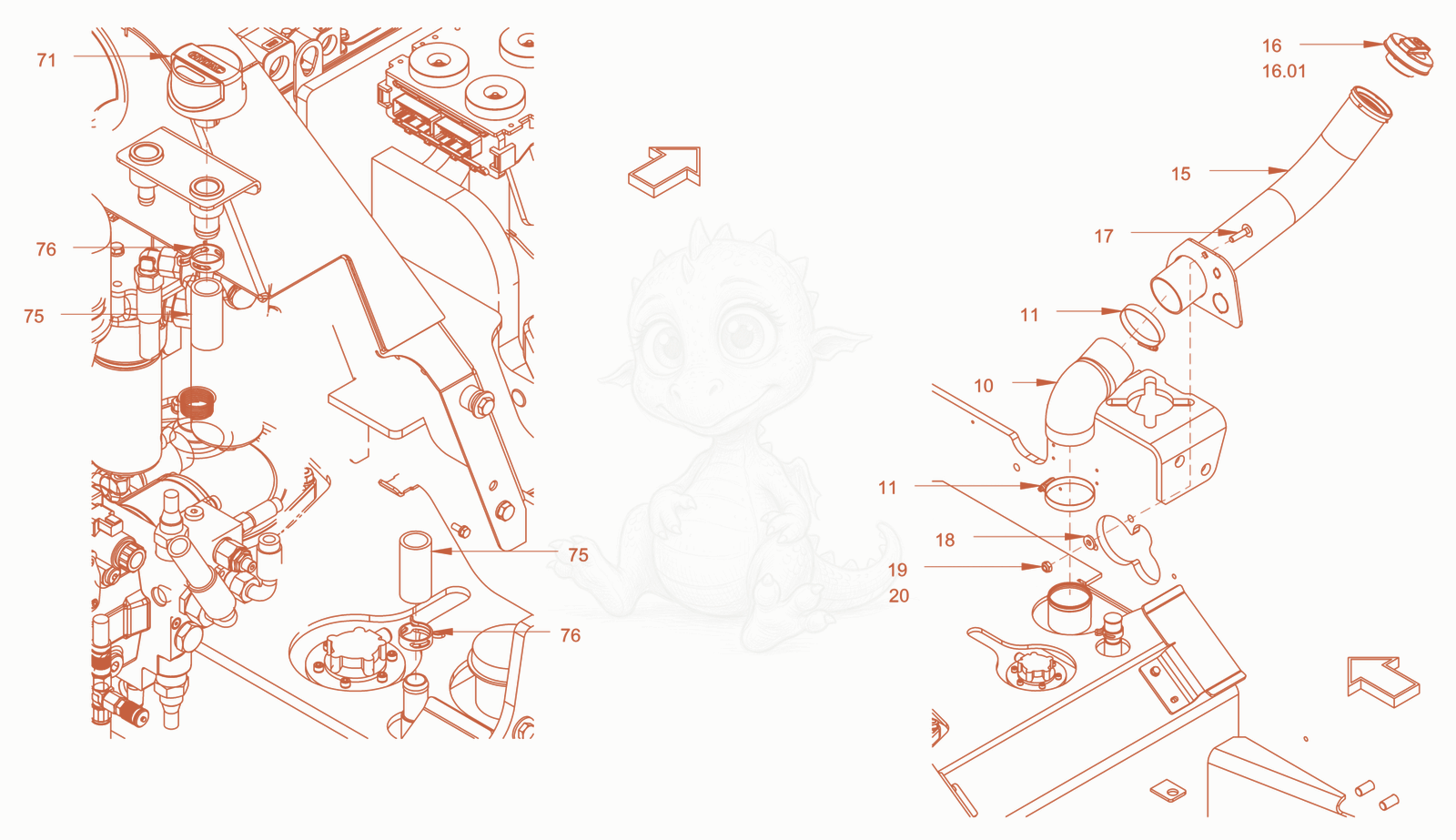

RC110USROPS fuel system Diagram

Exploded parts diagram of the fuel system of a Wacker Neuson RC110USROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100064081Not stocked
    hose×1
  • 115100024338
    $8.42
    hose clamp - 5100024338×2
  • 155100063866Not stocked
    filler neck×1
  • 165100013557
    $20.31
    Key - 5100013557×1
  • 165100063877
    $108.42
    tank cap, with lock - 5100063877×1
  • 175100034705
    $2.88
    mushroom head screw - 5100034705×2
  • 185100013521
    $1.49
    Washer - 5100013521×2
  • 195100063880Not stocked
    safety nut×2
  • 205100035325
    $1.57
    protective cap - 5100035325×2
  • 715100063888Not stocked
    vent filter×1
  • 755100034906
    $65.88
    hose - 5100034906×0.95
  • 765100034907
    $10.47
    hose clamp - 5100034907×2
