Compactor RC110 US Rops

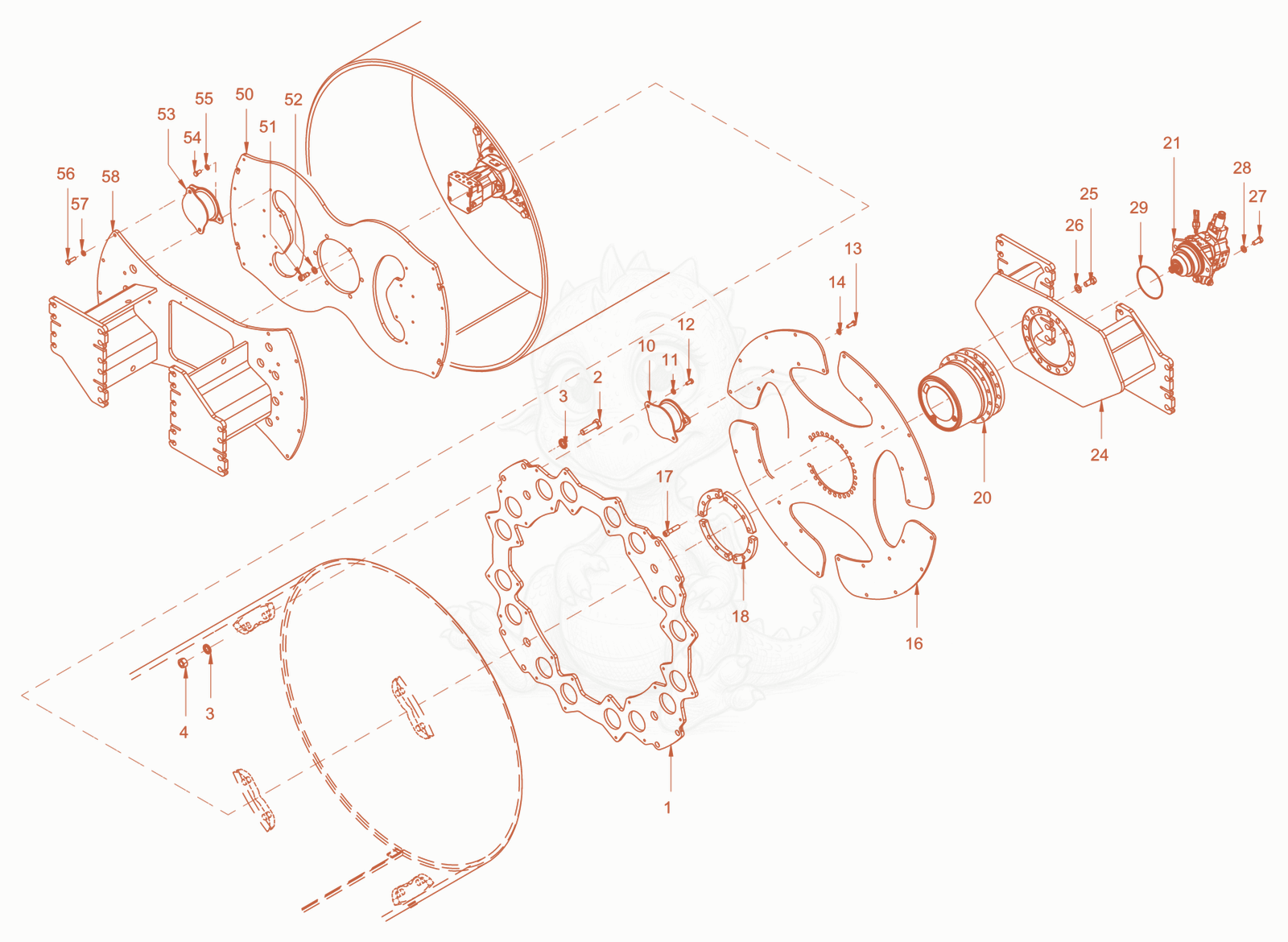

RC110USROPS mounting Diagram

Exploded parts diagram of the mounting of a Wacker Neuson RC110USROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100064062Not stocked
    driver×1
  • 25100063899Not stocked
    hexagon screw×8
  • 35100063901Not stocked
    locking washer×16
  • 45100063904Not stocked
    hexagonal nut×8
  • 105100011699
    $129.91
    Silentbloc - 5100011699×8
  • 115100012525
    $2.27
    Hexagon screw - 5100012525×16
  • 125100012968
    $1.57
    Locking washer - 5100012968×16
  • 135100022849
    $2.22
    hexagon screw - 5100022849×16
  • 145100012968
    $1.57
    Locking washer - 5100012968×16
  • 165100035624
    $5,879.39
    carrier star - 5100035624×1
  • 175100022918
    $6.19
    cheese-head screw - 5100022918×16
  • 185100035625
    $91.53
    segment - 5100035625×4
  • 205100063984Not stocked
    wheel gear×1
  • 215100035208
    $10,505.97
    variable displacement motor - 5100035208×1
  • 245100035626
    $3,446.41
    mounting - 5100035626×1
  • 255100063906Not stocked
    hexagon screw×16
  • 265100012955
    $8.38
    Locking washer - 5100012955×16
  • 275100034690
    $3.84
    hexagon screw - 5100034690×2
  • 285100012969
    $3.15
    Locking washer - 5100012969×2
  • 295100035124
    $5.90
    o-ring seal - 5100035124×1
  • 505100035628Not stocked
    driver×1
  • 515100012512
    $3.84
    Cheese-head screw - 5100012512×6
  • 525100012969
    $3.15
    Locking washer - 5100012969×6
  • 535100011699
    $129.91
    Silentbloc - 5100011699×6
  • 545100012525
    $2.27
    Hexagon screw - 5100012525×12
  • 555100012968
    $1.57
    Locking washer - 5100012968×12
  • 565100022849
    $2.22
    hexagon screw - 5100022849×12
  • 575100012968
    $1.57
    Locking washer - 5100012968×12
  • 585100035629
    $5,220.40
    mounting - 5100035629×1
