Compactor RC110 US Rops

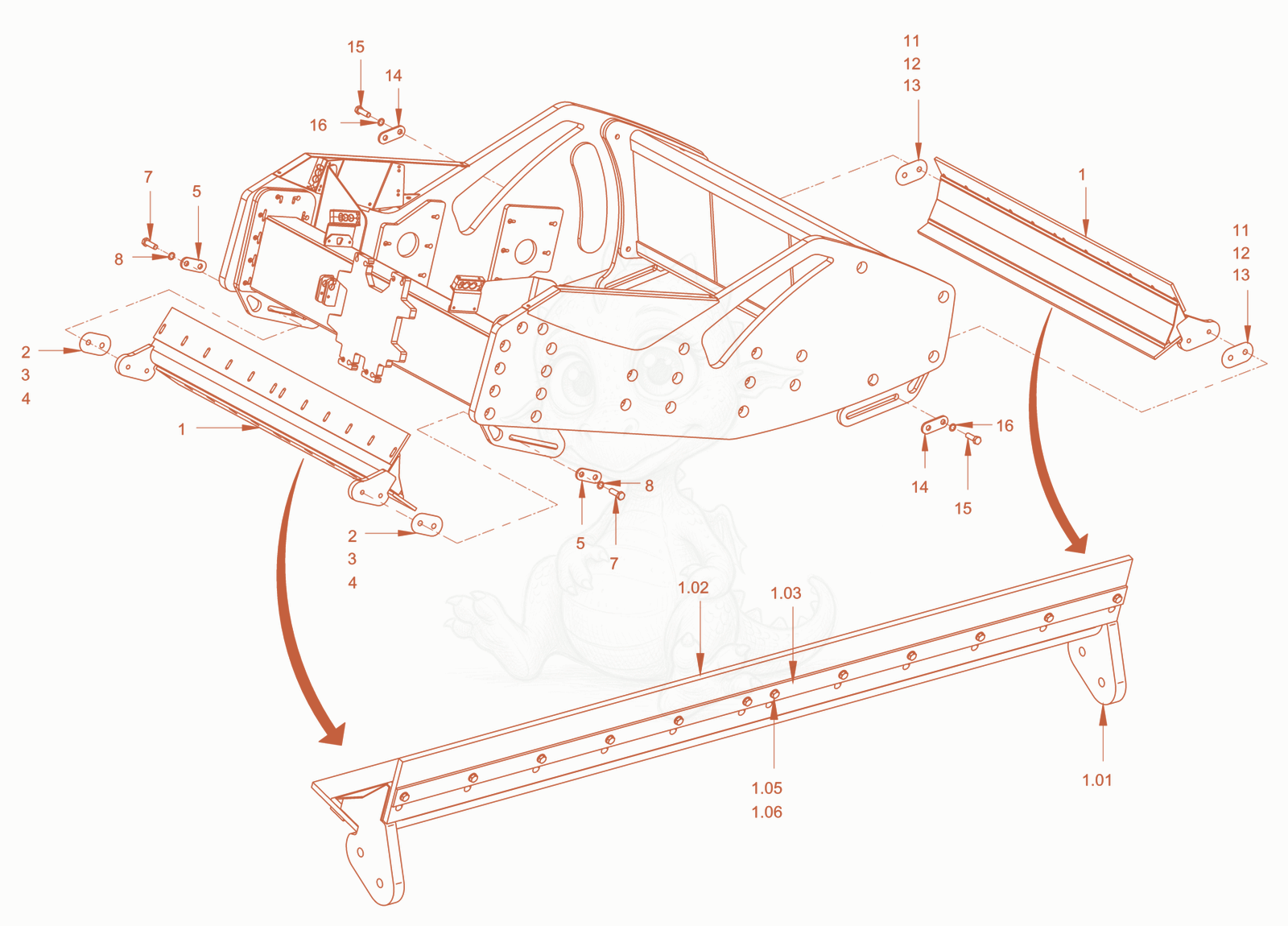

RC110USROPS v-scraper smooth roller drum Diagram

Exploded parts diagram of the v-scraper smooth roller drum of a Wacker Neuson RC110USROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012523
    $1.49
    Hexagon screw - 5100012523Unknown×24
  • 15100012967
    $1.57
    Locking washer - 5100012967Unknown×24
  • 15100035637
    $351.84
    flat steel - 5100035637Unknown×2
  • 15100035638
    $636.19
    scraper - 5100035638Unknown×2
  • 15100063909Not stocked
    mount for scraper×1
  • 15100063911Not stocked
    scraper×2
  • 25100035641
    $12.31
    distance sheet - 5100035641×4
  • 35100035642
    $21.34
    distance sheet - 5100035642×4
  • 45100035643
    $21.38
    distance sheet - 5100035643×2
  • 55100035644
    $52.69
    metal plate - 5100035644×2
  • 75100063907Not stocked
    hexagon screw×4
  • 85100063901Not stocked
    locking washer×4
  • 115100035641
    $12.31
    distance sheet - 5100035641×4
  • 125100035642
    $21.34
    distance sheet - 5100035642×4
  • 135100035643
    $21.38
    distance sheet - 5100035643×2
  • 145100035644
    $52.69
    metal plate - 5100035644×2
  • 155100063907Not stocked
    hexagon screw×4
  • 165100063901Not stocked
    locking washer×4
