RD11A-ROLLER,DOUBLE DRUM

RD11A Battery Diagram

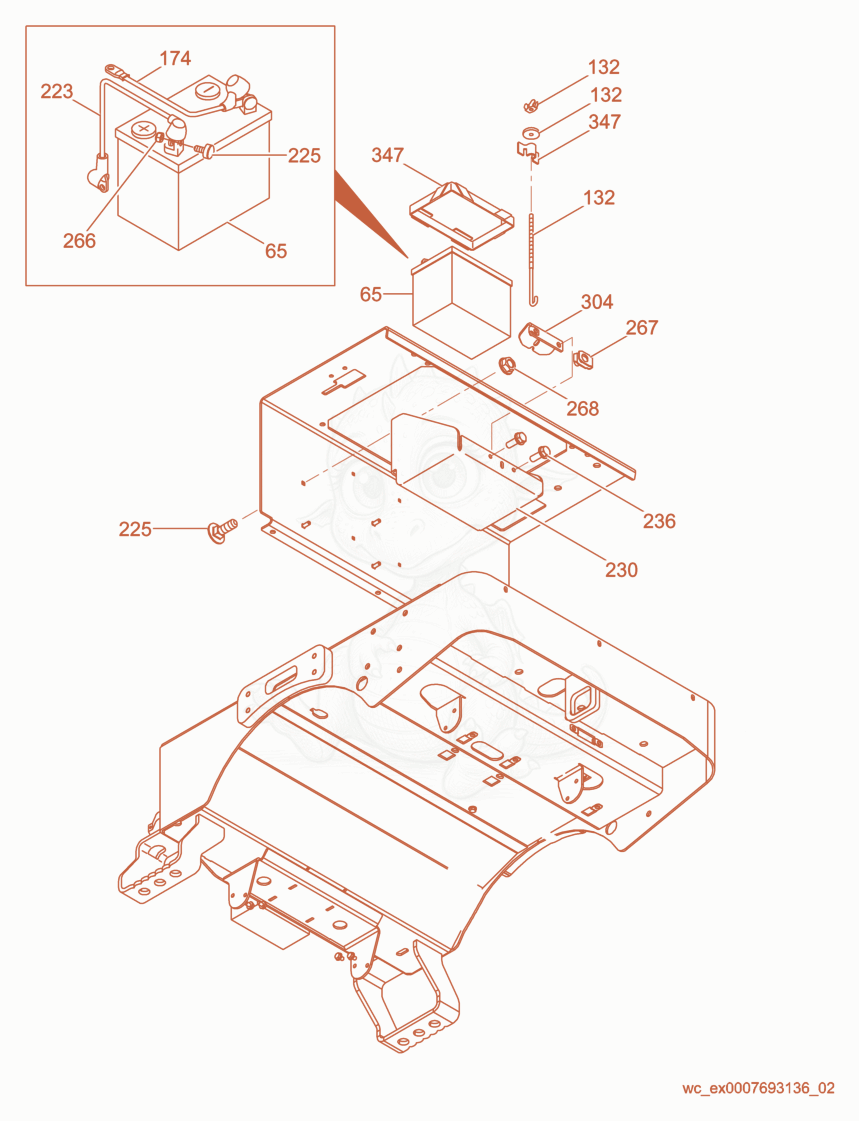

Exploded parts diagram of the Battery of a Wacker Neuson RD11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 655000118088
    $172.05
    BATTERY-340 CCA - 5000118088×1
  • 1325000157185
    $2.92
    BOLT-J .25-8,BATTERY - 5000157185×2
  • 1745000157186
    $52.81
    CABLE-BATTERY,NEGATIVE - 5000157186×1
  • 2235000157187
    $33.48
    CABLE-BATTERY,POSITIVE - 5000157187×1
  • 2255000111845
    $0.42
    BOLT-CARRIAGE M8X25 - 5000111845×6
  • 2305000157182
    $495.83
    BRACKET-BATTERY MOUNT - 5000157182×1
  • 2365000087023
    $0.35
    SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×2
  • 2665000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 2675000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×2
  • 2685000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 3045000157183
    $31.35
    BRACKET-MOUNT EXTENSION - 5000157183×1
  • 3475000157184
    $89.02
    BRACKET-BATTERY HOLD DOWN - 5000157184×1
