RD11A-ROLLER,DOUBLE DRUM

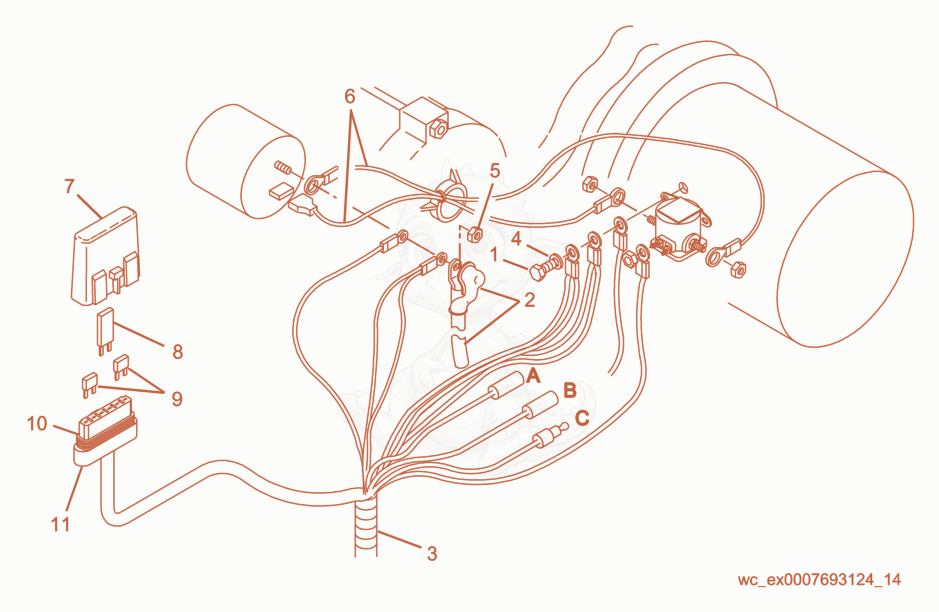

RD11A Starter Wire Connection Diagram

Exploded parts diagram of the Starter Wire Connection of a Wacker Neuson RD11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000014663
    $0.06
    SCREW M6 X 16 HX.HD. - 5000014663×1
  • 25000157187
    $33.48
    CABLE-BATTERY,POSITIVE - 5000157187×1
  • 35000164966
    $413.08
    WIRING HARNESS-MAIN - 5000164966×1
  • 45000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 55000071076
    $1.97
    NUT M8,HEX - 5000071076×1
  • 65000152777
    $62.81
    WIRE HARNESS,HONDA - 5000152777×1
  • 75000153782
    $14.10
    CAP-CONNECTOR,FUSE - 5000153782×1
  • 85000153490
    $17.85
    BREAKER-20A,MINI BLADE TYPE - 5000153490×1
  • 95000153489
    $0.42
    FUSE-20A,MINI BLADE TYPE - 5000153489×2
  • 105000153783
    $6.97
    BODY-CONNECTOR,FUSE - 5000153783×1
  • 115000153784
    $0.89
    LOCK-CONNECTOR,SECONDARY - 5000153784×1
