RD11A-ROLLER,DOUBLE DRUM

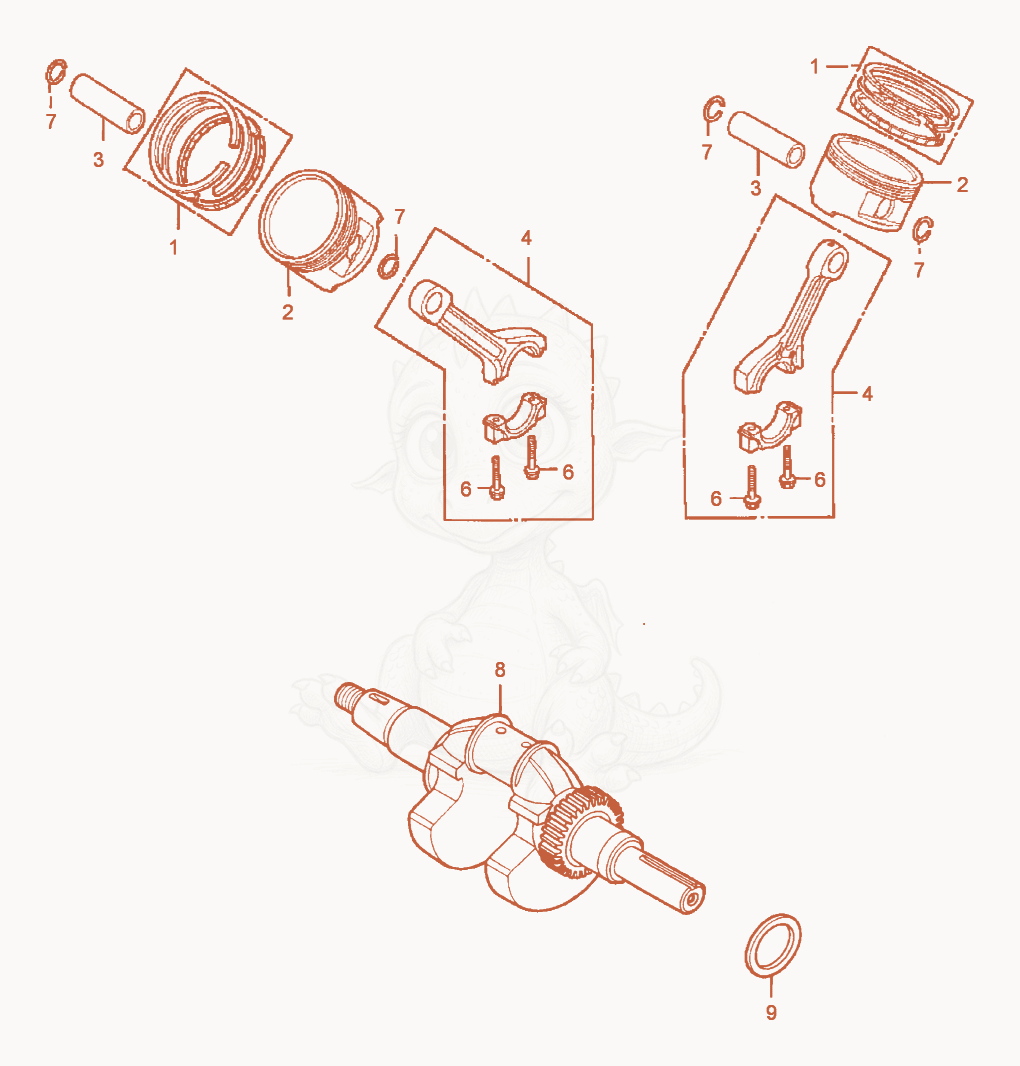

RD11A Piston/Crankshaft Diagram

Exploded parts diagram of the Piston/Crankshaft of a Wacker Neuson RD11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000152560
    $65.24
    SET-PISTON RING(STD.) - 5000152560×2
  • 25000152561
    $111.83
    PISTON(STD.) - 5000152561×2
  • 35000152562
    $20.67
    PIN-PISTON - 5000152562×2
  • 45000152563
    $266.22
    ROD-CONNECTING - 5000152563×2
  • 65000152564
    $15.50
    BOLT-CONNECTING ROD - 5000152564×4
  • 75000071645
    $1.87
    RET.RING 20.26MM,FORM C - 5000071645×4
  • 85000152507
    $839.73
    CRANKSHAFT-COMPLETE - 5000152507×1
  • 95000151850
    $14.05
    WASHER-CRANKSHAFT THRUST - 5000151850×1
