RD11A-ROLLER,DOUBLE DRUM

RD11A Main Wiring Harness Diagram

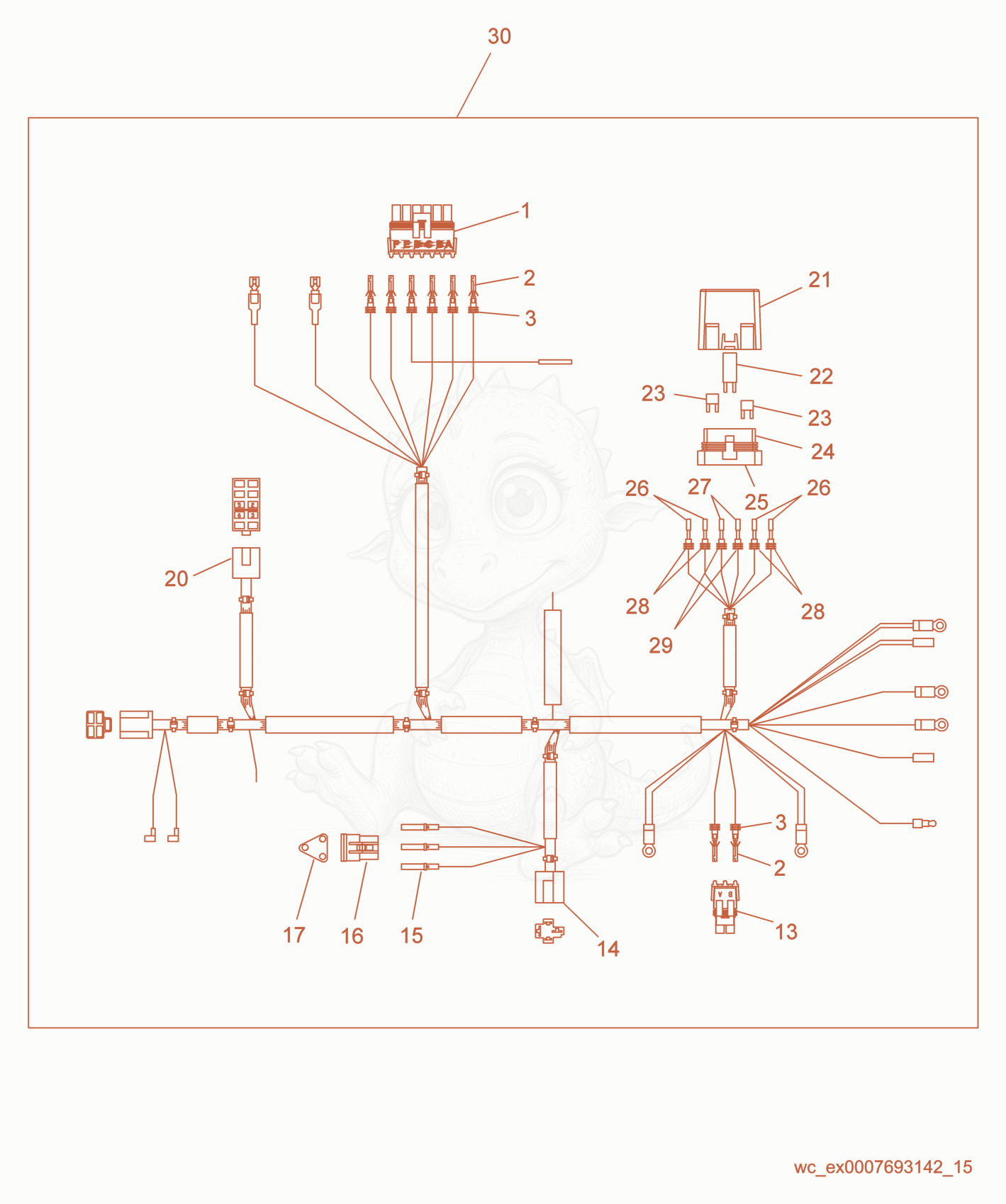

Exploded parts diagram of the Main Wiring Harness of a Wacker Neuson RD11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000086551
    $6.67
    CONNECTOR-6 WAY,PLUG - 5000086551×1
  • 25000087008
    $0.53
    SLEEVE-CONNECTOR - 5000087008×1
  • 35000087009
    $0.28
    seal- cable - 5000087009×1
  • 135000086545
    $0.77
    CONNECTOR-WEATHER PACK 2-WAY - 5000086545×1
  • 145000086997
    $10.65
    CONNECTOR-4 WAY - 5000086997×1
  • 155000111874
    $2.31
    TERMINAL-RCPT 16-18,SOCKET - 5000111874×1
  • 165000152395
    $1.80
    PLUG - 5000152395×1
  • 175000152397
    $0.43
    CAP-END - 5000152397×1
  • 205000152319
    $8.02
    CONNECTOR-SWITCH - 5000152319×1
  • 215000153782
    $14.10
    CAP-CONNECTOR,FUSE - 5000153782×1
  • 225000153490
    $17.85
    BREAKER-20A,MINI BLADE TYPE - 5000153490×1
  • 235000153489
    $0.42
    FUSE-20A,MINI BLADE TYPE - 5000153489×2
  • 245000153783
    $6.97
    BODY-CONNECTOR,FUSE - 5000153783×1
  • 255000153784
    $0.89
    LOCK-CONNECTOR,SECONDARY - 5000153784×1
  • 265000153778
    $0.78
    SLEEVE-CONNECTOR - 5000153778×4
  • 275000153781
    $0.13
    SLEEVE-CONNECTOR - 5000153781×2
  • 285000153779
    $0.63
    SEAL-CABLE - 5000153779×4
  • 295000153780
    $0.75
    SEAL-CABLE - 5000153780×2
  • 305000164966
    $413.08
    WIRING HARNESS-MAIN - 5000164966×1
