RD11A-ROLLER,DOUBLE DRUM

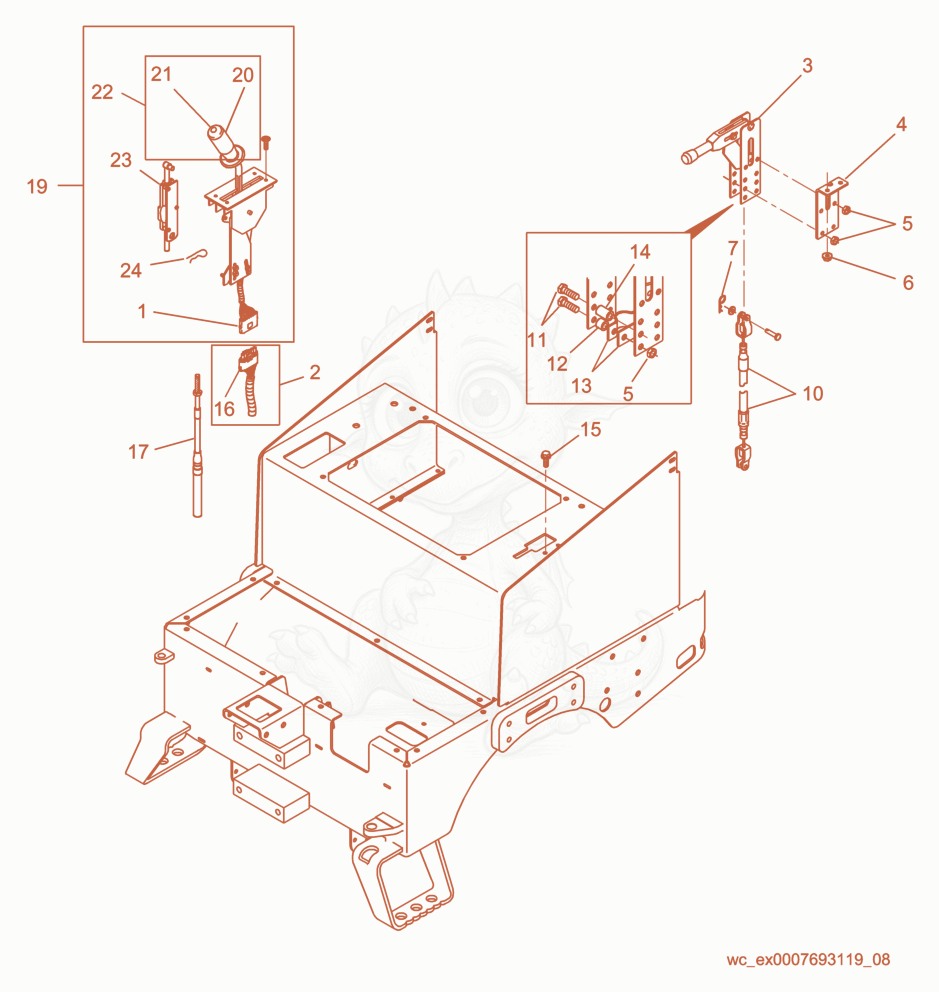

RD11A Rear Section/Controls Diagram

Exploded parts diagram of the Rear Section/Controls of a Wacker Neuson RD11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000086551
    $6.67
    CONNECTOR-6 WAY,PLUG - 5000086551×1
  • 25000118994
    $137.32
    WIRE HARNESS-MAIN - 5000118994×1
  • 35000111116
    $193.31
    CONTROL-BRAKE - 5000111116×1
  • 45000111316
    $163.28
    BRACKET-BRAKE CONTROL P-5000112007 - 5000111316×1
  • 55000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 65000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 75000075161
    $0.20
    PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×1
  • 105000114315
    $109.30
    KIT-BRAKE CABLE - 5000114315×1
  • 105000115051
    $58.44
    KIT-BRAKE CABLE HARDWARE - 5000115051×1
  • 115000011342
    $0.42
    SCREW M8 X 45 HX.HD. - 5000011342×4
  • 125000112421
    $11.14
    SPACER-BUSHING - 5000112421×2
  • 135000111047
    $6.42
    CLAMP-BRAKE CABLE - 5000111047×1
  • 145000112420
    $13.49
    SPACER-BUSHING - 5000112420×2
  • 155000087023
    $0.35
    SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×2
  • 165000086550
    $2.07
    CONNECTOR-6 WAY,RECEPTACLE - 5000086550×1
  • 175000111555
    $95.88
    CABLE-TRANSMISSION CONTROL - 5000111555×1
  • 195000111061
    $2,525.91
    CONTROL-TRANSMISSION - 5000111061×1
  • 205000112422
    $407.06
    X-5200023171 SWITCH-EXCITER - 5000112422×1
  • 215000114261
    $12.43
    CAP-RUBBER - 5000114261×1
  • 225000114262
    $403.15
    X-5200023172 KIT-GRIP HOUSING - 5000114262×1
  • 235000085833
    $161.07
    SWITCH-NEUTRAL SAFETY - 5000085833×1
  • 245000075161
    $0.20
    PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×1
