RD11A-ROLLER,DOUBLE DRUM

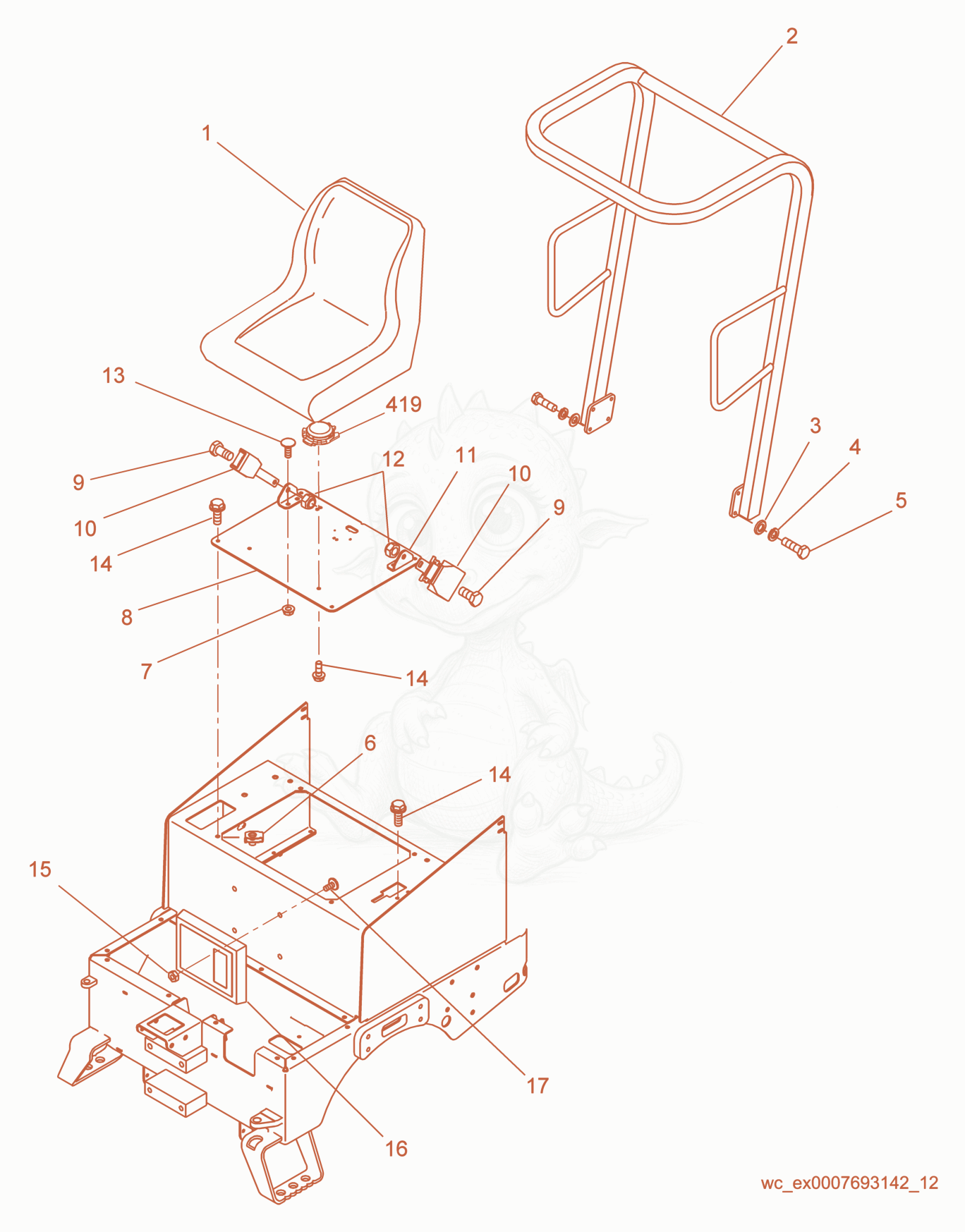

RD11A Series Drive/Seat/ROPS Diagram

Exploded parts diagram of the Series Drive/Seat/ROPS of a Wacker Neuson RD11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000110970
    $242.91
    Seat-Operator - 5000110970×1
  • 25000111095
    $1,733.08
    FRAME-ROPS - 5000111095×1
  • 35000010620
    $0.26
    WASHER B13 FLAT - 5000010620×8
  • 45000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×8
  • 55000016434
    $3.63
    SCREW M12 X 40-10.9,HX HD - 5000016434×8
  • 65000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×4
  • 75000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 85000114204
    $126.48
    PLATE-MOUNT,SEAT - 5000114204×1
  • 95000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×2
  • 105000110972
    $62.66
    KIT-SEAT BELT - 5000110972×1
  • 115000114203
    $334.62
    BRACKET-MOUNT,SEAT P-5000112007 - 5000114203×2
  • 125000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×2
  • 135000111845
    $0.42
    BOLT-CARRIAGE M8X25 - 5000111845×4
  • 145000087023
    $0.35
    SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×4
  • 155000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 165000083220
    $119.05
    HOLDER-MANUAL - 5000083220×1
  • 175000111323
    $5.12
    Bolt-Carriage M6x16-4.6,Blk EP3 - 5000111323×4
  • 4195000164603
    $28.15
    SWITCH-SEAT - 5000164603×1
