RD11A-ROLLER,DOUBLE DRUM

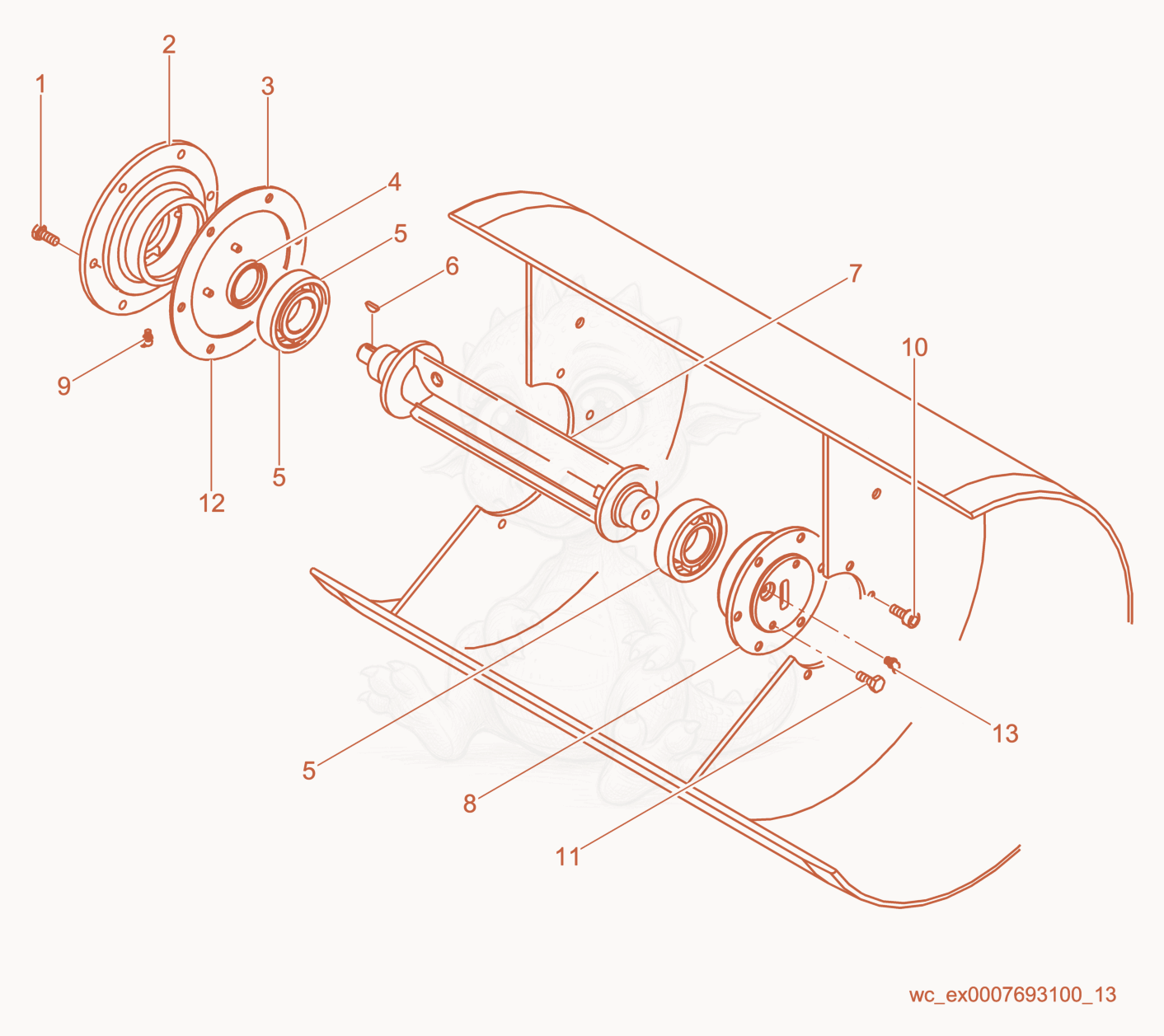

RD11A Exciter cpl. Diagram

Exploded parts diagram of the Exciter cpl. of a Wacker Neuson RD11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×6
  • 25000111053
    $97.03
    DRUM COVER P-5000176420 - 5000111053×1
  • 35000012038
    $1.87
    SCREW-SET M8 X 10 SOC. - 5000012038×2
  • 45000072113
    $12.16
    SEAL-SHAFT 45 X 60 X 8,2B - 5000072113×1
  • 55000072112
    $55.56
    BEARING-CYL.ROLLER,NJ309 - 5000072112×2
  • 65002009108
    $0.23
    KEY-WOODRUFF 3/16 X 3/4,#90 - 5002009108×1
  • 75000111051
    $682.69
    SHAFT-EXCITER - 5000111051×1
  • 85000111054
    $408.05
    Drum Cover 5000111054×1
  • 95002005948
    $2.20
    FITTING-GREASE - 5002005948×1
  • 105000011535
    $0.59
    SCREW M10 X 25 SOC.HD. - 5000011535×6
  • 115000012360
    $0.12
    SCREW M8 X 12 HX.HD. - 5000012360×2
  • 125000114529
    $13.66
    SHIM-DRUM - 5000114529×1
  • 135000150180
    $0.73
    FITTING-GREASE 90 DEG,1/4-28 - 5000150180×1
