RD15 ROLLER,DOUBLE DRUM

RD15 Speed Control Diagram

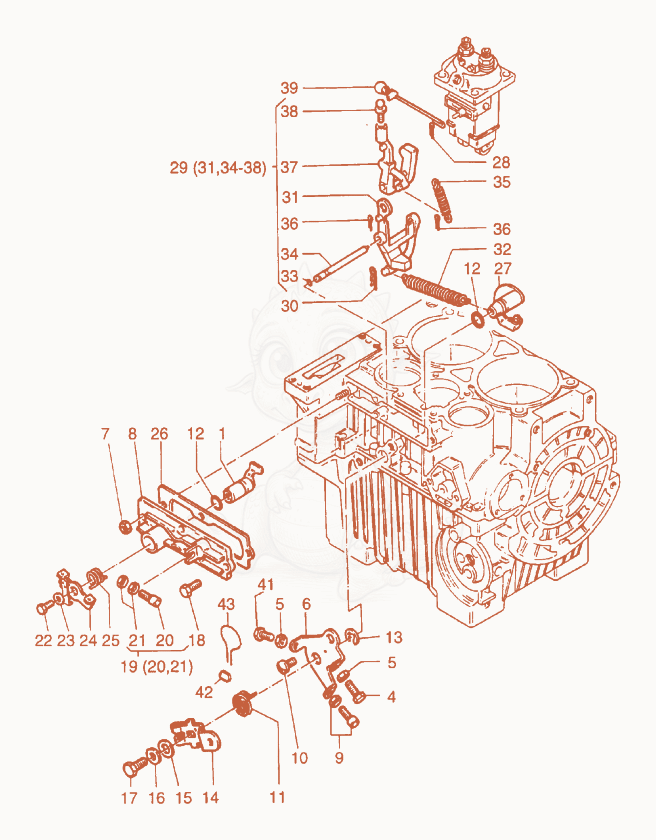

Exploded parts diagram of the Speed Control of a Wacker Neuson RD15, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000107391
$124.85
LEVER-STOP - 5000107391×1
45000011469
$0.09
SCREW M6 X 25 HX.HD. - 5000011469×1
55000010880
$0.03
NUT M6 8,HEX - 5000010880×2
65000107392
$30.50
Holder - 5000107392×1
75000010880
$0.03
NUT M6 8,HEX - 5000010880×1
85000107393
$157.40
Cover - 5000107393×1
95000107394
$37.88
SCREW-BOWDEN CABLE - 5000107394×1
105000107395
$8.06
Screw - 5000107395×1
115000107396
$37.88
SPRING-TURN - 5000107396×1
125000107397
$7.02
O-RING 8.73 X 1.78 - 5000107397×2
135000107398
$8.06
WASHER-LOCK - 5000107398×1
145000107399
$49.43
LEVER-THROTTLE - 5000107399×1
155000107400
$11.94
WASHER 12.5 X 18 X 3 - 5000107400×1
165000107401
$8.06
WASHER 6.4 - 5000107401×1
175000012356
$0.33
SCREW M6 X 10 HX.HD. - 5000012356×1
185000012358
$0.18
SCREW M6 X 18 HX.HD. - 5000012358×3
195000107402
$28.75
SCREW-BOWDEN CABLE - 5000107402×1
215000010880
$0.03
NUT M6 8,HEX - 5000010880×2
225000012356
$0.33
SCREW M6 X 10 HX.HD. - 5000012356×1
235000010624
$0.03
WASHER B6.4 FLAT - 5000010624×1
245000107403
$94.70
LEVER-STOP - 5000107403×1
255000107404
$11.94
SPRING-TURN - 5000107404×1
265000107405
$3.09
GASKET - 5000107405×1
275000107406
$110.86
LEVER-ACCELERATE - 5000107406×1
285000010506
$0.13
PIN 2.0 X 20 COTTER - 5000010506×1
295000107407
$232.49
SET-GOVERNOR LEVER - 5000107407×1
305000107408
$28.75
CLAMP-SPRING - 5000107408×1
325000107409
$28.75
Spring - 5000107409×1
335000107410
$30.50
O-RING 2.9 X 1.78 - 5000107410×2
355000107411
$37.88
Spring - 5000107411×1
365000107412
$1.61
PIN-COTTER 1.6 X 8 - 5000107412×2
395000107413
$154.66
ROD-GOVERNOR - 5000107413×1
415000107414
$20.00
SCREW-ADJUST - 5000107414×1
