RD15 ROLLER,DOUBLE DRUM

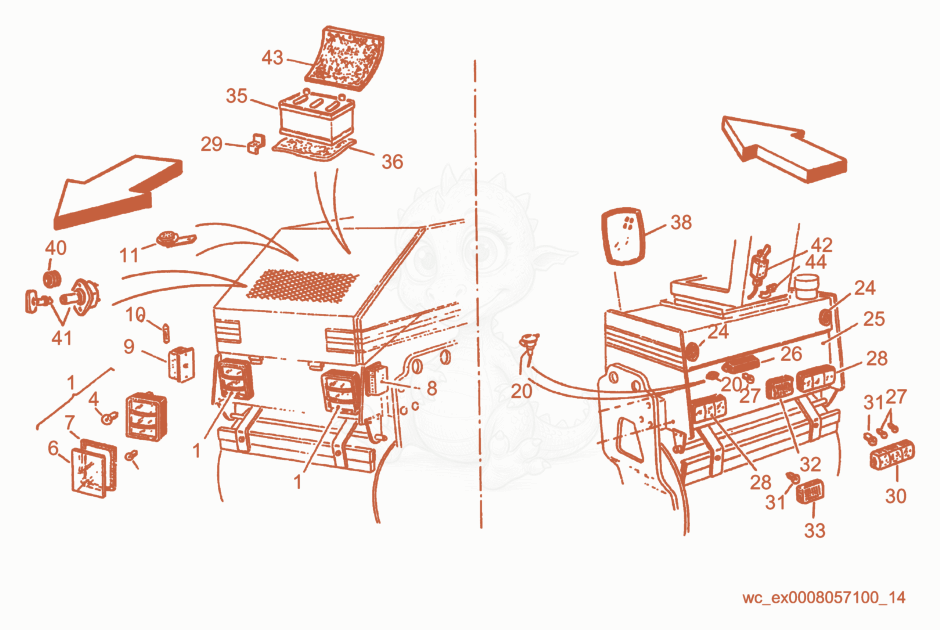

RD15 Lights Road Version/Electrical Equipment Diagram
- LIGHT - 5000112512×2
- LIGHT - 5000112540×2
- LIGHT - 5000112538×2
- LENS - 5000112514×2
- GASKET - 5000112513×2
- LIGHT-LEFT - 5000112517×2
- LIGHT - 5000113293×2
- Horn - 5000112554×1
- Receptacle - 5000112864×1
- NLA REFLECTOR - 5000113498×2
- NLA PANEL-REAR LIGHT - 5000113628×1
- NLA LIGHT - 5000112516×1
- LIGHT - 5000112537×5
- LIGHT - 5000112515×2
- Clamp - 5000113060×1
- LENS - 5000112569×2
- LIGHT - 5000112539×3
- LIGHT - 5000112510×1
- LENS - 5000112511×1
- Battery - 5000112861×1
- PAD-BATTERY - 5000112889×1
- 385000174793Not stockedSupport×1
- 385000174794Not stockedMirror reflector×1
- 405000113212Not stockedPlug (threaded)×1
- SWITCH-DISCONNECT - 5000113115×1
- KEY-DISCONNECT - 5000113116×1
- SWITCH-MICRO - 5000112865×1
- PAD-PROTECTION - 5000113613×1
- CLIP - 5000113673×1
