RD15 ROLLER,DOUBLE DRUM

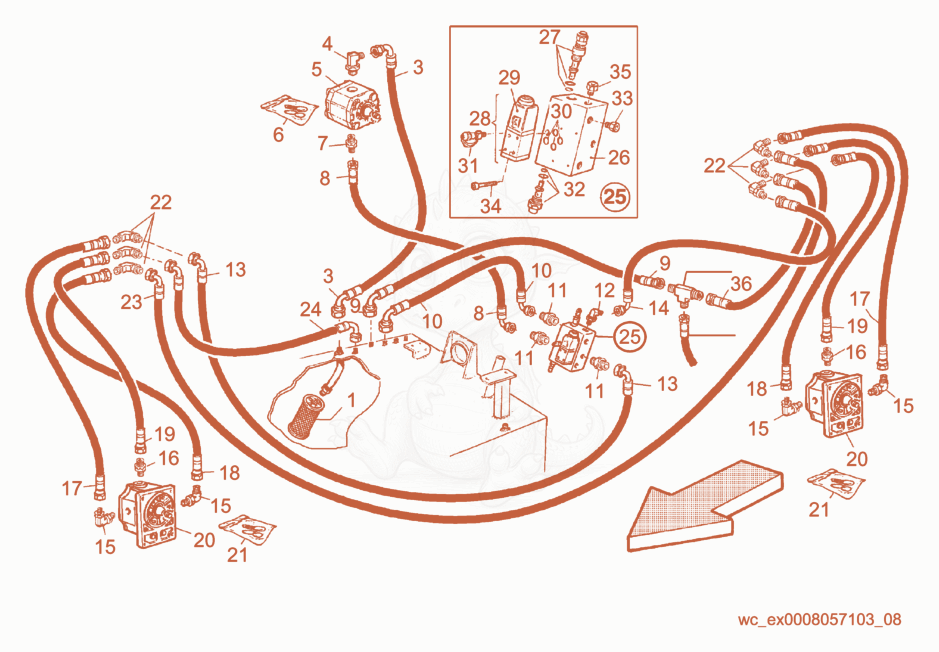

RD15 Vibrating Hydraulic System Diagram
- FILTER-OIL - 5000113589×1
- NLA HOSE - 5000113537×1
- CONNECTOR - 5000113534×1
- PUMP-HYDRAULIC - 5000115551×1
- KIT-GASKET,HYD.PUMP - 5000115552×1
- NLA FITTING-NIPPLE - 5000113524×1
- NLA O-RING - 5000113735×1
- NLA HOSE - 5000113566×1
- Hose - 5000118361×1
- HOSE - 5000113544×1
- NLA FITTING-NIPPLE - 5000113318×3
- CONNECTOR - 5000113533×1
- Hose - 5000117912×1
- Hose - 5000117913×1
- NLA CONNECTOR - 5000113528×4
- NLA FITTING - 5000112911×2
- NLA HOSE - 5000117914×2
- Hose - 5000117915×2
- NLA HOSE - 5000117916×2
- 205000117917Not stockedHydraulic motor×2
- NLA KIT-GASKET - 5000117918×2
- NLA CONNECTOR - 5000112928×6
- Hose - 5000117919×1
- HOSE - 5000113561×1
- MANIFOLD - 5000113514×1
- Manifold - 5000113670×1
- NLA VALVE - 5000112568×1
- NLA VALVE-SOLENOID - 5000112566×1
- Coil - 5000110150×1
- O-ring - 5000112481×4
- FITTING-TEST - 5000112616×1
- Valve - 5000112567×1
- FITTING-CONNECTOR - 5000112919×1
- NLA KIT-BOLT - 5000113512×1
- NLA CONNECTOR - 5000113736×1
- O-ring - 5000113740×1
- Hose - 5000117880×1
