RD15 ROLLER,DOUBLE DRUM

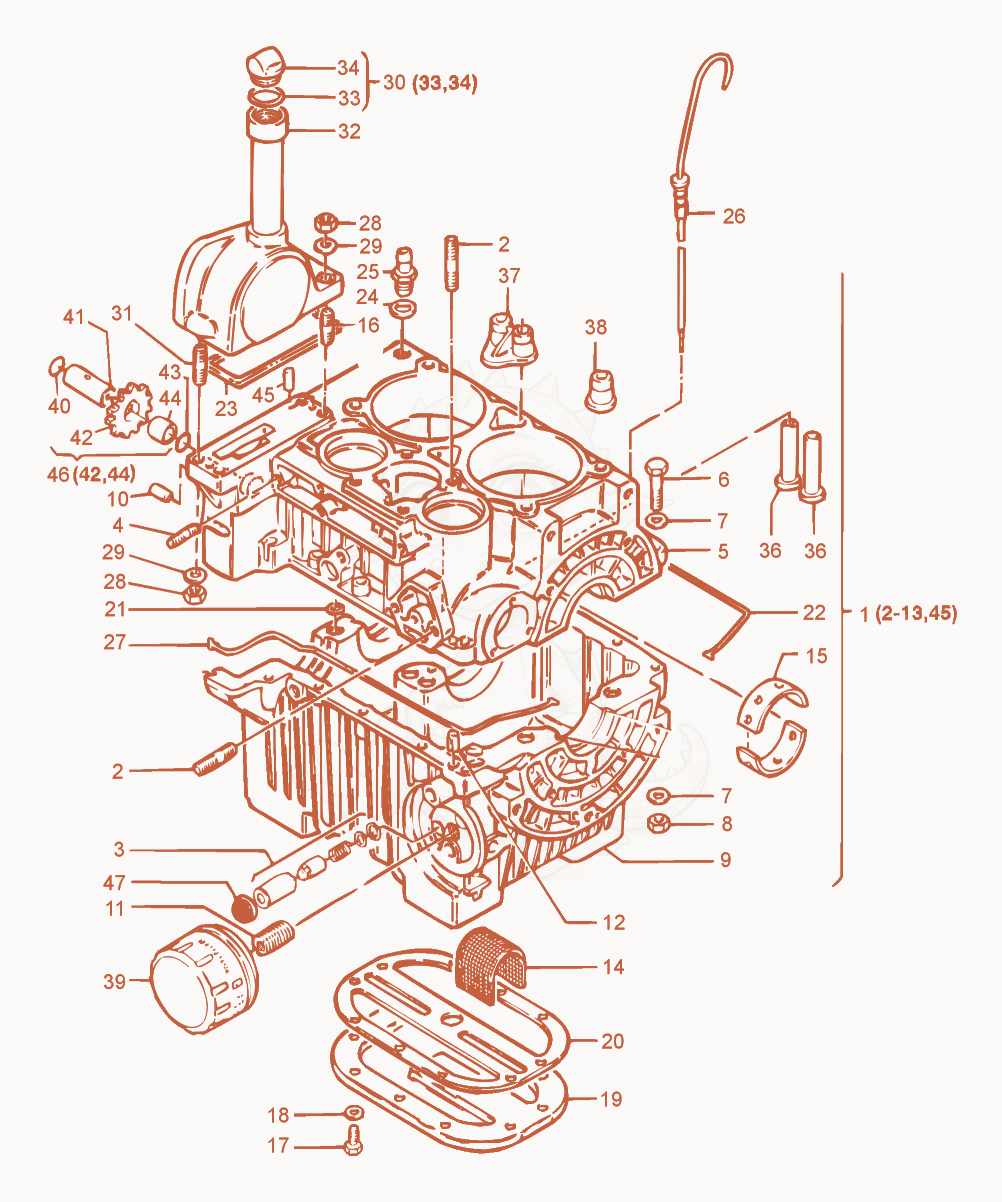

RD15 Crankcase cpl. Diagram
- Crankcase - 5000107254×1
- STUD M8 X 20 - 5000010926×6
- VALVE-PRESSURE - 5000107255×1
- STUD M6 X 18 - 5000013507×1
- SCREW M6 X 50 HX.HD. - 5000011331×10
- WASHER B6.4 FLAT - 5000010624×21
- NUT M6 8,HEX - 5000010880×10
- KEY - 5000107256×1
- ROD-THREADED - 5000107257×1
- STUD-CYLINDER - 5000107258×2
- Screw - 5000107259×1
- BEARING-SHELL - 5000107260×3
- SCREW M6 X 18 HX.HD. - 5000012358×10
- Washer - 5000107261×10
- COVER-HOUSING - 5000107262×1
- GASKET - 5000107263×1
- O-RING 14 X 1.78 - 5000107264×8
- GASKET-CRANKCASE - 5000107265×1
- GASKET - 5000107459×1
- SEAL-RING 12 X 15.5 - 5000013186×1
- FITTING-GREASE - 5000107386×1
- DIPSTICK - 5000107268×1
- GASKET-CRANKCASE - 5000107269×1
- NUT M8 - 5000107270×4
- Washer - 5000107271×4
- 305000014444Not stockedPlug (threaded)×1
- STUD M8 X 25 - 5000010927×2
- O-RING 23 X 3-70 Sh - 5000014445×1
- ROD-PUSH - 5000107302×4
- CAP-PROTECTION - 5000107272×2
- CAP-PROTECTION - 5000107273×4
- FILTER-OIL - 5000107274×1
- O-ring - 5000107275×1
- Shaft - 5000107276×1
- Shim Ring - 5000064065×1
- BUSHING - 5000107277×1
- STUD-CYLINDER 6M6X14 9 - 5000107458×2
- GEAR-COMPLETE - 5000107279×1
- SCREEN - 5000107280×1
