RD15 ROLLER,DOUBLE DRUM

RD15 Driving Hydraulic System Diagram

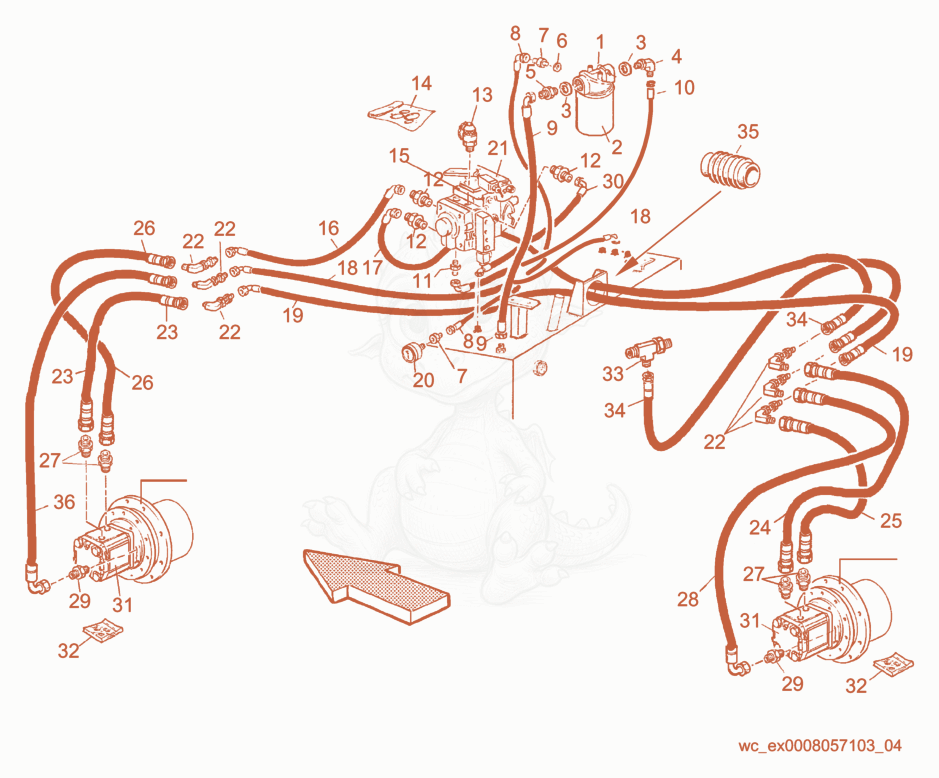

Exploded parts diagram of the Driving Hydraulic System of a Wacker Neuson RD15, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000112978
$285.03
BRACKET-FILTER,OIL - 5000112978×1
25000112580
$67.16
ELEMENT - 5000112580×1
35000112841
$4.82
WASHER-COPPER - 5000112841×2
45000113531
$170.29
CONNECTOR - 5000113531×1
55000112912
$44.14
FITTING - 5000112912×1
65000113482
$3.50
WASHER-COPPER - 5000113482×1
75000113521
$8.87
FITTING - 5000113521×1
85000113571
$90.41
HOSE - 5000113571×1
95000113567
$250.39
HOSE - 5000113567×1
105000113568
$247.01
NLA HOSE - 5000113568×1
115000112912
$44.14
FITTING - 5000112912×1
125000113526
$159.68
NLA FITTING-NIPPLE - 5000113526×3
135000112616
$17.08
FITTING-TEST - 5000112616×1
145000112593
$750.82
KIT-GASKET - 5000112593×1
155000112592
$10,628.89
NLA PUMP-HYDRAULIC - 5000112592×1
165000113564
$169.26
HOSE - 5000113564×1
175000117869
$136.60
Hose - 5000117869×1
185000113543
$149.72
NLA HOSE - 5000113543×1
195000117870
$204.15
Hose - 5000117870×1
205000113587
$63.83
METER-VACUUM - 5000113587×1
215000113595
$4,501.16
NLA CONTROL-UNIT - 5000113595×1
225000113532
$118.53
NLA CONNECTOR - 5000113532×6
235000117871
$80.59
NLA HOSE - 5000117871×1
245000117872
$86.98
NLA HOSE - 5000117872×1
255000117873
$103.11
NLA HOSE - 5000117873×1
265000117874
$88.59
hose - 5000117874×1
275000113317
$91.07
NLA FITTING-NIPPLE - 5000113317×4
285000117875
$83.46
Hose - 5000117875×1
295000117876
$152.09
Adapter - 5000117876×2
305000113551
$194.60
HOSE - 5000113551×1
315000117877
$5,838.42
NLA MOTOR-HYDRAULIC - 5000117877×2
325000117878
$244.55
KIT-GASKET - 5000117878×2
335000117879
$87.15
Connector - 5000117879×1
345000117880
$124.54
Hose - 5000117880×1
355000112974
$341.84
NLA BELLOW - 5000112974×1
365000112942
$45.07
HOSE-HYDRAULIC - 5000112942×1
