RD28-120c CN

RD28-120CCN rotary beacon Diagram

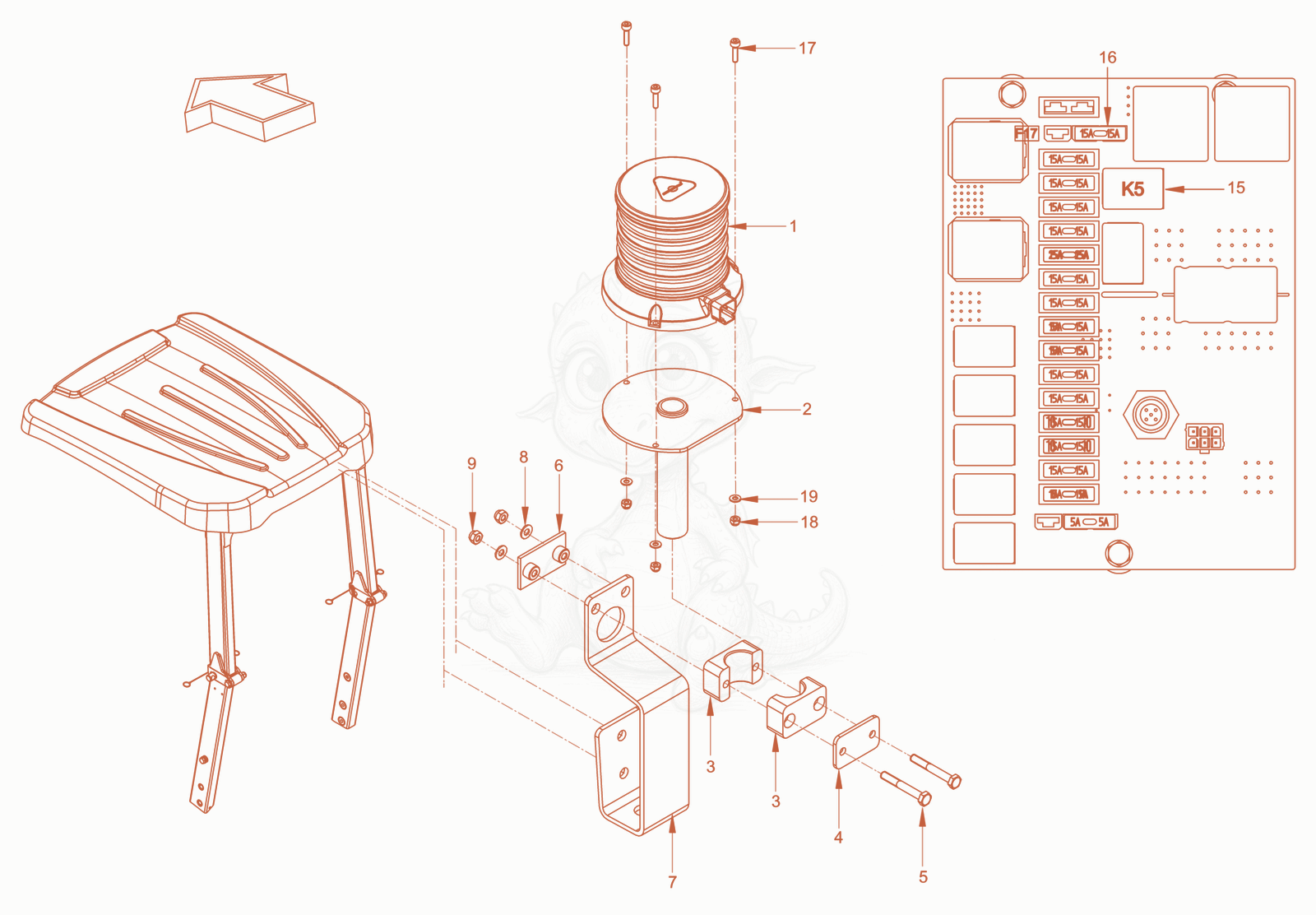

Exploded parts diagram of the rotary beacon of a Wacker Neuson RD28-120CCN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100070405Not stocked
    rotary beacon×1
  • 25100070406Not stocked
    holder×1
  • 35100013470
    $1.66
    Half-clip - 5100013470×2
  • 45100013465
    $1.93
    Cover plate - 5100013465×1
  • 55100013467
    $1.57
    Hexagon screw - 5100013467×2
  • 65100011868
    $4.59
    Weld-on plate - 5100011868×1
  • 75100070407Not stocked
    holder×1
  • 85100012966
    $1.57
    Locking washer - 5100012966×2
  • 95100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 155100011583
    $45.65
    Relay - 5100011583×1
  • 165100013580
    $1.83
    Blade fuse - 5100013580×1
  • 175100013606
    $1.49
    Cheese-head screw - 5100013606×3
  • 185100011586
    $1.57
    Hexagon nut - 5100011586×3
  • 195100013438
    $1.57
    Washer - 5100013438×3
