RD28-120CCN cooling (engine/hydraulic oil) Diagram

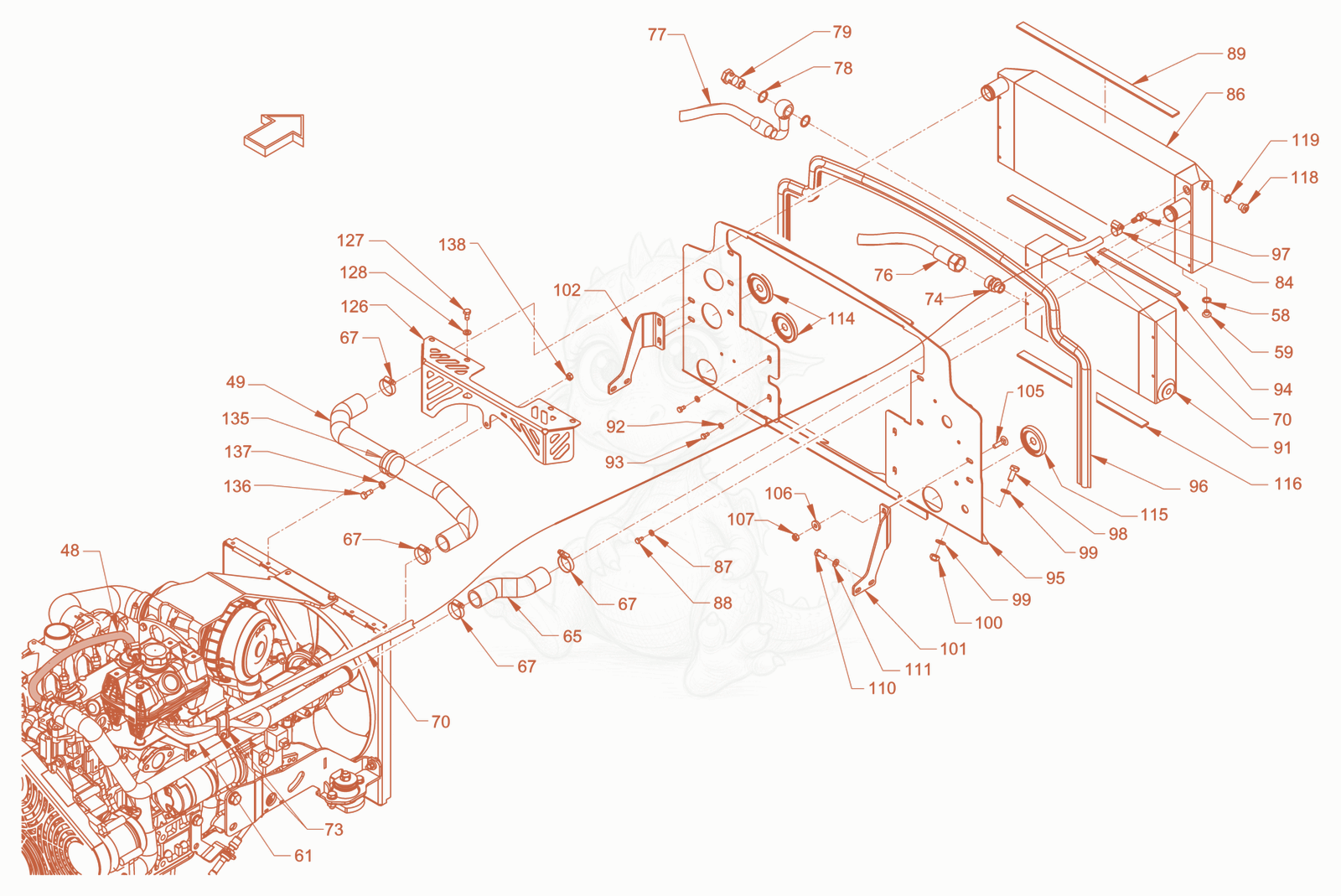

Exploded parts diagram of the cooling (engine/hydraulic oil) of a Wacker Neuson RD28-120CCN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 485100024981
    $31.08
    cooling-water hose - 5100024981×0.4
  • 495100012167
    $73.33
    Flexible tubing - 5100012167×1
  • 585100012492
    $8.60
    Sealing ring - 5100012492×1
  • 595100013516
    $3.53
    Screw plug - 5100013516×1
  • 615100024981
    $31.08
    cooling-water hose - 5100024981×0.4
  • 655100012174
    $25.89
    Flexible tubing - 5100012174×1
  • 675100011637
    $5.37
    Hose clip - 5100011637×4
  • 705100024981
    $31.08
    cooling-water hose - 5100024981×0.7
  • 735100013573
    $1.49
    Wire fastener - 5100013573×4
  • 745100013477
    $14.10
    Straight screwed socket - 5100013477×1
  • 765100012915
    $239.23
    Flexible tubing - 5100012915×1
  • 775100012446
    $303.01
    Flexible tubing - 5100012446×1
  • 785100013003
    $3.23
    Sealing ring - 5100013003×2
  • 795100012918
    $13.62
    Hollow-core screw - 5100012918×1
  • 845100013179
    $5.50
    Hose clip - 5100013179×1
  • 865100070387Not stocked
    water cooler×1
  • 875100011636
    $1.57
    Washer - 5100011636×6
  • 885100012600
    $1.57
    Hexagon screw - 5100012600×6
  • 895100011866
    $14.81
    Sealing tape - 5100011866×0.5
  • 915100070388Not stocked
    oil cooler×1
  • 925100011636
    $1.57
    Washer - 5100011636×2
  • 935100012600
    $1.57
    Hexagon screw - 5100012600×2
  • 945100011866
    $14.81
    Sealing tape - 5100011866×0.4
  • 955100070389Not stocked
    console×1
  • 965100013642
    $33.65
    Sealing profile - 5100013642×1.67
  • 975100050679Not stocked
    hose nozzle×1
  • 985100011479
    $1.57
    Hexagon screw - 5100011479×2
  • 995100012967
    $1.57
    Locking washer - 5100012967×4
  • 1005100012547
    $1.49
    Hexagon nut - 5100012547×2
  • 1015100012048
    $31.23
    Metal plate - 5100012048×1
  • 1025100012047
    $32.53
    Metal plate - 5100012047×1
  • 1055100012780
    $1.57
    Mushroom head screw - 5100012780×4
  • 1065100012966
    $1.57
    Locking washer - 5100012966×4
  • 1075100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 1105100012515
    $1.49
    Hexagon screw - 5100012515×4
  • 1115100012966
    $1.57
    Locking washer - 5100012966×4
  • 1145100011592
    $23.87
    Grommet - 5100011592×2
  • 1155100011592
    $23.87
    Grommet - 5100011592×1
  • 1165100011866
    $14.81
    Sealing tape - 5100011866×0.4
  • 1185100012444
    $21.78
    Screw plug - 5100012444×2
  • 1195100013000
    $1.57
    Sealing ring - 5100013000×2
  • 1265100012845
    $86.46
    Guard - 5100012845×1
  • 1275100012515
    $1.49
    Hexagon screw - 5100012515×4
  • 1285100012966
    $1.57
    Locking washer - 5100012966×4
  • 1355100011532
    $3.53
    Pipe clip - 5100011532×1
  • 1365100012517
    $1.57
    Hexagon screw - 5100012517×1
  • 1375100012966
    $1.57
    Locking washer - 5100012966×2
  • 1385100012546
    $1.57
    Hexagon nut - 5100012546×1
