RD28-120c CN

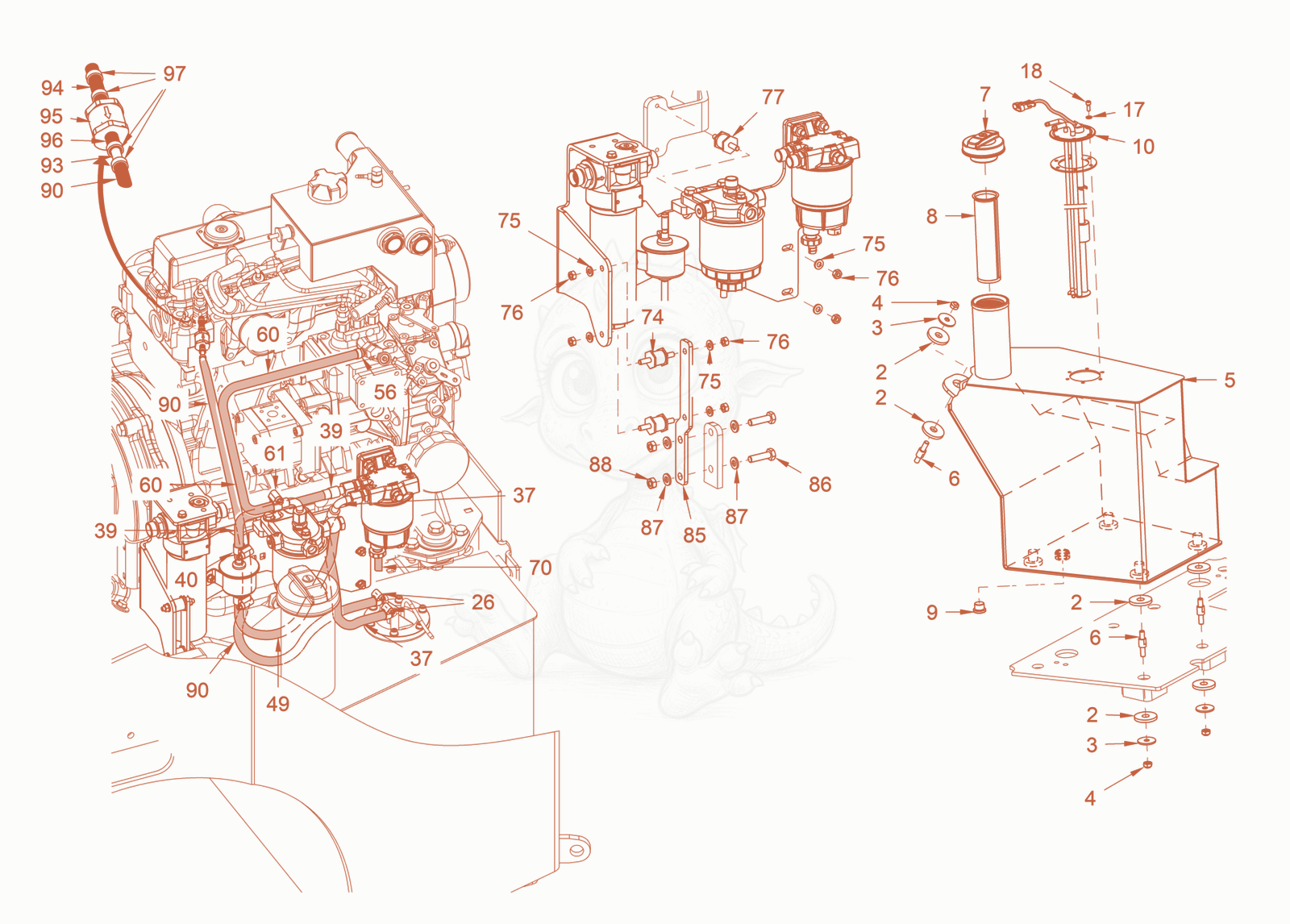

RD28-120CCN fuel system Diagram
- Rubber washer - 5100011731×10
- Washer - 5100011824×5
- Hexagon nut - 5100012547×5
- 55100070383Not stockeddiesel tank×1
- Spacer pin - 5100011730×4
- 75100070385Not stockedtank cap, with lock×1
- Strainer - 5100011990×1
- Screw plug - 5100011665×1
- Fuel gauge - 5100012475×1
- Sealing ring - 5100013502×6
- Cheese-head screw - 5100011443×6
- Hose clip - 5100013179×2
- Flexible tubing - 5100013186×1
- Flexible tubing - 5100012933×1
- Hose clip - 5100013179×2
- Flexible tubing - 5100012622×1
- Hose clip - 5100013179×1
- Flexible tubing - 5100013216×0.5
- Hose clip - 5100013179×1
- Reducing piece - 5100013567×1
- Flexible tubing - 5100012593×1
- Flexible tubing - 5100013640×0.2
- Pipe clip - 5100013540×2
- Silentbloc - 5100012564×2
- Locking washer - 5100012965×6
- Hexagon nut - 5100012545×6
- Silentbloc - 5100012919×2
- Bracket - 5100012455×1
- Hexagon screw - 5100013510×2
- Washer - 5100013094×4
- Hexagon nut - 5100012546×2
- Flexible tubing - 5100013216×0.63
- Reducing piece - 5100013567×1
- Flexible tubing - 5100013640×0.08
- 955100082397Not stockednon-return valve×1
- Flexible tubing - 5100013640×0.08
- Pipe clip - 5100013540×4
