RD28-120c CN

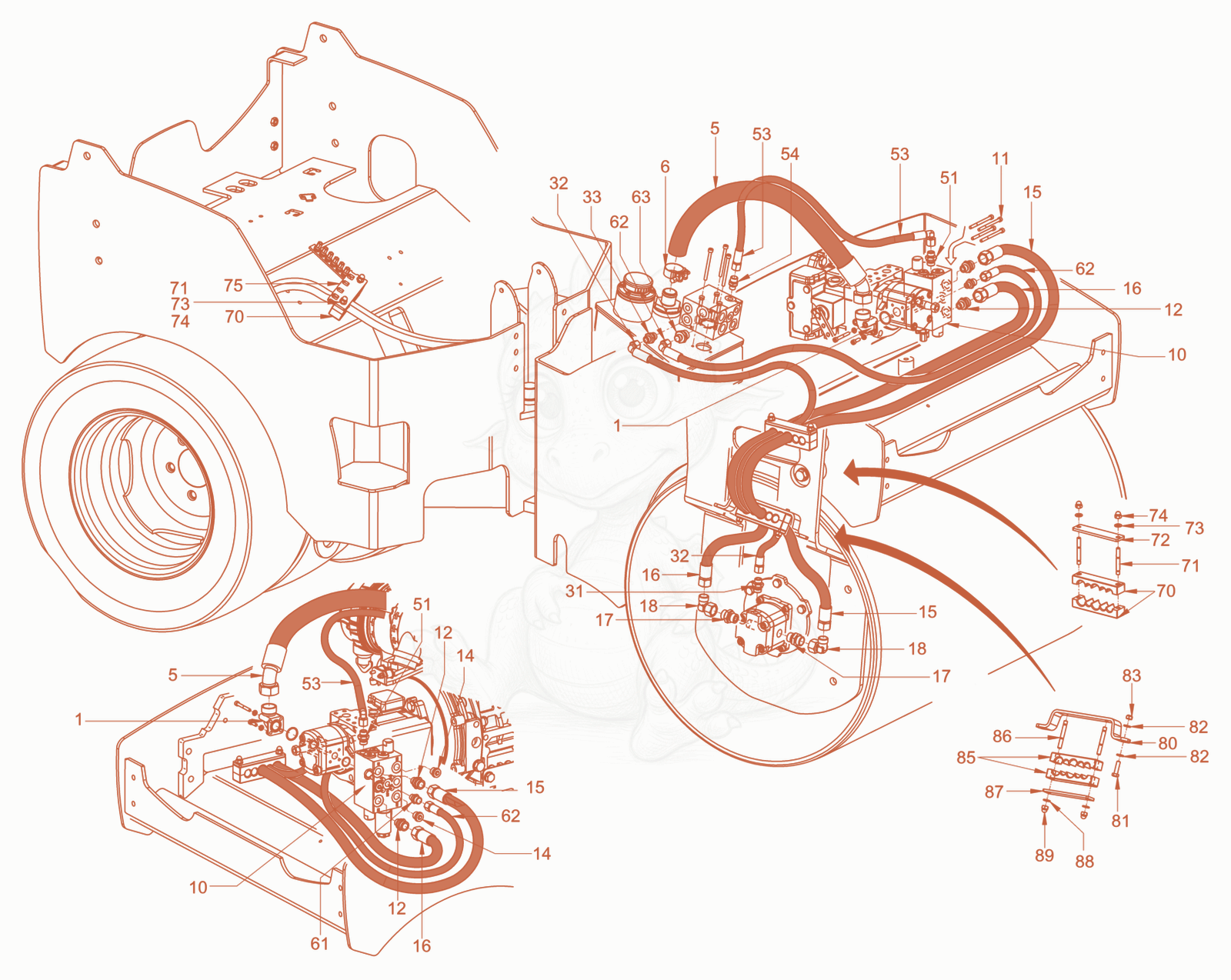

RD28-120CCN vibration drive Diagram
- Angle flange screwing - 5100013218×1
- Flexible tubing - 5100012570×1
- Hose clip - 5100011896×1
- 105100063128Not stockedValve block×1
- Cheese-head screw - 5100012815×4
- Straight screwed socket - 5100013603×2
- Screw plug - 5100011855×2
- Flexible tubing - 5100011509×1
- Flexible tubing - 5100012062×1
- Straight screwed socket - 5100013476×2
- Elbow adjustable - 5100013483×2
- Straight screwed socket - 5100013447×1
- Flexible tubing - 5100013496×1
- Straight screwed socket - 5100013553×1
- Straight screwed socket - 5100013553×1
- Flexible tubing - 5100011456×1
- Straight screwed socket - 5100013474×1
- Straight screwed socket - 5100013474×1
- Flexible tubing - 5100012305×1
- Straight screwed socket - 5100013499×1
- Half-clip - 5100012270×6
- Stud bolt - 5100012946×6
- Cover plate - 5100012298×2
- Locking washer - 5100012966×6
- Hexagon nut - 5100012546×6
- Metal plate - 5100012051×1
- Clamp support - 5100012256×1
- Hexagon screw - 5100013510×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×2
- Half-clip - 5100012270×2
- Stud bolt - 5100012946×2
- Cover plate - 5100012298×1
- Locking washer - 5100012966×2
- Cap nut - 5100011525×2
