RD28-120c CN

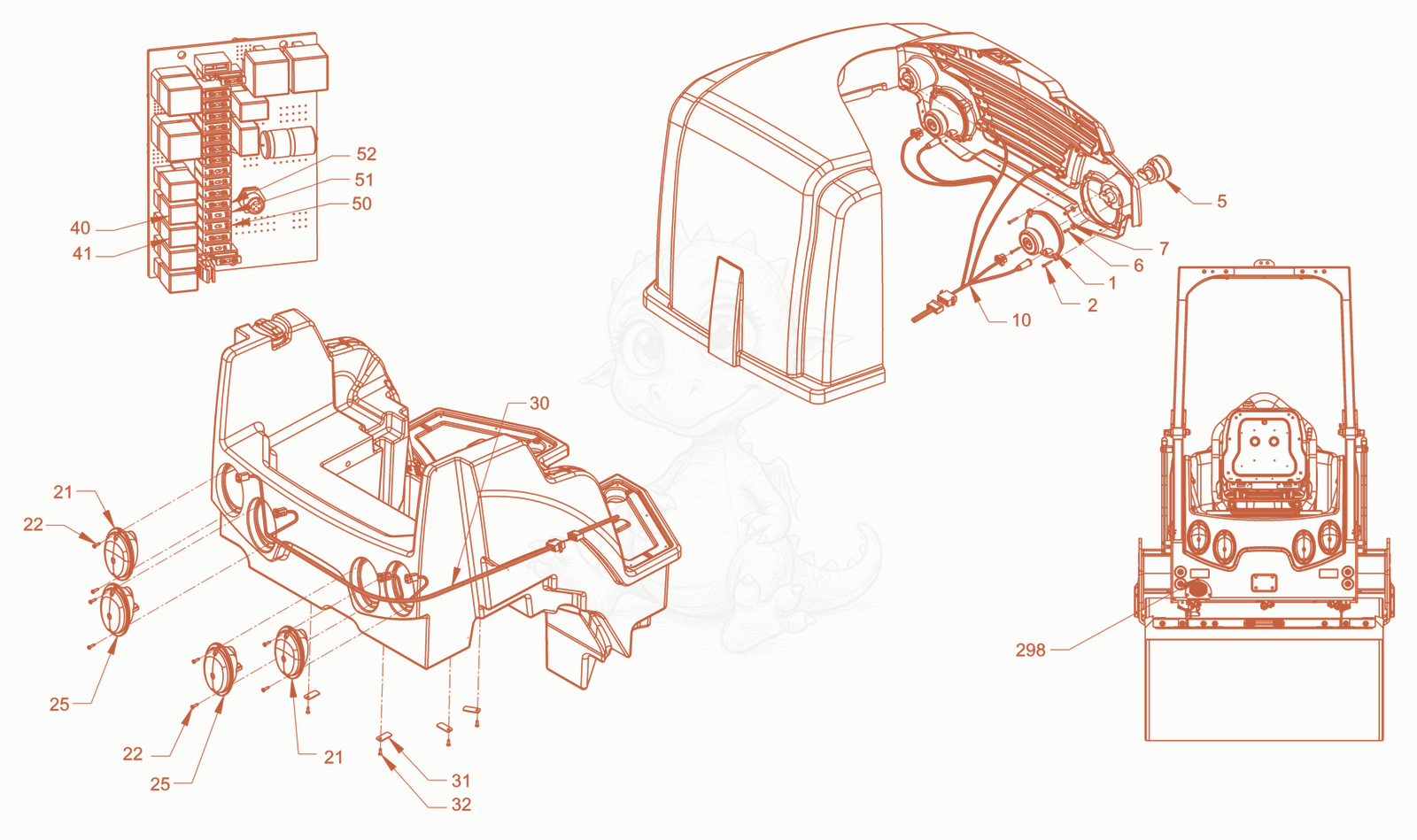

RD28-120CCN electrical system lighting Diagram
- headlight - 5100065328×2
- Fillister head screw - 5100013490×6
- Direction indicator - 5100011800×2
- Fillister head screw - 5100011739×4
- Washer - 5100013453×4
- wire harness (lighting) - 5100017997×1
- Tail light - 5100011802×2
- Sheet metal screw - 5100011607×8
- Reversing light - 5100011801×2
- Wire harness (lighting) - 5100012032×1
- Metal plate - 5100011728×4
- Sheet metal screw - 5100011902×4
- Relay - 5100011583×1
- Relay - 5100011583×1
- Blade fuse - 5100013579×1
- Blade fuse - 5100013579×1
- Blade fuse - 5100013580×1
- Rear reflector - 5100011748×2
