RTD-SC4 TRENCH ROLLER

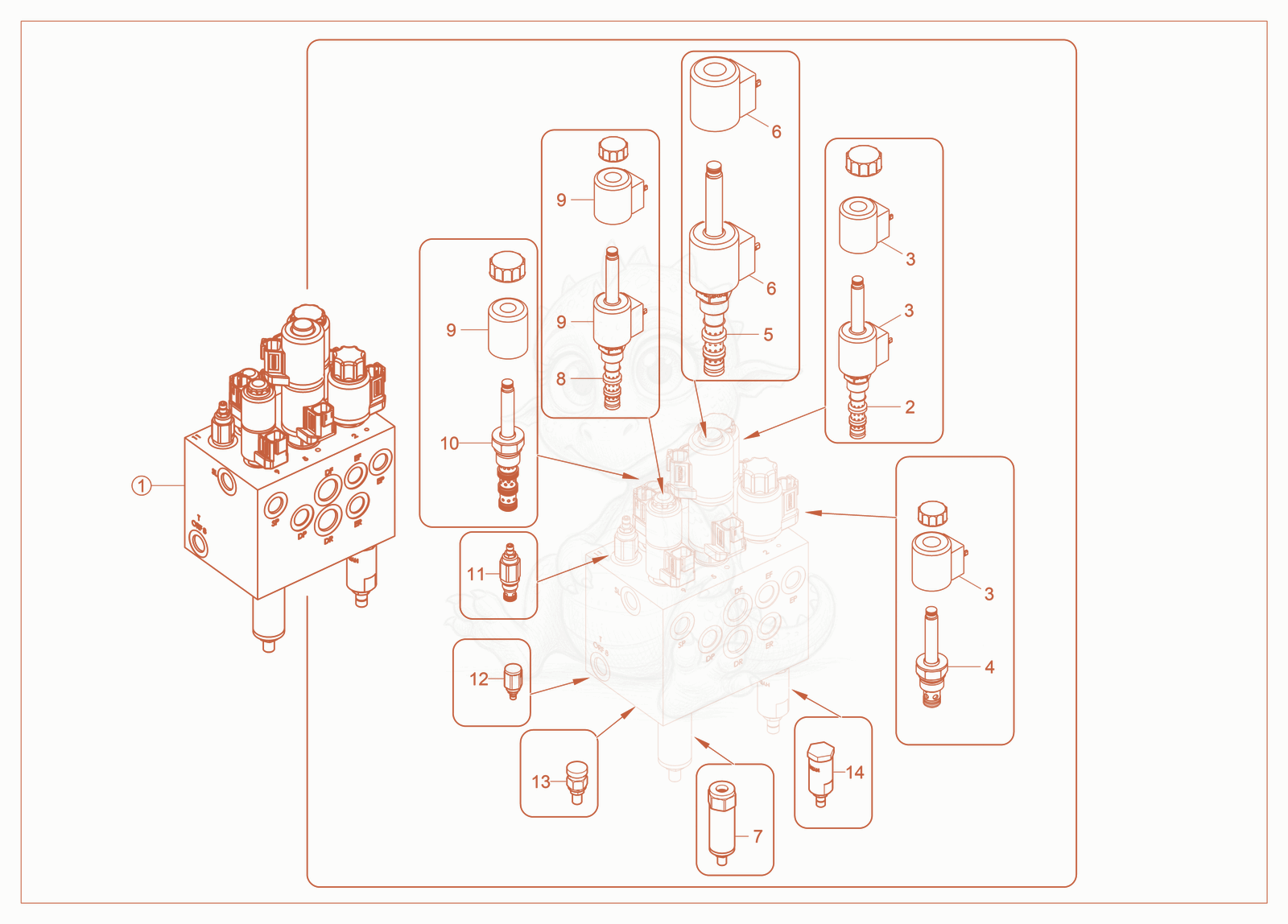

RT-SC4 Control Block (Exploded View) Diagram

Exploded parts diagram of the Control Block (Exploded View) of a Wacker Neuson RT-SC4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100082624Not stocked
    MAIN VALVE RT×1
  • 25100081085Not stocked
    VALVE-SOLENOID×1
  • 35100081091Not stocked
    COIL×3
  • 45100016787
    $126.72
    Valve-Solenoid,Brake - 5100016787×1
  • 55100081086Not stocked
    VALVE-SOLENOID×1
  • 65100081092Not stocked
    COIL×2
  • 75100081088Not stocked
    VALVE-RELIEF×1
  • 85100081090Not stocked
    VALVE×1
  • 95100081093Not stocked
    COIL×3
  • 101000437948
    $121.41
    valve - 1000437948×1
  • 115100083640Not stocked
    VALVE-RELIEF×1
  • 125100083832Not stocked
    VALVE×1
  • 135100083831Not stocked
    VALVE×1
  • 145100083830Not stocked
    VALVE×1
