RTD-SC4 TRENCH ROLLER

RT-SC4 Exciter Hydraulic System Diagram

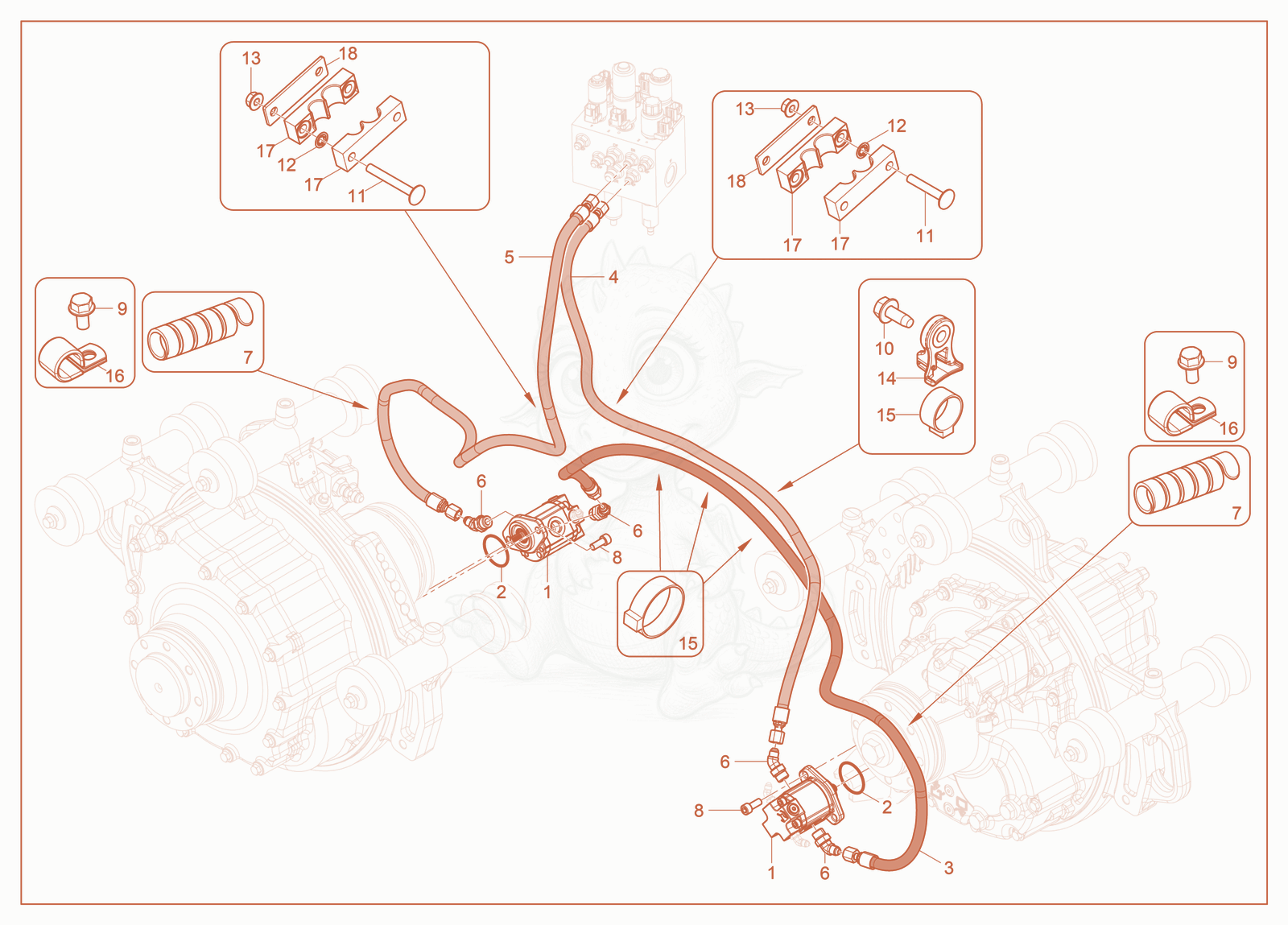

Exploded parts diagram of the Exciter Hydraulic System of a Wacker Neuson RT-SC4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100072674Not stocked
    MOTOR EXCITER×2
  • 21000367247Not stocked
    O-ring×2
  • 35100070996Not stocked
    HOSE ASSEMBLY×1
  • 45100071001Not stocked
    HOSE ASSEMBLY×1
  • 55100071010Not stocked
    HOSE ASSEMBLY×1
  • 61000534392
    $2.94
    FITTING HYD 08MB-06MJ45 - 1000534392×4
  • 75100077913Not stocked
    HOSE GUARD×2
  • 81000472605
    $1.09
    SCREW-M10x25-SOC.HD-10.9-BLK.OX - 1000472605×4
  • 95100071578
    $0.94
    SCREW-M8x16-HEX.FLG.HD-8.8-MAG565 - 5100071578×4
  • 105100061318
    $0.50
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×1
  • 111000405985Not stocked
    Bolt×4
  • 125200003962
    $0.23
    WASHER-M8,RETAINING - 5200003962×4
  • 131000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×4
  • 145100058870
    $9.00
    MOUNT SADDLE M8 - 5100058870×1
  • 151000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×6
  • 161000366591
    $0.69
    P-CLIP 3/4 VINYL COAT - 1000366591×4
  • 175100079203Not stocked
    BLOCK HOSE×4
  • 185100079204Not stocked
    PLATE CLAMP×2
