RTD-SC4 TRENCH ROLLER

RT-SC4 Voltage Regulator Diagram

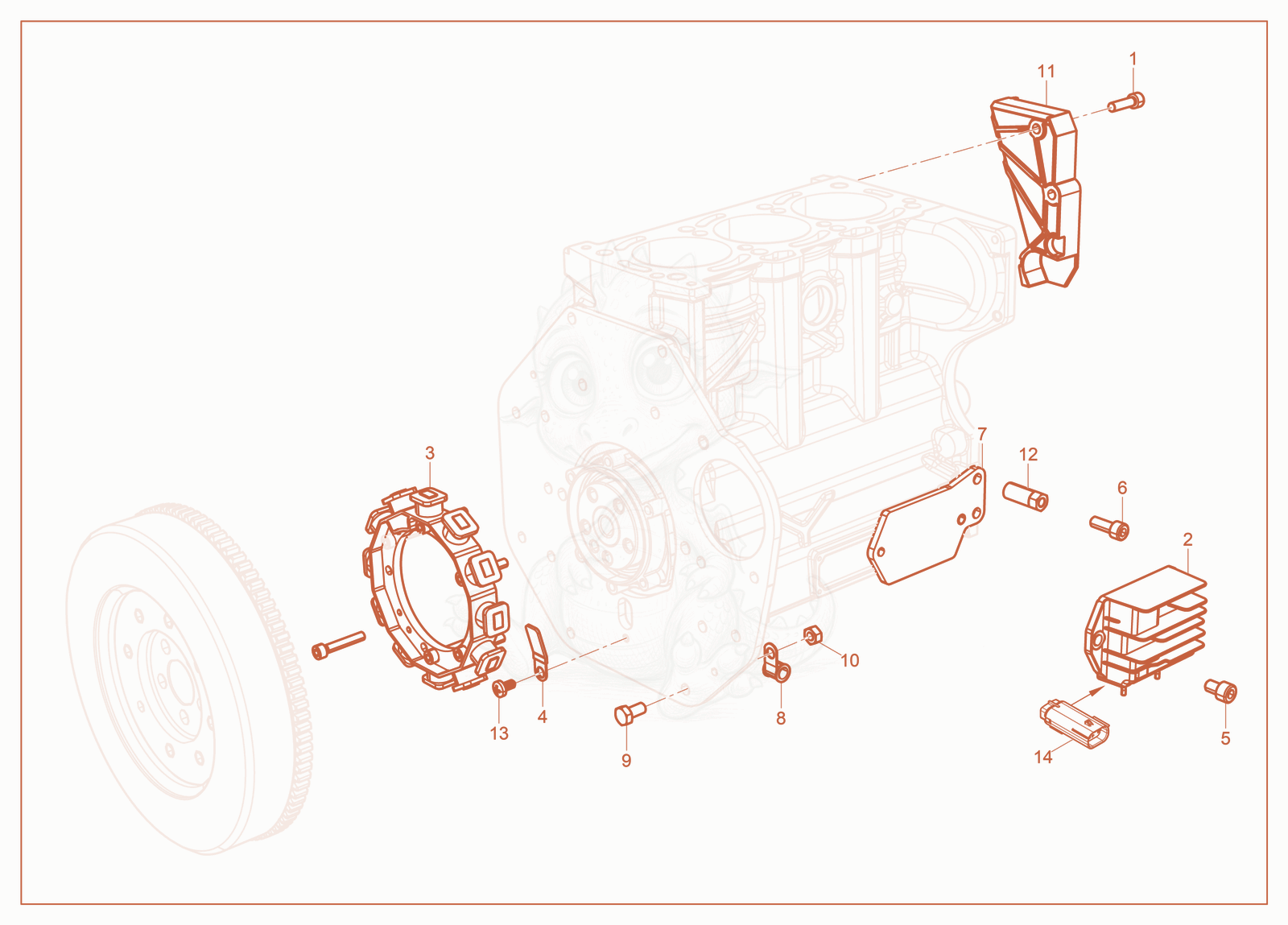

Exploded parts diagram of the Voltage Regulator of a Wacker Neuson RT-SC4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000159476
    $2.00
    SCREW M8 X 1.25 X 30 - 5000159476×2
  • 25200000154
    $400.53
    REGULATOR-VOLTAGE, 12V-30A - 5200000154×1
  • 35000159446
    $305.06
    TATOR-VOLTAGE - 5000159446×1
  • 45200023968Not stocked
    Plate×1
  • 55100080878Not stocked
    SCREW×2
  • 65100045241
    $2.00
    SCREW - 5100045241×2
  • 75100080873Not stocked
    PLATE×1
  • 85000209002
    $6.19
    Clamp - 5000209002×1
  • 95000084156
    $1.54
    SCREW M8 X 16 - 5000084156×1
  • 105000082140
    $1.54
    NUT M8 - 5000082140×1
  • 115000159283
    $263.59
    flange - 5000159283×1
  • 125200000140
    $39.42
    Nut-M8 Tall,Voltage Regulator - 5200000140×2
  • 135000206276
    $1.54
    Screw - 5000206276×1
  • 141000108638Not stocked
    pin contact×1
  • 145100081523Not stocked
    CONNECTOR MOLEX 19433-0013×1
