RTD-SC4 TRENCH ROLLER

RT-SC4 Frame Diagram

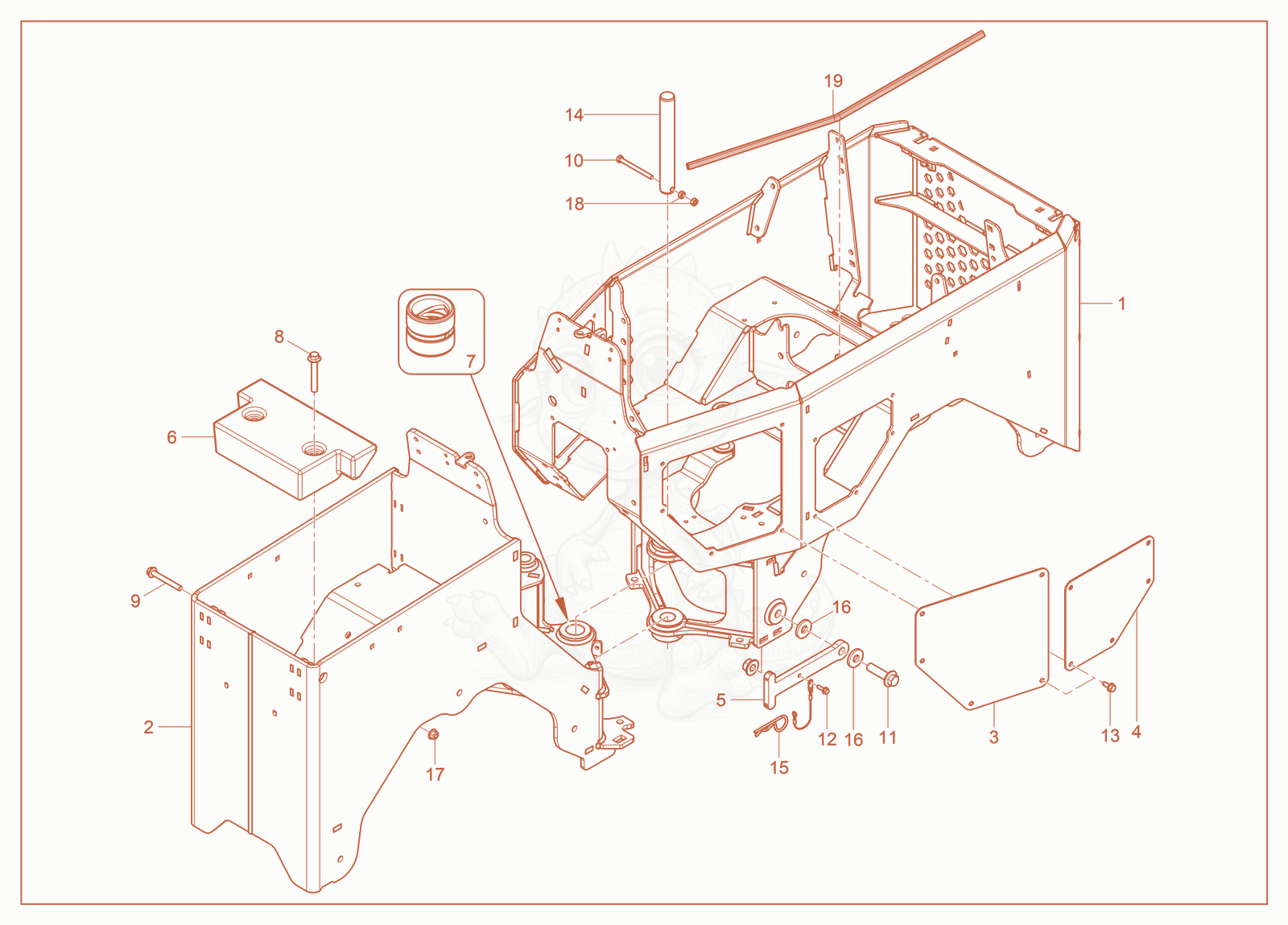

Exploded parts diagram of the Frame of a Wacker Neuson RT-SC4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100066606Not stocked
    CHASSIS RT FRONT×1
  • 25100066607Not stocked
    CHASSIS RT REAR×1
  • 35100071582Not stocked
    COVER ACCESS×2
  • 45100078293Not stocked
    COVER FILTER×1
  • 55100066645Not stocked
    LOCK ARM×1
  • 65100071911Not stocked
    WEIGHT REAR×1
  • 75100075674Not stocked
    WEAR BUSHING×2
  • 81000343306Not stocked
    Bolt×2
  • 95100078046Not stocked
    SCREW-M10x80-HEX.FLG.HD-8.8-C16×2
  • 105100077808Not stocked
    BLT DIN931-M8x90-8.8 C16×1
  • 115100077920Not stocked
    Screw×1
  • 125100062014
    $0.15
    SCREW-M6X20-HEX.FLG.HD-8.8-ZNC - 5100062014×1
  • 135100061318
    $0.50
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×15
  • 145100066667Not stocked
    PIN PIVOT×1
  • 155002005276
    $0.99
    PIN 3-9/16 LONG,COTTER - 5002005276×1
  • 165000031121
    $1.60
    WASHER, NYLON - 5000031121×2
  • 175100078048Not stocked
    Nut×2
  • 181000343276Not stocked
    Flange nut×1
  • 195100078047Not stocked
    NUT-M8-HEX.HD-8-C16×2
