RTD-SC4 TRENCH ROLLER

RT-SC4 Cylinder Head Diagram

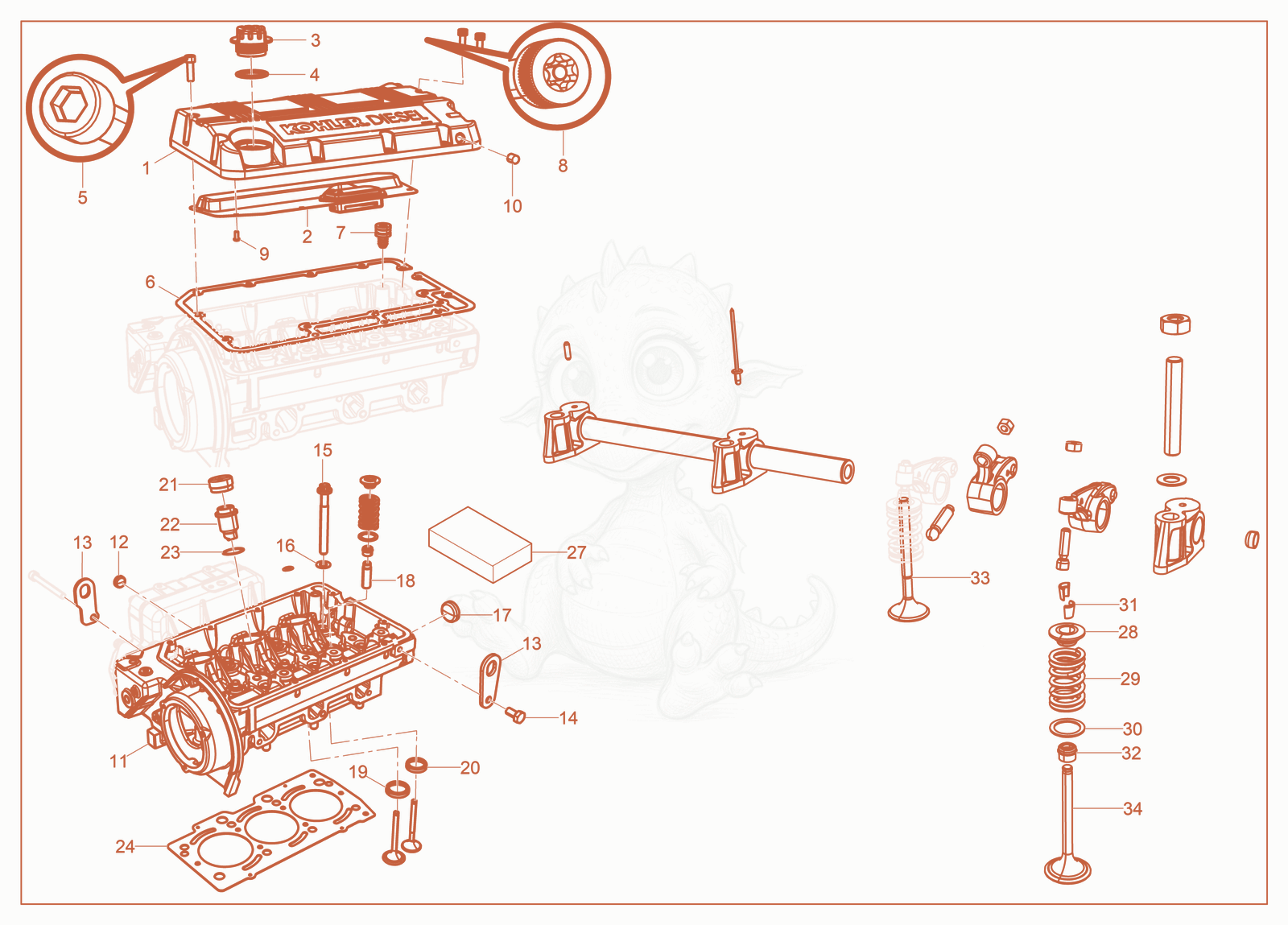

Exploded parts diagram of the Cylinder Head of a Wacker Neuson RT-SC4, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100080885Not stocked
COVER×1
25000159305
$172.03
BAFFLE - 5000159305×1
35000210347
$27.94
CAP-OIL FILL SCREW - 5000210347×1
45000206208Not stocked
O-ring×1
55000215541
$2.32
SCREW M6 X 20 - 5000215541×10
65000160205
$40.88
GASKET - 5000160205×1
75000159308
$10.34
CONNECTOR-RUBBER - 5000159308×1
85000215544
$1.54
Screw - 5000215544×2
95200015519Not stocked
Rivet×9
105000159455
$7.12
PLUG 8 DIA. - 5000159455×1
115000160388
$2,263.69
cylinder head - 5000160388×1
125000159449
$1.90
PLUG-EXPANSION 18mm - 5000159449×2
135000215524
$6.19
BRACE-LIFTING - 5000215524×2
145000084156
$1.54
SCREW M8 X 16 - 5000084156×1
155000159479
$11.90
BOLT - 5000159479×8
165000159350
$3.10
washer - 5000159350×8
175000082335
$4.92
PLUG - 5000082335×1
185000159303
$12.94
GUIDE-VALVE - 5000159303×6
195000160381
$34.40
VALVE GUIDE-INTAKE - 5000160381×3
205000160382
$33.64
VALVE GUIDE-EXHAUST - 5000160382×3
215000159285
$19.94
nut - 5000159285×3
225000215494
$3.62
Spacer - 5000215494×9
235000160380
$309.14
BOWL-PRECOMBUSTION CHAMBER - 5000160380×3
245000160369
$278.10
GASKET-HEAD, 1 NOTCH - 5000160369×1
245100042194
$286.69
GASKET-CYL.HEAD 1,63MM THICK - 5100042194×1
245100042195
$281.99
GASKET-CYL.HEAD 1,53MM THICK - 5100042195×1
275000159396
$199.52
GASKET SET,CYLINDER - 5000159396×1
285000159328
$15.52
SPRING-RETAINER - 5000159328×6
295000160373
$10.59
SPRING-VALVE - 5000160373×6
305000159351
$2.84
washer - 5000159351×6
315200015522Not stocked
Locking ring×12
325000159297
$11.12
SEAL-GUIDE - 5000159297×6
335000160390
$34.66
VALVE-INTAKE - 5000160390×3
345000160392
$49.16
VALVE-EXHAUST - 5000160392×3
