RT560 CC-CE TRENCH ROLLER

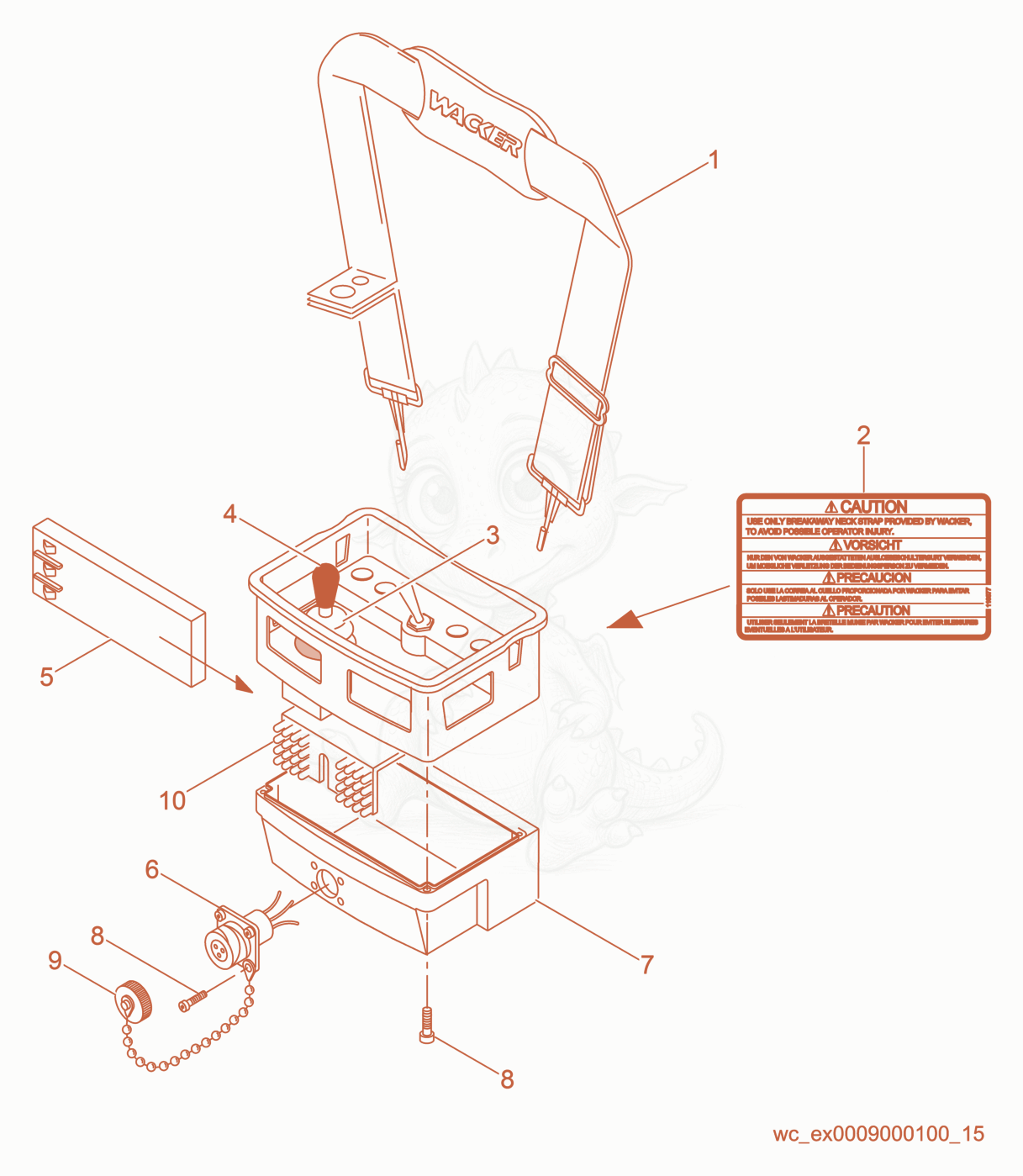

RT560 Control Box Diagram

Exploded parts diagram of the Control Box of a Wacker Neuson RT560, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5000117950
    $2,231.68
    MODULE-TRANSMITTER - 5000117950×1
  • 15000114783
    $93.91
    STRAP-NECK COMBI CONT - 5000114783×1
  • 25000116677Not stocked
    Label×1
  • 35000114782
    $41.65
    BELLOWS-RUBBER BOOT - 5000114782×1
  • 45000117183
    $11.65
    KNOB-JOYSTICK,SHORT - 5000117183×1
  • 55100000799
    $450.22
    Battery - 5100000799×1
  • 65000118346
    $237.30
    CONNECTOR-3 WIRE,QUCK-TURN - 5000118346×1
  • 75000114780
    $595.56
    HOUSING-LOWER CASE - 5000114780×1
  • 85000117185
    $17.97
    SCREW-CONNECTOR - 5000117185×8
  • 95000117184
    $70.43
    CAP-CONNECTOR - 5000117184×1
  • 105000157256
    $1,625.66
    CONTROL-ELECTRONIC MAIN - 5000157256×1
