RT560 CC-CE TRENCH ROLLER

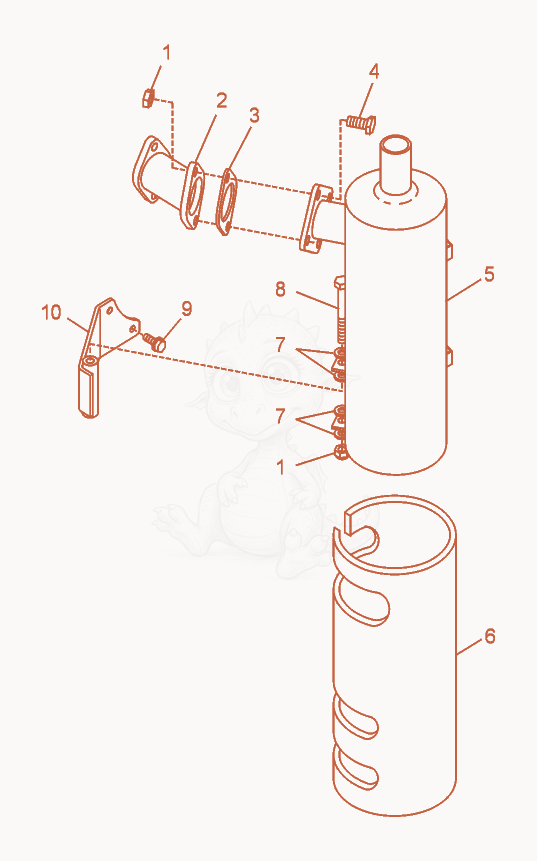

RT560 Muffler Diagram

Exploded parts diagram of the Muffler of a Wacker Neuson RT560, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000033356
    $0.13
    NUT-LOCK VM8 HEX - 5000033356×4
  • 25000086251
    $225.56
    ADAPTER-MUFFLER P-5000112007 - 5000086251×1
  • 35000063708
    $9.06
    GASKET-EXHAUST SILENCER - 5000063708×1
  • 45000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×2
  • 55000111989
    $769.81
    Muffler Exhaust 5000111989×1
  • 65000111968
    $260.23
    COVER-MUFFLER,THERMAL(LOM) - 5000111968×1
  • 75000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×2
  • 85000011312
    $0.43
    SCREW M8 X 100 HX.HD. - 5000011312×1
  • 95000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×1
  • 105000086252
    $292.31
    BRACKET-MUFFLER SUPPORT - 5000086252×1
