RT560 CC-CE TRENCH ROLLER

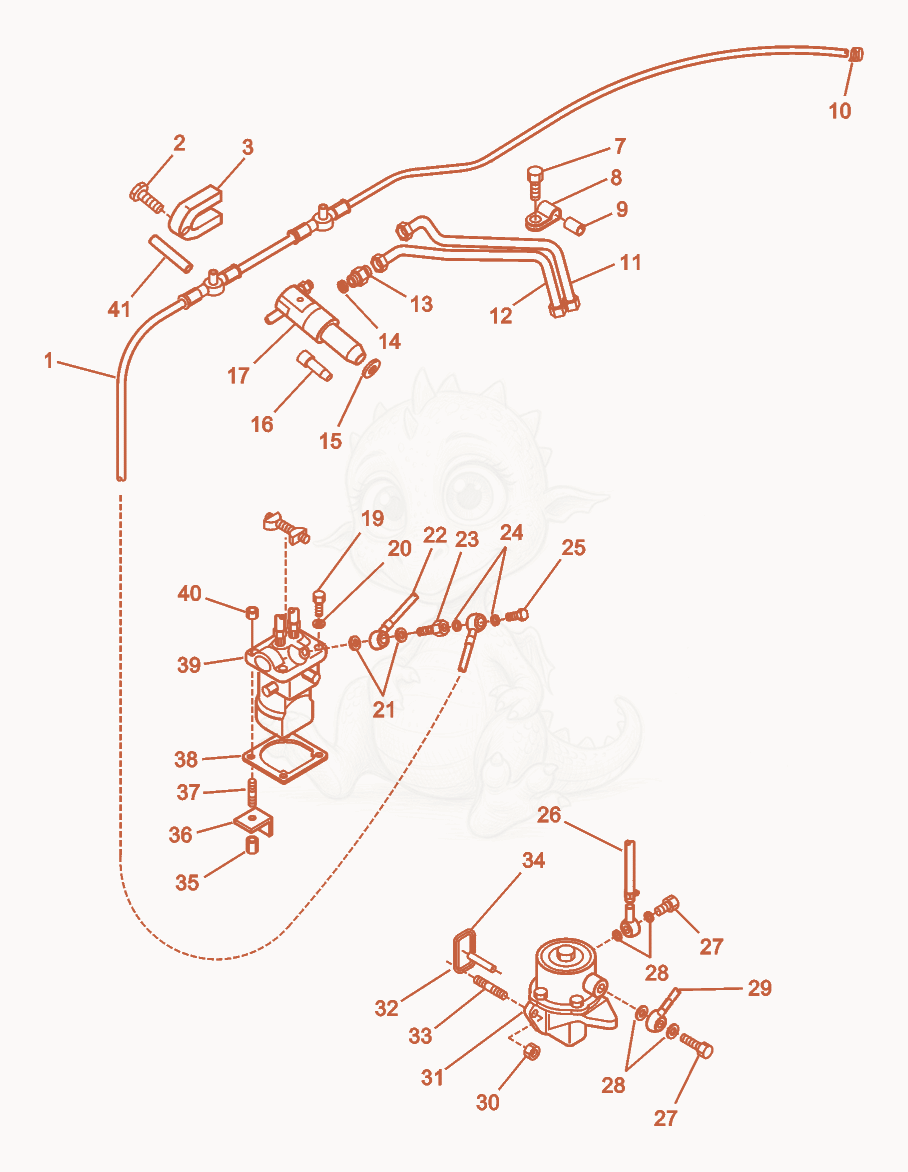

RT560 Fuel System Diagram
- HOSE-RETURN,FUEL - 5000151011×1
- SCREW M6 X 45 - 5000084147×2
- flange - 5000151009×2
- SCREW M8 X 12 - 5000084163×2
- Clamp - 5000063570×2
- COVER-RUBBER - 5000063706×2
- CLAMP-HOSE - 5000114073×1
- PIPE-PRESSURE - 5000151013×1
- PIPE-PRESSURE - 5000151012×1
- LINK-CONNECTION - 5000082278×2
- 145000082177Not stockedGasket×2
- SEAL-NOZZLE,.5MM - 5000151004×2
- SEAL-NOZZLE,1.0MM - 5000151005×1
- SEAL-NOZZLE,1.5MM - 5000151006×1
- SEAL-NOZZLE,2.0MM - 5000151007×1
- SEAL-NOZZLE,2.5MM - 5000151008×1
- JET-NOZZLE - 5000151003×2
- VALVE-INJECTOR - 5000151002×2
- Bolt - 5000083671×3
- Washer - 5000082292×3
- WASHER-COPPER - 5000082184×4
- HOSE-INJECTION PUMP - 5000115389×1
- BOLT 12MM,INJECTION PUMP - 5000115381×1
- SEAL-RING - 5000082182×2
- FITTING-BANJO BOLT - 5000082104×1
- HOSE-OUTLET,LIFT PUMP - 5000115386×1
- FITTING-BANJO BOLT - 5000082105×3
- Copper washer D14/10.2 1 - 5000082183×8
- HOSE-INLET,LIFT PUMP - 5000115387×1
- NUT-FLANGED - 5000063700×2
- PUMP-FUEL - 5000110758×1
- O-RING - 5000110759×1
- STUD M8 X 20 (32) - 5000082266×2
- Pin - 5000063690×1
- nut - 5000119520×1
- LEVER-STOP,LIMITER - 5000119521×1
- SHIM-0.1MM - 5000063652×1
- SCREW-GOVERNOR ADJUSTMENT - 5000119522×1
- SHIM-0.1MM - 5000063652×1
- SHIM-0.5MM - 5000063653×1
- GASKET 0.05MM - 5000084233×1
- PUMP-INJECTION - 5000096406×1
- NUT M8 - 5000082140×1
- STUD - 5000151010×2
