RT560 CC-CE TRENCH ROLLER

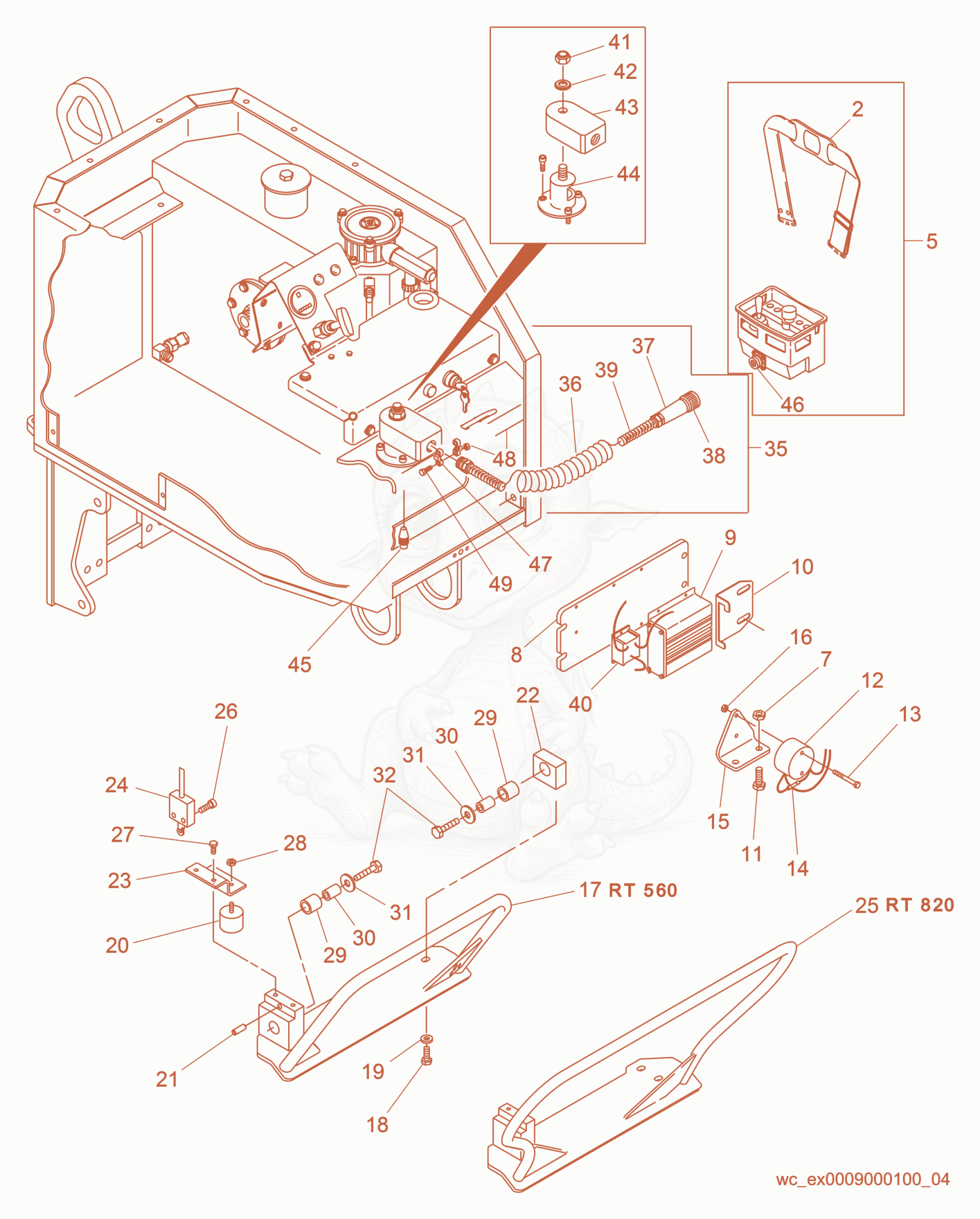

RT560 Safety Bar/Control Box Diagram
- STRAP-NECK COMBI CONT - 5000114783×1
- MODULE-TRANSMITTER - 5000117950×1
- NUT-LOCK M10 HEX. - 5000010365×2
- PLATE-DECODER MOUNTING - 5000115913×1
- 95000115880Not stockedDecoder module×1
- SCREW M4 X 20 HX.HD. - 5000011486×4
- CLIP-PLUG - 5000086568×1
- SCREW M10 X 25 HX.HD. - 5000011440×2
- SWITCH-ASSY,MERCURY - 5000086553×1
- SCREW M6 X 55 HX.HD - 5000011332×2
- TERMINAL-SPLICE 22-18,INS - 5000082940×1
- BRACKET-MERCURY SWITCH - 5000086552×1
- NUT-LOCK M6 HEX. - 5000010368×2
- BAR-REVERSE TRAVEL SUPPRESSION - 5000086495×1
- SCREW M10 X 25 HX.HD. - 5000011440×2
- WASHER B10.5 FLAT - 5000010621×2
- SHOCKMOUNT 40 X 30-55SH,FORM D - 5000032641×2
- PIN 3/8 X 1,DOWEL - 5000025667×1
- HUB-PIVOT,R.H. - 5000086494×1
- PLATE-SPRING P-5000112006 - 5000114102×1
- SWITCH-ASSY,LIMIT - 5000086554×1
- BAR-REVERSE TRAVEL SUPPRESS P-5000112007 - 5000087128×1
- SCREW M5 X 20 SOC.HD. - 5000017908×2
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
- NUT-LOCK M8 HEX - 5000010367×2
- BUSHING-NYLON - 5003007042×2
- BUSHING-HANDLE MOUNTING - 5000029001×2
- WASHER-STEEL,FLAT - 5000026025×2
- SCREW M12 X 50 HX.HD. - 5000011301×2
- CABLE-CONTROL,LONG - 5000115698×1
- CABLE-CONTROL,36 RETRACTED - 5000088701×1
- ADAPTER-BUSHING,CORD - 5000088821×1
- CONNECTOR-COUPLING - 5000116889×1
- CLAMP-CORD,STRAIN RELIEF,BLACK - 5000089676×1
- MODULE-REVERSE POLARITY - 5000113146×1
- SCREW M4 X 20 HX.HD. - 5000011486×4
- NUT-LOCK M12X1.75 HEX - 5000010366×1
- WASHER B13 FLAT - 5000010620×1
- MOUNT-CONTROL CABLE - 5000115576×1
- PIVOT - 5000115575×1
- NUT-LOCK M6 HEX. - 5000010368×3
- SCREW M6 X 20 SOC.HD. - 5000011551×3
- PLUG-SIGNAL GROUNDING - 5000088277×1
- CONNECTOR-3 WIRE,QUCK-TURN - 5000118346×1
- CLAMP HALF-NYLON,.345 ID,BROWN - 5000076949×2
- NUT-LOCK M5 HEX. - 5000010369×2
- SCREW M5X25 8.8,SOC - 5000117495×2
