RTLx-SC3 - Smooth Drum

RTLX-SC3 Voltage Regulator Diagram

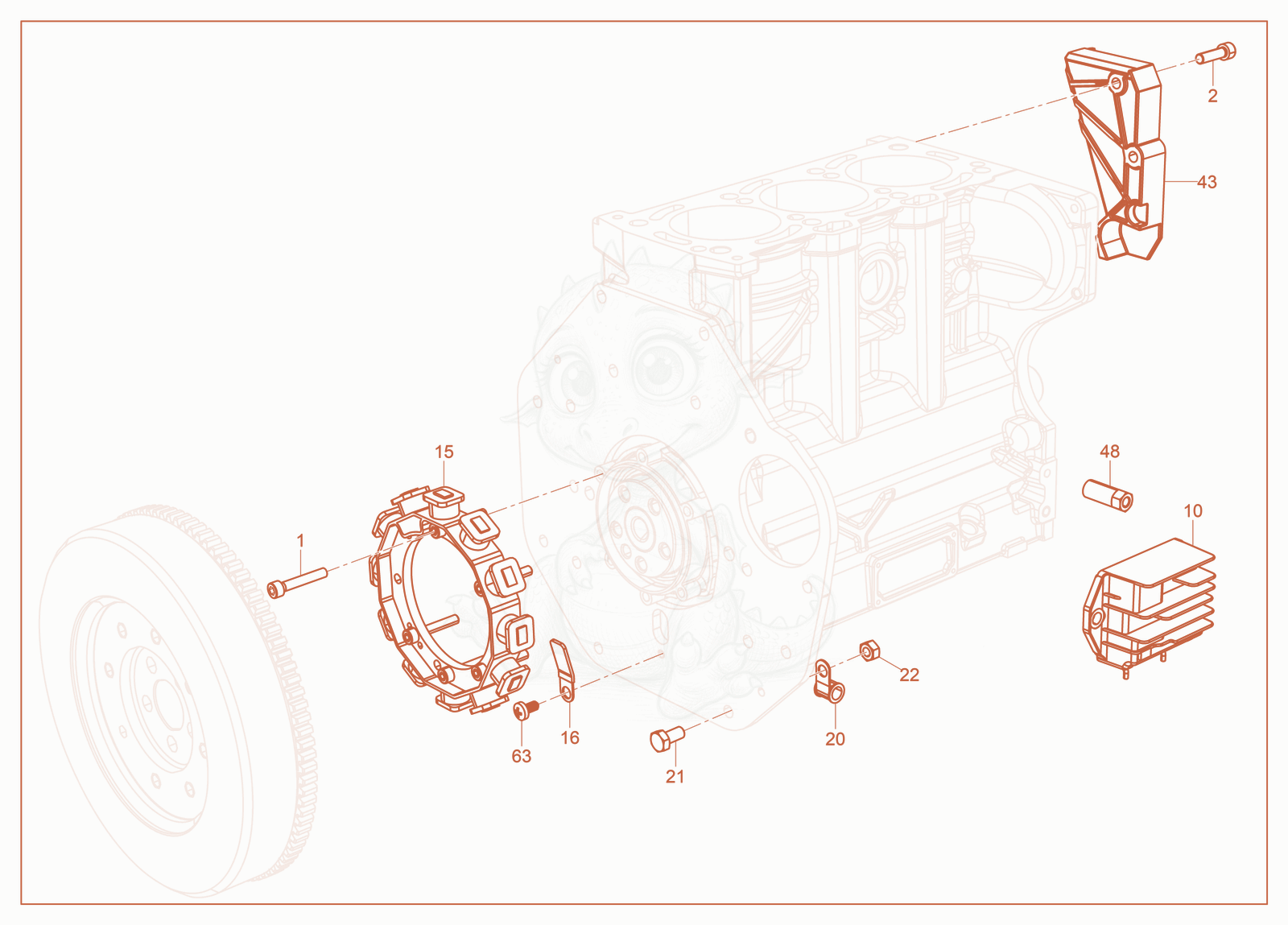

Exploded parts diagram of the Voltage Regulator of a Wacker Neuson RTLX-SC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200023965Not stocked
    Screw×5
  • 25000159476
    $2.00
    SCREW M8 X 1.25 X 30 - 5000159476×2
  • 35200023967Not stocked
    Alternator support×1
  • 105200000154
    $400.53
    REGULATOR-VOLTAGE, 12V-30A - 5200000154×1
  • 155000159446
    $305.06
    TATOR-VOLTAGE - 5000159446×1
  • 165200023968Not stocked
    Plate×1
  • 205000209002
    $6.19
    Clamp - 5000209002×1
  • 215000084156
    $1.54
    SCREW M8 X 16 - 5000084156×1
  • 225000082140
    $1.54
    NUT M8 - 5000082140×1
  • 435000159283
    $263.59
    flange - 5000159283×1
  • 485200000140
    $39.42
    Nut-M8 Tall,Voltage Regulator - 5200000140×2
  • 635000206276
    $1.54
    Screw - 5000206276×1
