RTLx-SC3 - Smooth Drum

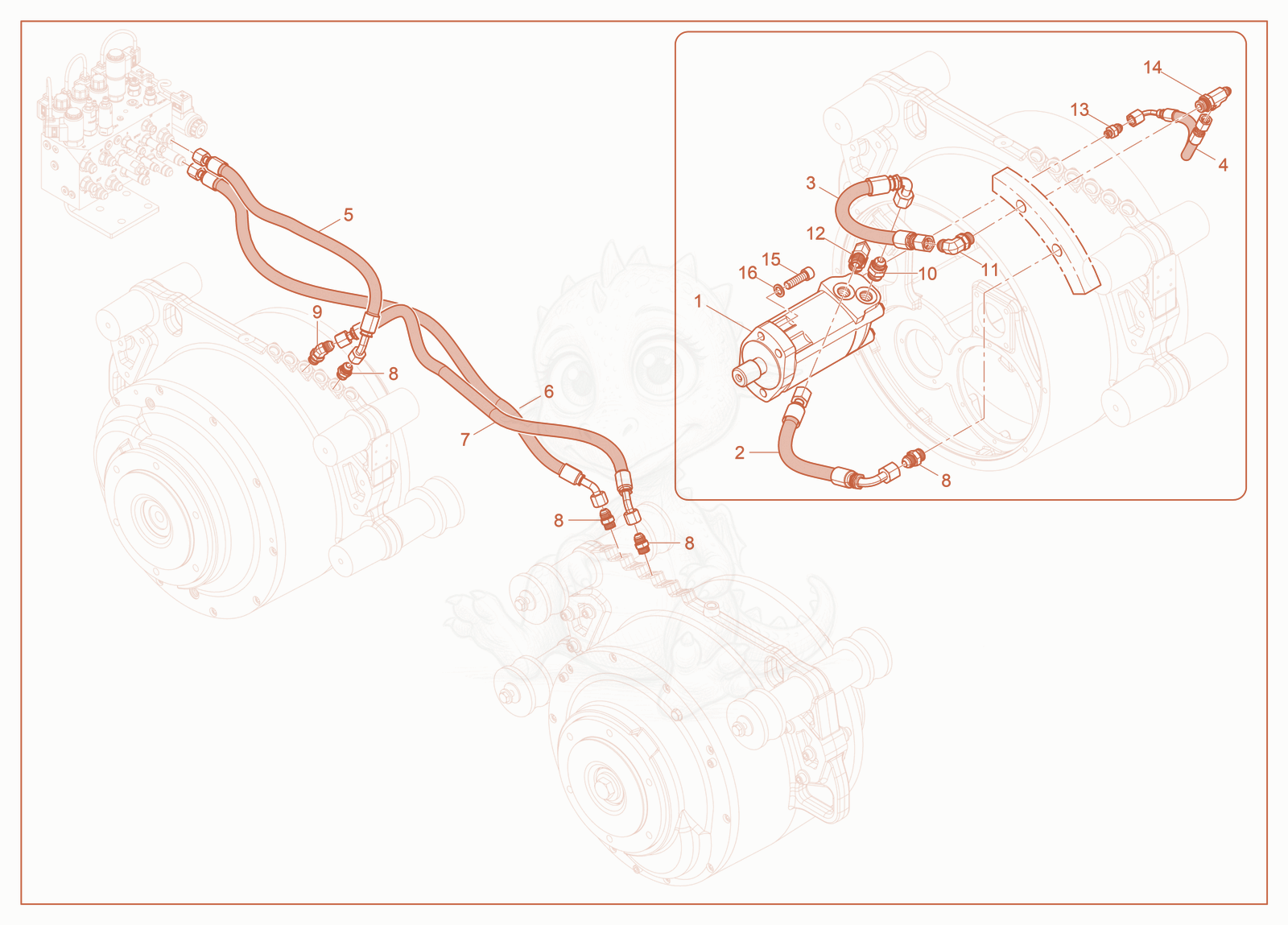

RTLX-SC3 Drive Motor Diagram

Exploded parts diagram of the Drive Motor of a Wacker Neuson RTLX-SC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000182756
    $429.01
    KIT-SEAL,HI PSI - 5000182756×1
  • 15000181899
    $1,079.38
    MOTOR-DRIVE W/HI PRESS SS - 5000181899×1
  • 25100060227
    $27.76
    HOSE ASSEMBLY - 5100060227×1
  • 35100060228
    $29.88
    HOSE ASSEMBLY - 5100060228×1
  • 45100056990
    $19.60
    HOSE ASSEMBLY - 5100056990×1
  • 55100056992
    $43.44
    HOSE ASSEMBLY - 5100056992×1
  • 65100056980
    $57.61
    HOSE ASSEMBLY - 5100056980×1
  • 75100056984
    $49.06
    HOSE ASSEMBLY - 5100056984×1
  • 81000343335
    $2.38
    FITTING HYD 08MB-08MJ - 1000343335×4
  • 95100056038
    $3.26
    FITTING HYD 08MB-08MJ45 - 5100056038×1
  • 101000343325
    $7.89
    FITTING HYD 10MB-08MJ - 1000343325×1
  • 111000440161
    $5.80
    FITTING HYD 08MB-08MJ90 - 1000440161×1
  • 121000343326Not stocked
    Elbow fitting×1
  • 131000365717Not stocked
    Straight fitting×1
  • 141000424279
    $9.53
    FITTING HYD 08MB-06MJ-06MJ - 1000424279×1
  • 155100054661
    $3.58
    SCREW-M12x40-SOC.HD-10.9-ZNC-3M.2353 - 5100054661×4
  • 165000010740
    $0.23
    WASHER 13 - 5000010740×4
