RTLx-SC3 - Smooth Drum

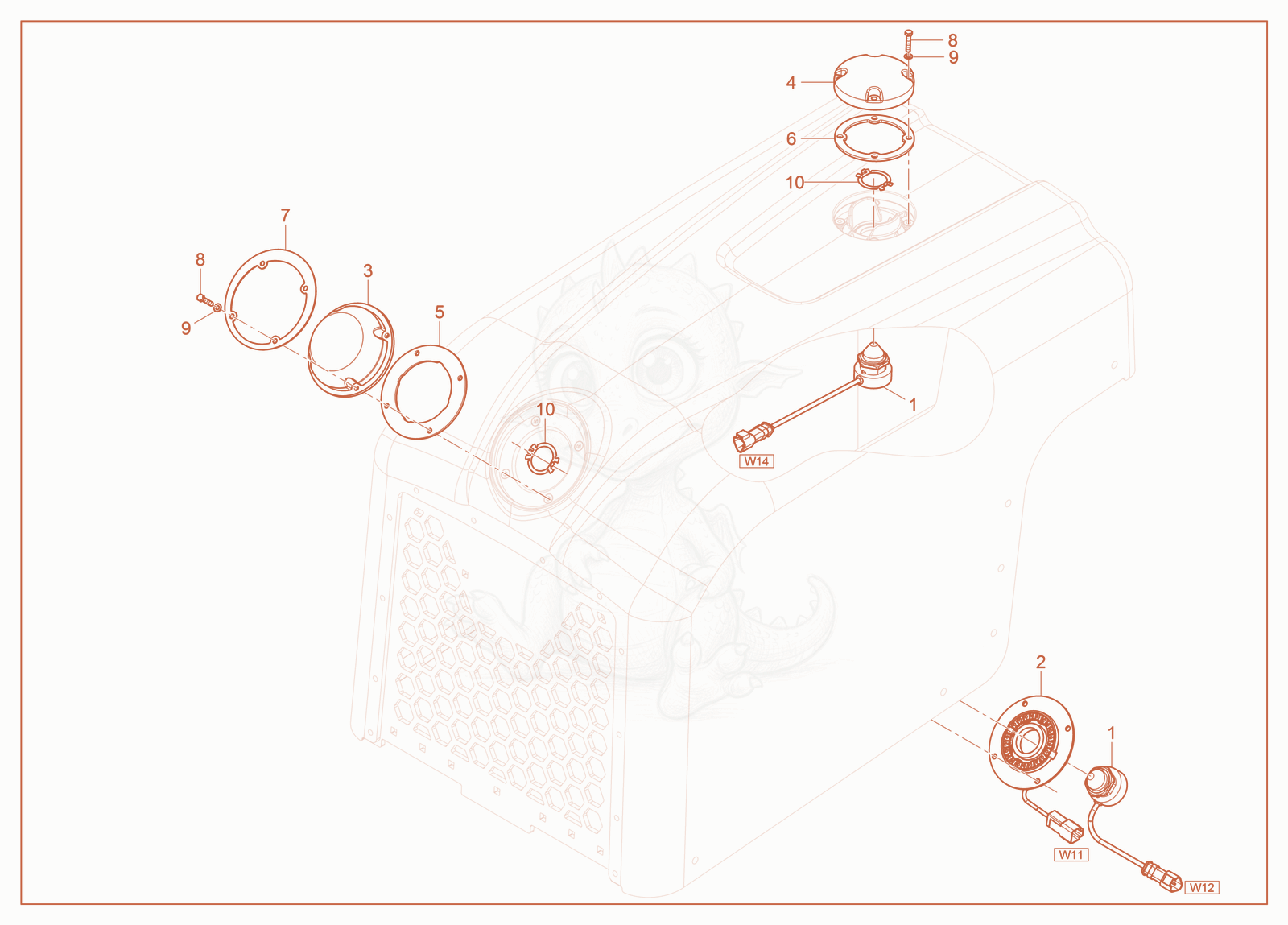

RTLX-SC3 Front Infrared Sensor Diagram

Exploded parts diagram of the Front Infrared Sensor of a Wacker Neuson RTLX-SC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000170949
    $434.64
    MODULE IR-RECEIVING EYE,SC-2 - 5000170949×2
  • 25100042609
    $123.43
    MODULE-LIGHT RING - 5100042609×1
  • 35200011851Not stocked
    Cap×1
  • 45200018182Not stocked
    Cap×1
  • 55100026695
    $1.63
    GASKET-RT F/R DOME - 5100026695×1
  • 65100026696
    $1.87
    GASKET-RT 3RD EYE DOME - 5100026696×1
  • 75200019775Not stocked
    Mount×1
  • 85000011474
    $0.18
    SCREW M5X25 HX.HD. - 5000011474×8
  • 95000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×8
  • 105000172857
    $5.03
    WASHER-NUT RETAINER - 5000172857×2
